ELECTRONIC FUEL INJECTION SYSTEM

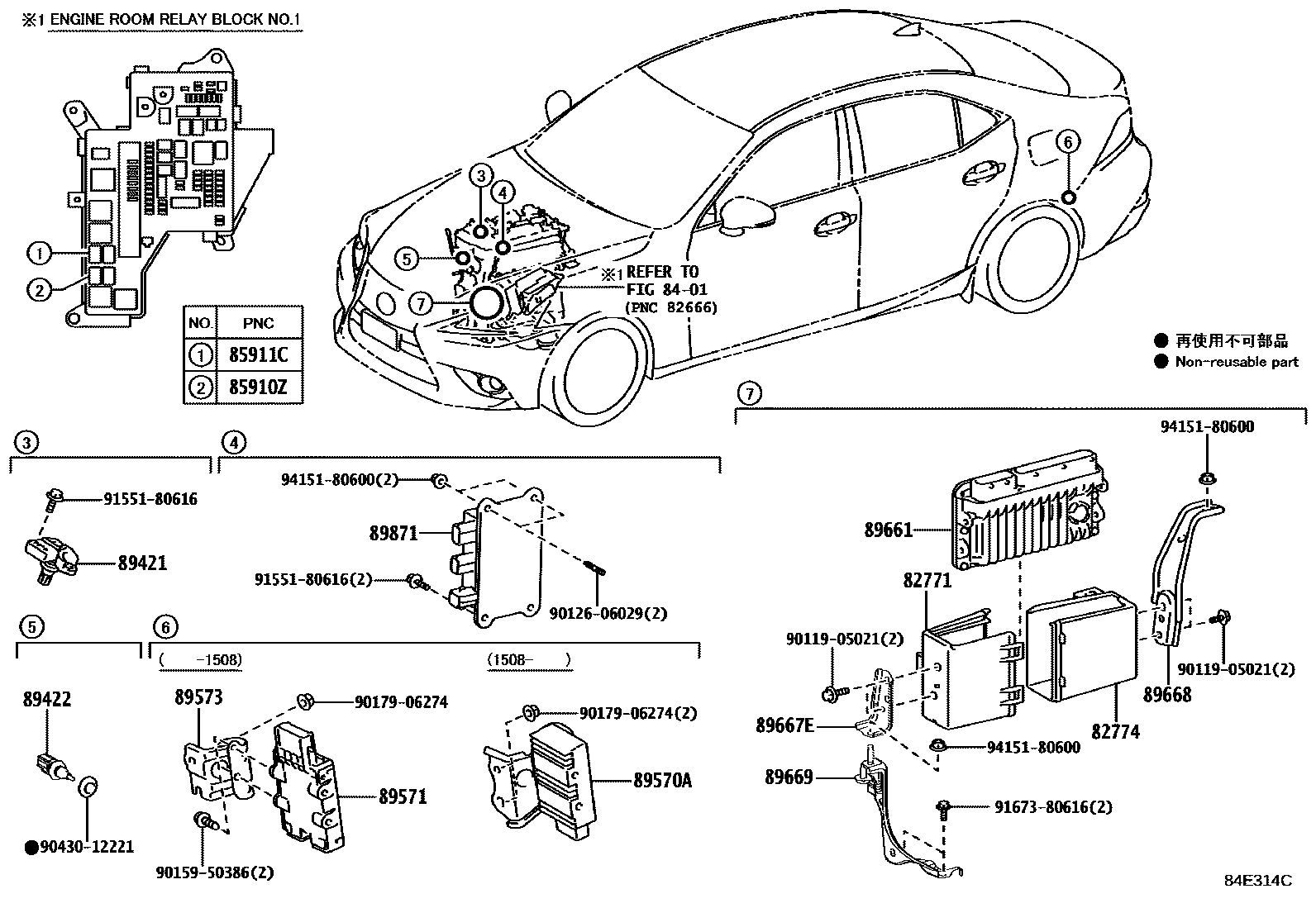

Parts diagram
82771BOX, ENGINE ROOM ECU
main82771-30060i201304-201508
main82771-30070i201304-201508
main82771-30080i202009-202110
82774COVER, ENGINE ROOM ECU
main82774-30060i201610-201710
main82774-30080i201508-201610
main82774-30090i201710-202009
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85910ZRELAY, INJECTION (FOR EFI)
main90987-02027i202111
85911CRELAY, EFI 2
main90987-02027i202111
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-47010i202111
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i202009-202110
main89422-47010i202009-202110
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-53030i201610-202009
89571COMPUTER, FUEL PUMP CONTROL
main89571-34070i201304-201508
main89571-58010i202009-202110
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-30090i201304-201508
main89573-53030i202111
89661COMPUTER, ENGINE CONTROL
main89661-53K90i201810-202009
DENSO
main89661-53N40supersedes 89661-53N30i201508-201610
INDONESIA SPEC; SOUTH AFRICA SPEC
main89661-53P30i201304-201406
main89661-53P31i201407-201508
main89661-53P40supersedes 89661-53P10i201304-201508
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
main89661-53S80i201508-201610
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main89661-53T00supersedes 89661-53U20i201508-201610
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
main89661-53T30supersedes 89661-53R60i202111
DENSO
main89661-53T90supersedes 89661-53T80i201610-201710
INDONESIA SPEC; SOUTH AFRICA SPEC
main89661-53U20i201610-201810
main89661-53U40i201610-202009
main89661-53V50supersedes 89661-53V40i201710-202009
SOUTH AFRICA SPEC
main89661-53W30i202111-202310
DENSO
main89661-53W40supersedes 89661-53W30i202009-202110
DENSO; DENSO,MALAYSIA SPEC; DENSO,SOUTH AFRICA SPEC
main89661-24F10i201909-202009
DENSO,HONGKONG SPEC
main89661-53P10i201304-201508
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main89661-53P50i201304-201508
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main89661-53P70supersedes 89661-53S50i201304-201508
TAIWAN SPEC
main89661-53P80supersedes 89661-53S30i201304-201508
SINGAPORE SPEC; THAILAND SPEC
main89661-53P90supersedes 89661-53S30i201304-201310
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
main89661-53R60supersedes 89661-53T30i202009-202110
DENSO; DENSO,ARGENTINA SPEC
main89661-53S30supersedes 89661-53S50i201610-202009
TAIWAN SPEC
main89661-53S40supersedes 89661-53S30i201508-201608
HONGKONG SPEC; MACAU SPEC
main89661-53S50supersedes 89661-53S30i201508-201610
MALAYSIA SPEC; SOUTH AFRICA SPEC
main89661-53T20i201508-201610
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main89661-53U30i201809-202009
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main89661-53U60i201610-201809
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main89661-53U70supersedes 89661-53U20i201610-202009
BRUNEI SPEC; MALAYSIA SPEC; SOUTH AFRICA SPEC
main89661-53W60supersedes 89661-53U80i202111
DENSO; DENSO,THAILAND SPEC
main89661-53W70i202111
DENSO,PHILIPPINES SPEC; DENSO,SOUTH AFRICA SPEC
main89661-53W80supersedes 89661-53U80i202009-202110
DENSO,HONG KONG SPEC; DENSO,MACAU SPEC; DENSO,SINGAPORE SPEC; DENSO,TAIWAN SPEC
main89661-53X40i202310
DENSO,EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
main89661-53X50i202310
DENSO,EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-30300i201610-201710
main89667-30310i201610-202009
main89667-53040i201710-202009
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-30250i201304-201508
main89668-30280i201610-201710
main89668-53040i201710-202009
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
main89669-24010i202009-202110
main89669-53030i201610-202009
89871DRIVER, INJECTOR
main89871-30050i201304-201508
main89871-53010i201304-201508
9011905021
main90119-05021
9012606029
main90126-06029
9015950386
main90159-50386
9017906274
main90179-06274
9043012221
main90430-12221
9155180616
main91551-80616
9167380616
main91673-80616
9415180600
main94151-80600

23 parts on this diagram · 6 diagrams in section
