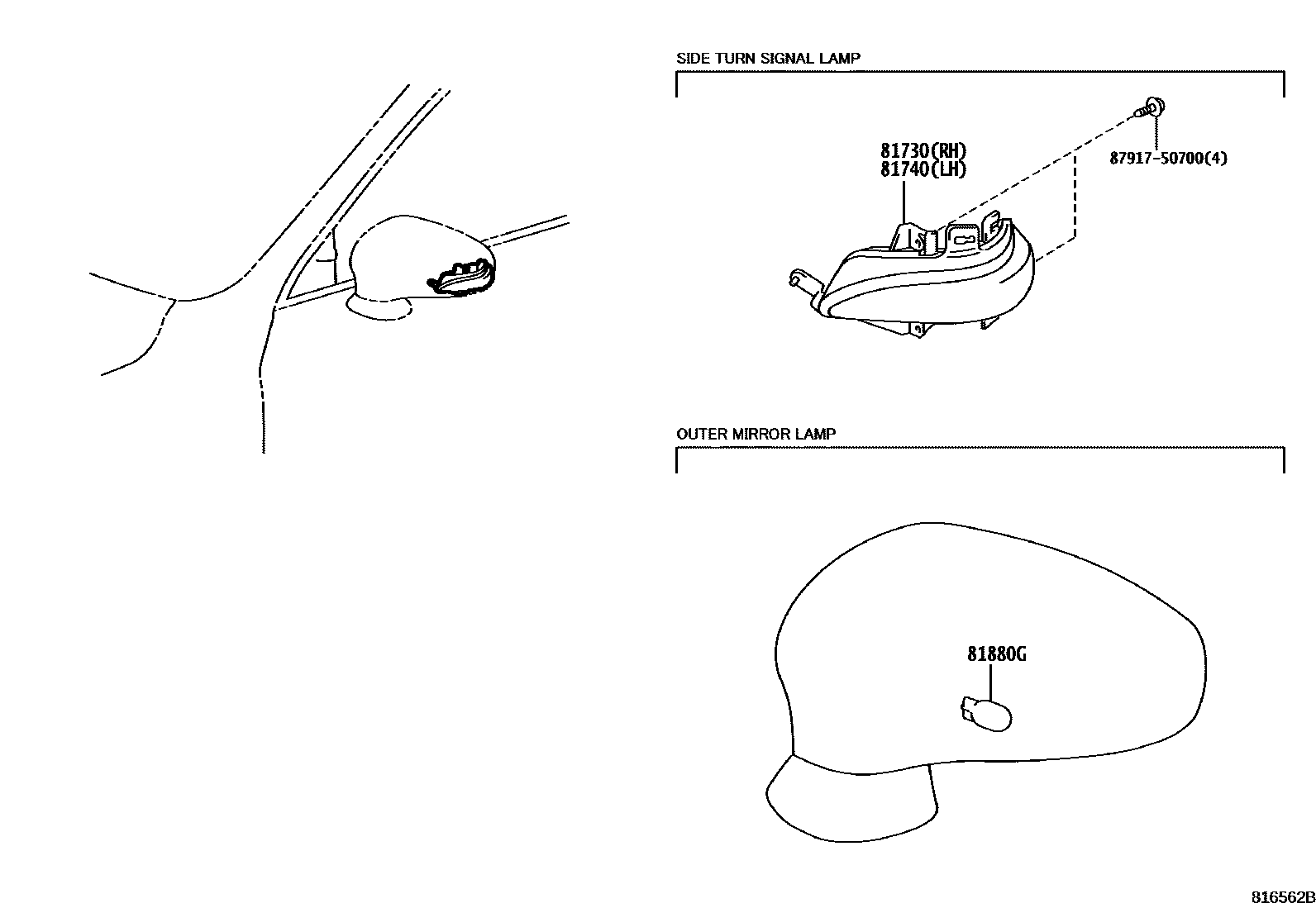

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-11020iASE30,AVE30,GSE31202009-202110

main81730-50120iASE30,AVE30,GSE31201610-202009

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-11020iASE30,AVE30,GSE31202009-202110

main81740-50090iASE30,AVE30,GSE31201508-201610

81880GBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2iAVE30,GSE3#201304-201508

12V 5W

8791750700ESCUTCHEON

main87917-50700

4 parts on this diagram · 2 diagrams in section
