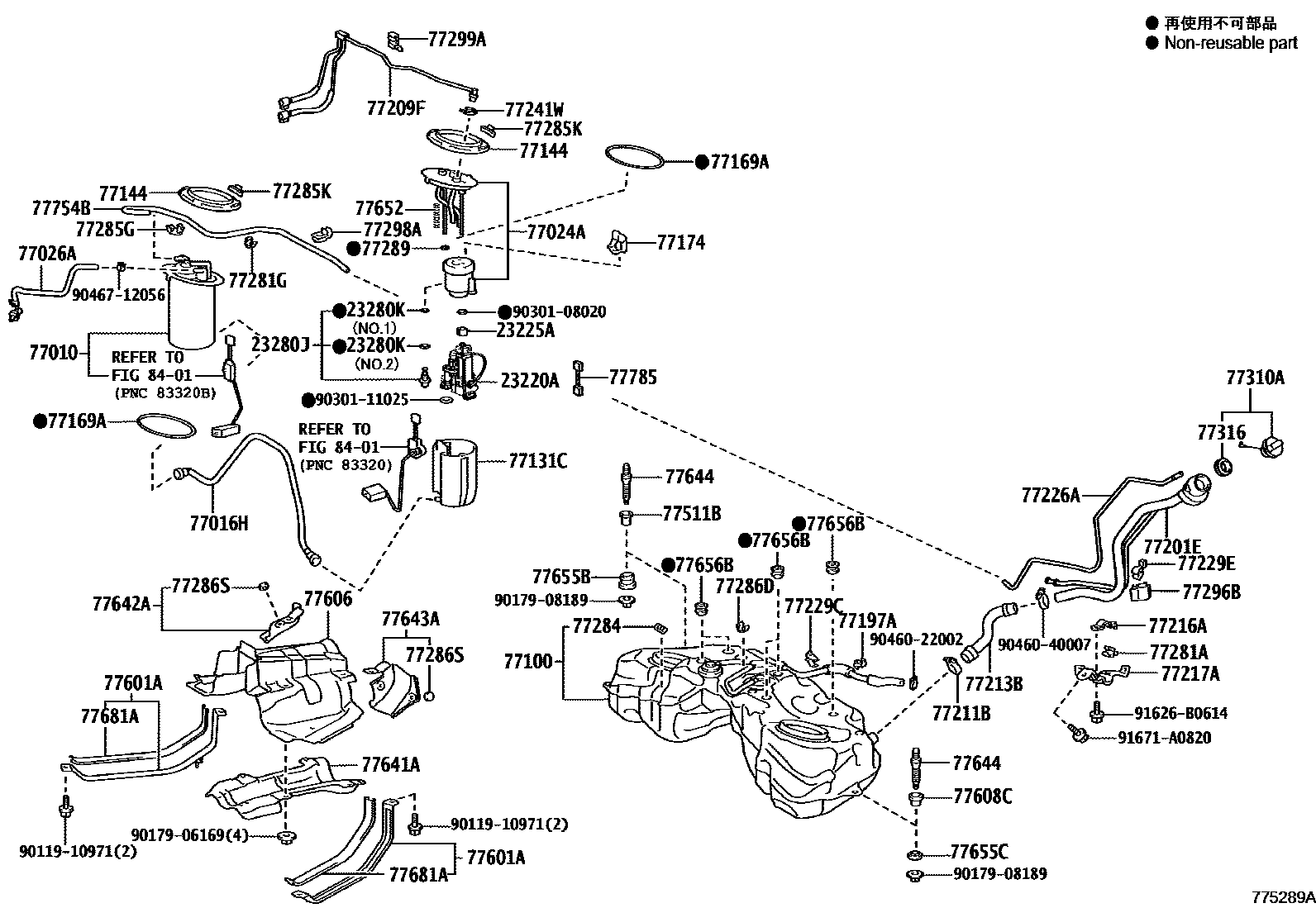

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL LID OPENER 0015 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-31480i4GRFSE..GSE30201304-201508

main23220-36040i2ARFSE..AVE30202009-202110

main23220-38041i2GRF..GSE31201610-201710

23225ASPACER, FUEL PUMP

main23225-21020i2ARFSE..AVE30201610-202009

main23225-23010i2GRF..GSE31201610-201710

main23225-31010i8ARFTS..ASE30201508-201610

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2GRF..GSE31201610-201710

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFSE,2GRF,4GRFSE..AVE30,GSE3#201304-201508

NO.1:REFER ILLUST.

main90301-15024i2ARFSE..AVE30202009-202110

NO.2:REFER ILLUST.

77010TUBE ASSY, FUEL TANK VENT

main77010-30020iAVE30,GSE31201610-201807

main77010-30021iAVE30;GSE31..LHD202111

main77010-53010iASE30201508-201610

main77010-53011iASE30201808-202009

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-30090iAVE30,GSE3#201304-201508

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30160iGSE31201508-201610

main77024-53080iAVE30201610-202009

main77024-53090iGSE30201304-201508

main77024-53100iGSE31201710-202009

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-30100iAVE30;GSE31..LHD202111

main77026-53020iASE30; AVE30..ARL; AVE30..GEN202111

HONG KONG SPEC; MACAU SPEC; SINGAPORE SPEC; TAIWAN SPEC

77100TANK ASSY, FUEL

main77001-30630iAVE30,GSE3#201304-201508

main77001-30631iASE30,AVE30,GSE31201607-201610

main77001-53150iAVE30..GEN202411

CHILE SPEC

77131CSUB-TANK, FUEL, NO.1

main77131-30063iGSE31..ARL202111-202309

main77131-30091iAVE30201304-201311

77144RETAINER, FUEL PUMP GAUGE

main77144-30030×2iASE30,AVE30,GSE31201508-201610

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030×2iASE30,AVE30,GSE31202009-202110

main77169-47040×2iAVE30..GEN202111

TAIWAN SPEC

77174SUPPORT, FUEL SUCTION, NO.1

main77174-30040iGSE31201508-201610

main77174-48020iAVE30,GSE30201304-201508

main77174-53020iGSE31201710-202009

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iAVE30,GSE3#201304-201508

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53110iASE30,AVE30,GSE31201610-202009

main77201-53160iASE30,AVE30,GSE31202009-202110

main77201-53150iAVE30..GEN202009-202110

TAIWAN SPEC

main77201-53170iAVE30..GEN202411

CHILE SPEC

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30191iGSE31201508-201610

main77209-30271iGSE30201304-201508

main77209-30350iGSE31201710-202009

main77209-53051iAVE30201610-202009

main77209-53120iASE30201508-201610

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iGSE31..LHD;ASE30,AVE30202111

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30240iAVE30,GSE3#201304-201508

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30090iGSE31..LHD;ASE30,AVE30202111

main77216-53020iAVE30..GEN202411

CHILE SPEC

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30160iASE30,AVE30,GSE31201508-201610

main77217-53030iAVE30..GEN202111

TAIWAN SPEC

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-53060iAVE30,GSE3#201304-201508

main77226-53100iGSE31..LHD;ASE30,AVE30202111-202412

main77226-53101iGSE31..LHD;ASE30,AVE30202412

77229CCLAMP, BREATHER TUBE

main77229-30100iASE30,AVE30,GSE31202009-202110

77229ECLAMP, BREATHER TUBE

main77229-30090iASE30,AVE30,GSE31201508-201610

77241WCLIP, TUBE JOINT

main77241-33011iASE30,AVE30,GSE31202009-202103

main77241-60550iGSE31..LHD;ASE30,AVE30202111

77281ACLAMP, FUEL FILLER PIPE

main77281-30110iASE30,AVE30,GSE31202009-202110

77281GCLAMP, FUEL HOSE

main77281-47050iAVE30,GSE3#201304-201508

77284CLAMP, FUEL TUBE

main77289-30120iASE30,AVE30,GSE31202009-202110

77285GCLAMP, FUEL TUBE, NO.1

main77285-30300iGSE31..ARL202111-202309

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350×2iASE30,AVE30,GSE31201610-202009

77286DCLAMP, FUEL TUBE, NO.2

main77286-30180iASE30,AVE30,GSE31202009-202110

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×4iAVE30,GSE3#201304-201508

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iASE30,AVE30,GSE31202009-202110

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-58010iAVE30,GSE3#201304-201508

77298ACLAMP, FUEL TUBE, NO.4

main77298-30200iAVE30,GSE3#201304-201508

77299ACLAMP, FUEL TUBE, NO.5

main77299-30090iAVE30,GSE3#201304-201508

77310ACAP ASSY, FUEL TANK

main77300-12020iGSE31..ARL202111-202309

main77300-52030iAVE30,GSE3#201304-201508

main77300-48020iAVE30..GEN202111

TAIWAN SPEC

77316GASKET, FUEL TANK CAP

main77316-52040iAVE30,GSE3#201304-201508

main77316-75020iAVE30..GEN202009-202110

TAIWAN SPEC

77511BBRACKET, FUEL TANK

main77511-48030iAVE30,GSE3#201304-201508

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-30190×2iASE30,AVE30,GSE31202009-202110

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-53050iASE30,AVE30,GSE31201508-201610

main77606-30210iAVE30..GEN202111

TAIWAN SPEC

77608CCUSHION SET, FUEL TANK

main77608-48010iASE30,AVE30,GSE31201508-201610

77641APROTECTOR, FUEL TANK, NO.1

main77641-30160iAVE30,GSE3#201304-201508

77642APROTECTOR, FUEL TANK, NO.2

main77642-30040iASE30,AVE30,GSE31201508-201610

77643APROTECTOR, FUEL TANK, NO.3

main77643-30030iAVE30,GSE3#201304-201508

77644BOLT, FUEL TANK

main77644-48010×2iAVE30,GSE3#201304-201508

77652CUSHION, FUEL TANK, NO.1

main77652-30090iAVE30,GSE3#201304-201508

77655BCUSHION, FUEL TANK

main77655-30080iASE30,AVE30,GSE31201508-201610

77655CCUSHION, FUEL TANK

main77655-48010iASE30,AVE30,GSE31201508-201610

77656BCUSHION, FUEL TANK, NO.6

main77656-30030×5iAVE30,GSE3#201304-201508

77681ASEAT, FUEL TANK BAND

main77681-30030×2iAVE30,GSE3#201304-201508

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-30040iASE30,AVE30,GSE31202009-202110

main77754-30041iGSE31..LHD;ASE30,AVE30202412

77785HARNESS, FUEL PUMP

main77785-30010iAVE30201610-202009

main77785-48060iGSE31201710-202009

main77785-53010iGSE31201304-201508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910971

main90119-10971

9017906169

main90179-06169

9017908189

main90179-08189

9030108020

main90301-08020

9030111025

main90301-11025

9046022002

main90460-22002

9046040007

main90460-40007

9046712056

main90467-12056

91626B0614

main91626-B0614

91671A0820

main91671-A0820

63 parts on this diagram · 15 diagrams in section
