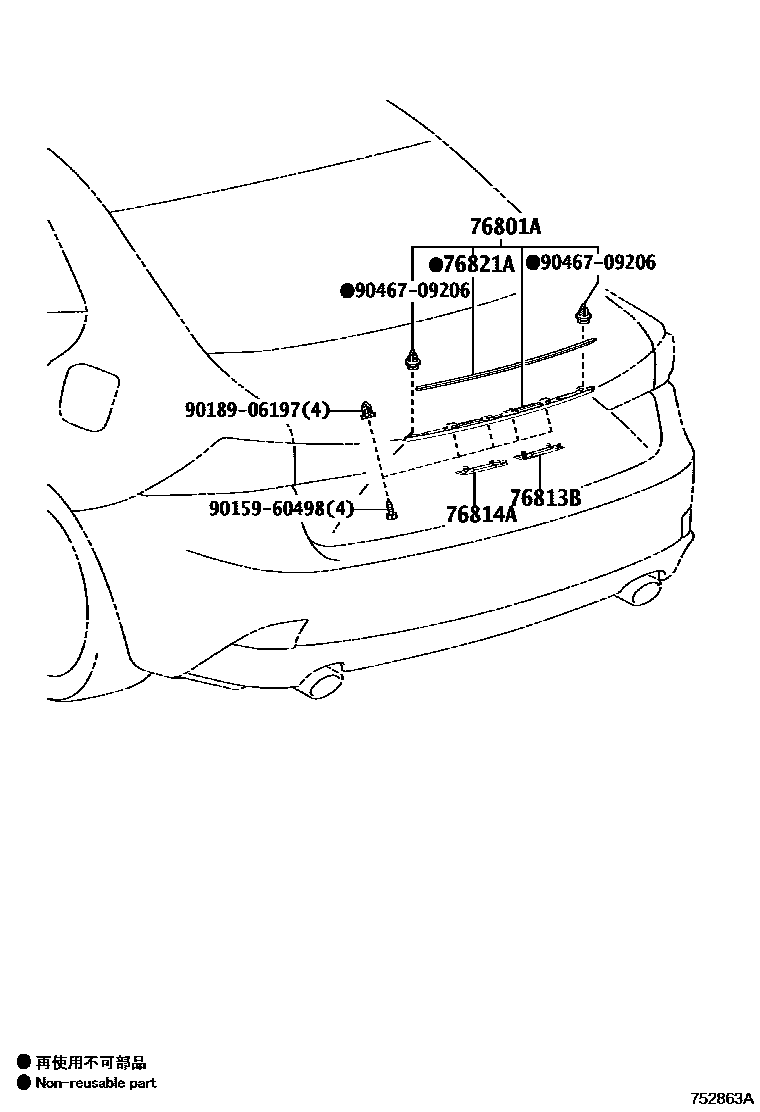

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
LAPIS LAZULI MC.,8V3
main76801-53110-A1supersedes 76801-53100-A1iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),WHITE NOVA GF.,083; BACK MONITOR-WITH(EMV & GUIDE),WHITE NOVA GF.,083; WHITE NOVA GF.,083
main76801-53110-A2supersedes 76801-53100-A2iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),SONIC QUARTZ,085; BACK MONITOR-WITH(EMV & GUIDE),SONIC QUARTZ,085; SONIC QUARTZ,085
main76801-53110-B0supersedes 76801-53100-B0iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),MERCURY GRAY MC.,1H9; BACK MONITOR-WITH(EMV & GUIDE),MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9
main76801-53110-B1supersedes 76801-53100-B1iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-201809
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),PLATINUM SILVER ME.,1J4; BACK MONITOR-WITH(EMV & GUIDE),PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4
main76801-53110-B2supersedes 76801-53100-B2iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),SONIC TITANIUM,1J7; BACK MONITOR-WITH(EMV & GUIDE),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
main76801-53110-B3supersedes 76801-53100-B3iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201809-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),SONIC SILVER,1J2; BACK MONITOR-WITH(EMV & GUIDE),SONIC SILVER,1J2; SONIC SILVER,1J2
main76801-53110-B4supersedes 76801-53100-B4iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201909-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),MANGANESE LUSTER,1K2; BACK MONITOR-WITH(EMV & GUIDE),MANGANESE LUSTER,1K2; MANGANESE LUSTER,1K2
main76801-53110-C0supersedes 76801-53100-C0iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),BLACK,212; BACK MONITOR-WITH(EMV & GUIDE),BLACK,212; BLACK,212
main76801-53110-C2supersedes 76801-53100-C2iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),GRAPHITE BLACK GF.,223; BACK MONITOR-WITH(EMV & GUIDE),GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
main76801-53110-D0supersedes 76801-53100-D0iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),RED MC.CS.,3R1; BACK MONITOR-WITH(EMV & GUIDE),RED MC.CS.,3R1; RED MC.CS.,3R1
main76801-53110-D1supersedes 76801-53100-D1iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),MADDER RED,3T2; BACK MONITOR-WITH(EMV & GUIDE),MADDER RED,3T2; MADDER RED,3T2
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),RADIANT RED CONTRAST LAYE,3T5; BACK MONITOR-WITH(EMV & GUIDE),RADIANT RED CONTRAST LAYE,3T5; RADIANT RED CONTRAST LAYE,3T5
main76801-53110-J2supersedes 76801-53100-J2iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-202009
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),HEAT BLUE CONTRAST LAYERI,8X1; BACK MONITOR-WITH(EMV & GUIDE),HEAT BLUE CONTRAST LAYERI,8X1; HEAT BLUE CONTRAST LAYERI,8X1
main76801-53110-J3supersedes 76801-53100-J3iASE30,AVE30,GSE31..ARL; ASE30,AVE30,GSE31..LHD201610-201909
BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE),DEEP BLUE MC.,8X5; BACK MONITOR-WITH(EMV & GUIDE),DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
BACK MONITOR-WITH(DISPLAY AUDIO),WHITE PEARL CS.,077; BACK MONITOR-WITH(EMV & GUIDE),WHITE PEARL CS.,077
BACK MONITOR-WITH(DISPLAY AUDIO),WHITE NOVA GF.,083; BACK MONITOR-WITH(EMV & GUIDE),WHITE NOVA GF.,083
BACK MONITOR-WITH(DISPLAY AUDIO),MERCURY GRAY MC.,1H9; BACK MONITOR-WITH(EMV & GUIDE),MERCURY GRAY MC.,1H9
BACK MONITOR-WITH(DISPLAY AUDIO),PLATINUM SILVER ME.,1J4; BACK MONITOR-WITH(EMV & GUIDE),PLATINUM SILVER ME.,1J4
BACK MONITOR-WITH(DISPLAY AUDIO),SONIC TITANIUM,1J7; BACK MONITOR-WITH(EMV & GUIDE),SONIC TITANIUM,1J7
BACK MONITOR-WITH(DISPLAY AUDIO),BLACK,212; BACK MONITOR-WITH(EMV & GUIDE),BLACK,212
BACK MONITOR-WITH(DISPLAY AUDIO),STARLIGHT BLACK GF.,217; BACK MONITOR-WITH(EMV & GUIDE),STARLIGHT BLACK GF.,217
BACK MONITOR-WITH(DISPLAY AUDIO),RED MC.CS.,3R1; BACK MONITOR-WITH(EMV & GUIDE),RED MC.CS.,3R1
BACK MONITOR-WITH(DISPLAY AUDIO),BLUE ME.,8U1; BACK MONITOR-WITH(EMV & GUIDE),BLUE ME.,8U1
BACK MONITOR-WITH(DISPLAY AUDIO),LAPIS LAZULI MC.,8V3; BACK MONITOR-WITH(EMV & GUIDE),LAPIS LAZULI MC.,8V3
BACK MONITOR-WITHOUT,SONIC QUARTZ,085; SONIC QUARTZ,085
BACK MONITOR-WITHOUT,SONIC SILVER,1J2; SONIC SILVER,1J2
BACK MONITOR-WITHOUT,MANGANESE LUSTER,1K2; MANGANESE LUSTER,1K2
BACK MONITOR-WITHOUT,GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
BACK MONITOR-WITHOUT,MADDER RED,3T2; MADDER RED,3T2
BACK MONITOR-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1; HEAT BLUE CONTRAST LAYERI,8X1
BACK MONITOR-WITHOUT,DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
BACK MONITOR-WITH(DISPLAY AUDIO),WHITE PEARL CS.,077; BACK MONITOR-WITH(EMV & GUIDE),WHITE PEARL CS.,077
BACK MONITOR-WITH(DISPLAY AUDIO),STARLIGHT BLACK GF.,217; BACK MONITOR-WITH(EMV & GUIDE),STARLIGHT BLACK GF.,217
BACK MONITOR-WITH(DISPLAY AUDIO),BLUE ME.,8U1; BACK MONITOR-WITH(EMV & GUIDE),BLUE ME.,8U1
BACK MONITOR-WITH(DISPLAY AUDIO),LAPIS LAZULI MC.,8V3; BACK MONITOR-WITH(EMV & GUIDE),LAPIS LAZULI MC.,8V3
76813BGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER RH
76814AGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER LH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
9015960498
main90159-60498
9018906197
main90189-06197
9046709206
main90467-09206
7 parts on this diagram · 2 diagrams in section
