EPC Data

FRONT SEAT & SEAT TRACK

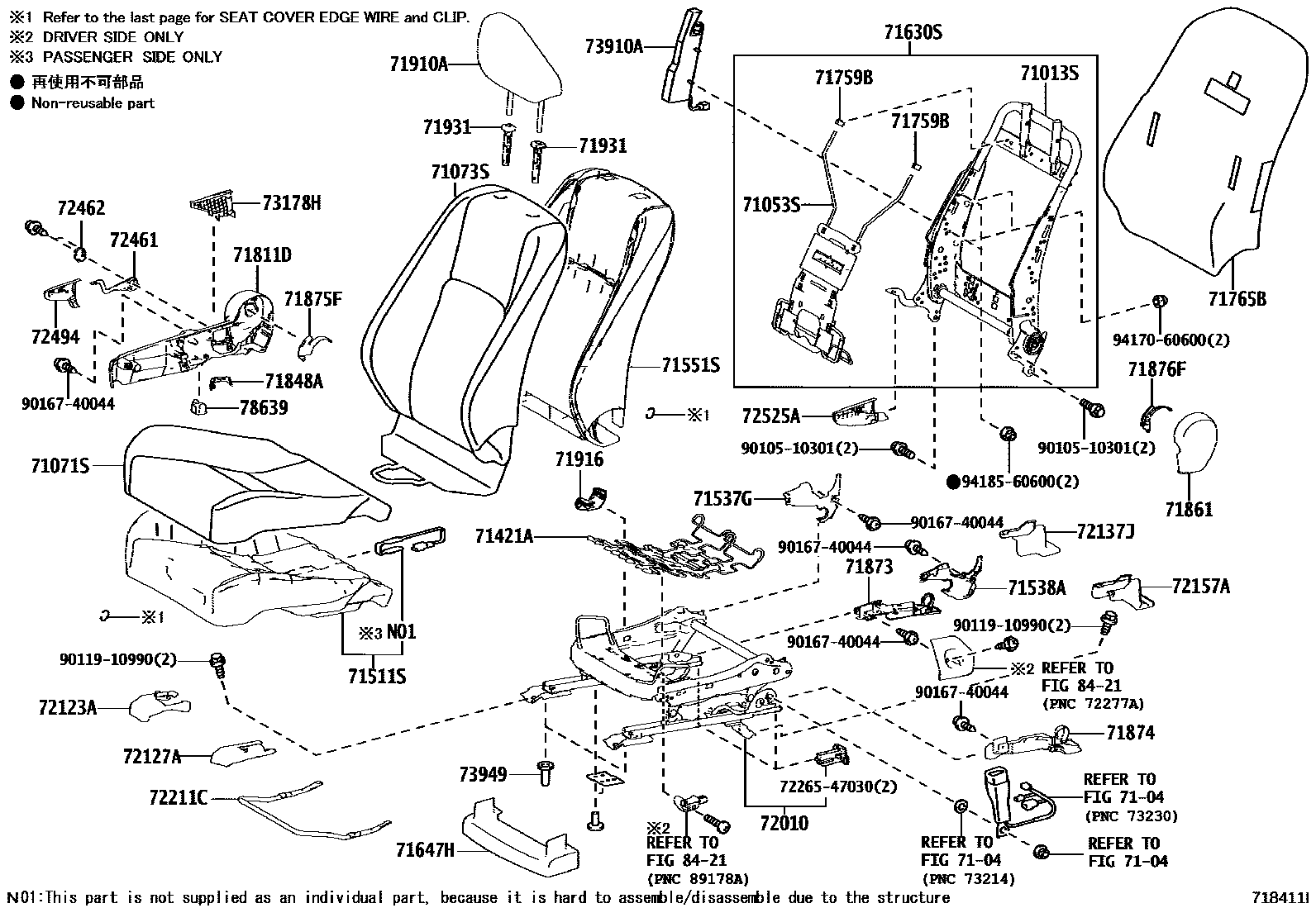

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-53040supersedes 71013-53030i201304-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)
main71013-53050i202310
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY =DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BACK MONITOR-WITH(PANOR
7104
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-76010i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-53750-B2i201610-202009
CHATEAU/LT.BROWN,TRIM1#
main71071-53750-C0i201610-202009
BLACK/LT.GRAY,TRIM2#
main71071-53750-C3i201610-202009
BLACK/RED,TRIM9#
main71071-53D50-A3i201304-201502
IVORY,TRIM0#
main71071-53D50-B4supersedes 71071-53E10-B4i201304-201407
LT.GRAY,TRIM1#
main71071-53D50-B5supersedes 71071-53E10-B5i201407-201502
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),MOON STONE,TRI
main71071-53D50-F3i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71071-53D51-A3supersedes 71071-53E11-A4i201503-201508
IVORY,TRIM0#
main71071-53D51-A4supersedes 71071-53E11-A6i201508-201610
IVORY,TRIM0#
main71071-53D51-B5supersedes 71071-53E11-B5i201503-201508
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),MOON STONE,TRI
main71071-53D51-B7i201508-201610
MOON STONE,TRIM1#
main71071-53D51-C7supersedes 71071-53E11-C9i201508-201610
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71071-53D51-F3i201503-201508
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),TOPAZ BROWM,TR
main71071-53D51-F4i201508-201610
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71071-53D52-20supersedes 71071-53E12-22i201610-201710
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71071-53D52-22i201610-201710
BLACK/RED,TRIM9#
main71071-53D52-E3i201610-201710
NOBLE BROWN/BORDEAU,TRIM4#
main71071-53D52-P0supersedes 71071-53E12-P1i201610-201710
CHATEAU/LT.BROWN,TRIM1#
main71071-53D53-25supersedes 71071-53E12-C9i201710-202009
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71071-53D53-26i201710-202009
BLACK/RED,TRIM9#
main71071-53D53-E5i201710-202009
NOBLE BROWN/BORDEAU,TRIM4#
main71071-53D53-P2supersedes 71071-53E12-P2i201710-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71071-53G40-C2i202111
BLACK,TRIM2#
main71071-53G40-D2i202111
DARK ROSE,TRIM3#
main71071-53G40-E2i202111
OCHER,TRIM4#
main71071-53D30-A8supersedes 71071-53E11-A4i201304-201502
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,IVORY,TRIM0#
main71071-53D30-B7i201304-201407
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM1#
main71071-53D30-B9i201407-201502
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),MOON STONE,TRIM1#
main71071-53D30-C7supersedes 71071-53E11-C4i201304-201502
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71071-53D30-F8i201304-201502
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),TOPAZ BROWN,TRIM5#
main71071-53D31-A8supersedes 71071-53E11-A4i201503-201508
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,IVORY,TRIM0#
main71071-53D31-A9supersedes 71071-53E11-A6i201508-201610
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,IVORY,TRIM0#
main71071-53D31-B9supersedes 71071-53E11-B5i201503-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),MOON STONE,TRIM1#
main71071-53D31-C7supersedes 71071-53E11-C4i201503-201508
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71071-53D31-C9i201508-201610
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71071-53D31-F8i201503-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),TOPAZ BROWN,TRIM5#
main71071-53D31-F9i201508-201610
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),TOPAZ BROWN,TRIM5#
main71071-53D31-P1i201508-201610
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MOON STONE,TRIM1#
main71071-53D32-22supersedes 71071-53E11-C9i201705-202009
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/LT.GRAY,TRIM2#
main71071-53D32-24i201610-202009
TAIWAN SPEC,BLACK/RED,TRIM9#
main71071-53D32-50i201610-202009
TAIWAN SPEC,TOPAZ BROWN/BLACK,TRIM5#
main71071-53D32-E3i201705-202009
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN/BORDEAU,TRIM4#
main71071-53D32-P4i201610-202009
TAIWAN SPEC,CHATEAU/LT.BROWN,TRIM1#
main71071-53D52-F5i201610-201710
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71071-53D53-F7i201710-202009
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71071-53D70-A3supersedes 71071-53D21-A4i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71071-53D70-B3supersedes 71071-53D20-B5i201304-201407
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LT.GRAY,TRIM1#
main71071-53D70-B4supersedes 71071-53D20-B6i201407-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71071-53D70-C4supersedes 71071-53D21-C7i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71071-53D70-F3i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71071-53D71-A3supersedes 71071-53D21-A4i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71071-53D71-A4supersedes 71071-53D21-A6i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71071-53D71-B4supersedes 71071-53D21-B6i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71071-53D71-C4supersedes 71071-53D21-C7i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71071-53D71-C5supersedes 71071-53D21-20i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71071-53D71-F3i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71071-53D71-F4supersedes 71071-53750-F1i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71071-53D72-B8i201610-201710
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71071-53D72-C7i201610-201710
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71071-53D72-F5i201610-201710
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71071-53D73-C9i201909-202009
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71071-53D73-F7i201909-202009
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71071-53D73-P0i201909-202009
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71071-53F80-C3supersedes 71071-53G40-C2i202111-202310
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71071-53F80-D3supersedes 71071-53G40-D2i202111-202310
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),DK.ROSE,TRIM3#
main71071-53F80-E3supersedes 71071-53G40-E2i202111-202310
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),OCHER,TRIM4#
main71071-53G00-C3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71071-53G00-D3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71071-53G00-E3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71071-53G10-C3i202111
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SE
main71071-53G10-D3i202209-202411
VIETNAM SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SEAT),
main71071-53G10-E3i202009-202110
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SE
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53C30-C3i201610-201707
BLACK/RED,TRIM9#
main71073-53C31-C3i201708-202009
BLACK/RED,TRIM9#
main71073-53D10-A3i201304-201502
IVORY,TRIM0#
main71073-53D10-B4i201304-201407
LT.GRAY,TRIM1#
main71073-53D10-B5i201407-201502
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),MOON STONE,TRI
main71073-53D10-F3i201304-201502
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),TOPAZ BROWM,TR
main71073-53D11-A3i201508-201610
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71073-53D11-B5i201503-201508
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SRS AIR BAG-WITH(FRONT & REAR SEAT),MOON STONE,TRI
main71073-53D11-B6i201508-201610
MOON STONE,TRIM1#
main71073-53D11-C5i201508-201610
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71073-53D11-F3i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71073-53D12-21i201610-201709
BLACK/RED,TRIM9#
main71073-53D12-B9i201610-201709
CHATEAU/LT.BROWN,TRIM1#
main71073-53D12-C9i201610-201709
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71073-53D12-E3i201610-201709
NOBLE BROWN/BORDEAU,TRIM4#
main71073-53D13-22i201710-202009
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71073-53D13-23i201710-202009
BLACK/RED,TRIM9#
main71073-53D13-E4i201710-202009
NOBLE BROWN/BORDEAU,TRIM4#
main71073-53D13-P0i201710-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71073-53E10-A3i201304-201502
IVORY,TRIM0#
main71073-53E10-B4i201304-201407
LT.GRAY,TRIM1#
main71073-53E10-B5i201407-201502
MOON STONE,TRIM1#
main71073-53E10-C5i201304-201502
SOUTH AFRICA SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM2#
main71073-53E11-A3i201503-201508
IVORY,TRIM0#
main71073-53E11-A4i201508-201610
IVORY,TRIM0#
main71073-53E11-B5i201503-201508
MOON STONE,TRIM1#
main71073-53E11-C5supersedes 71073-53D11-C5i201503-201508
HONG KONG SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM2#
main71073-53E11-C8i201508-201610
BLACK/LT.GRAY,TRIM2#
main71073-53J90-C2i202009-202110
BLACK,TRIM2#
main71073-53J90-D2i202009-202110
DARK ROSE,TRIM3#
main71073-53J90-E2i202111
OCHER,TRIM4#
main71073-53D12-F4i201610-201709
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71073-53D13-F5i201909-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71073-53D30-A3i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71073-53D30-B3i201304-201407
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),LT.GRAY,TRIM1#
main71073-53D30-B4i201407-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71073-53D30-C4i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71073-53D30-F3i201304-201502
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71073-53D31-A3i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71073-53D31-B4i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71073-53D31-C4i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71073-53D31-F3i201503-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWM,TRIM5#
main71073-53D32-B8supersedes 71073-53C31-B2i201610-201709
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71073-53D32-C6supersedes 71073-53C31-C0i201610-201709
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71073-53D32-F4supersedes 71073-53C31-F1i201610-201709
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71073-53D33-B9i201909-202009
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71073-53D33-C7i201909-202009
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71073-53D33-F5i201710-201909
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN/BLACK,TRIM5#
main71073-53E20-A7i201304-201502
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,IVORY,TRIM0#
main71073-53E20-B6i201304-201407
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM1#
main71073-53E20-B8i201407-201502
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),MOON STONE,TRIM1#
main71073-53E20-C6i201304-201502
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71073-53E20-F7i201304-201502
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,TOPAZ BROWN,TRIM5#
main71073-53E21-A7i201508-201610
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,IVORY,TRIM0#
main71073-53E21-B8i201503-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),MOON STONE,TRIM1#
main71073-53E21-B9i201508-201610
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MOON STONE,TRIM1#
main71073-53E21-C6i201503-201508
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71073-53E21-F7i201508-201610
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),TOPAZ BROWN,TRIM5#
main71073-53E22-20supersedes 71073-53E13-C8i201705-201707
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/LT.GRAY,TRIM2#
main71073-53E22-22i201610-201707
TAIWAN SPEC,BLACK/RED,TRIM9#
main71073-53E22-E3i201705-201707
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN/BORDEAU,TRIM4#
main71073-53E22-F8i201610-201707
TAIWAN SPEC,TOPAZ BROWN/BLACK,TRIM5#
main71073-53E22-P2supersedes 71073-53E13-P1i201705-201707
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),CHATEAU/LT.BROWN,TRIM1#
main71073-53E23-20supersedes 71073-53E13-C8i201708-202009
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK/LT.GRAY,TRIM2#
main71073-53E23-22i201708-202009
TAIWAN SPEC,BLACK/RED,TRIM9#
main71073-53E23-E3i201708-202009
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),NOBLE BROWN/BORDEAU,TRIM4#
main71073-53E23-F8i201708-202009
TAIWAN SPEC,TOPAZ BROWN/BLACK,TRIM5#
main71073-53E23-P2supersedes 71073-53E13-P1i201708-202009
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),CHATEAU/LT.BROWN,TRIM1#
main71073-53J20-C3supersedes 71073-53J90-C2i202111-202310
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),BLACK,TRIM2#
main71073-53J20-D3supersedes 71073-53J90-D2i202009-202110
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),DK.ROSE,TRIM3#
main71073-53J20-E3supersedes 71073-53J90-E2i202111-202310
SEAT HEATER-WITH & WITHOUT(AIR CONDITIONER SEAT),OCHER,TRIM4#
main71073-53J50-C3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71073-53J50-D3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71073-53J50-E3i202310
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BLIND SPOT MONIT
main71073-53J60-C3i202209-202411
VIETNAM SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SEAT),
main71073-53J60-D3i202111
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SE
main71073-53J60-E3i202009-202110
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SE
71421ASPRING, FRONT SEAT CUSHION
main71051-53060×2i201508-201610
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-53420supersedes 71501-53450i201508-201610
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)
main71501-53430supersedes 71511-53260i201610-202009
main71511-53260i202111-202310
main71501-53440i201610-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)
main71511-53290supersedes 71501-53430i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
main71537-47010-C0supersedes 71537-47010-C0i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#,5#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
main71538-47010-C0i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#,5#
main71538-53010-C0supersedes 71538-53010-C0i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-53060supersedes 71551-53200i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main71505-53061supersedes 71551-53201i201704-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE)
main71551-53201i202111
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-53060supersedes 71630-53050i201304-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)
main71630-53070i202111
main71630-53080supersedes 71630-53070i202310
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY =DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BACK MONITOR-WITH(PANOR
71647HPROTECTOR, FRONT SEAT CUSHION EDGE
main71587-24130×2i202009-202110
71759BHOOK, FRONT SEATBACK
main71759-47010×4i201304-201508
main71759-47011×4i202111
71765BPROTECTOR, FRONT SEATBACK, RH
main71587-53010i201304-201312
main71587-53011supersedes 71587-53011i201610-202009
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-53090-C0i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM0#,1#,2#,3#,5#
main71811-53100-C0i201508-201610
BLACK,TRIM0#,1#,2#
main71811-53110-C0i201304-201508
BLACK,TRIM0#,1#,2#,3#,5#
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-53010-C0i201304-201508
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM0#,1#,2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-53090-C0i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#
main71861-53100-C0i201304-201508
NEW ZEALAND SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#,5#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-53070supersedes 71873-53090i202111
main71873-53080i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-47030-C0i201508-201610
BLACK,TRIM0#,1#,2#
main71875-60210-C0supersedes 71875-60210-C0i201508-201610
BLACK,TRIM0#,1#,2#,3#,5#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-47030-C0i201508-201610
BLACK,TRIM0#,1#,2#
main71876-60210-C0supersedes 71876-47030-C0i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM0#,1#,2#,3#,5#
71910AHEADREST ASSY, FRONT SEAT
main71910-53232-23×2i201610-202009
BLACK/RED,TRIM9#
main71910-53232-P1×2i201610-201705
CHATEAU/LT.BROWN,TRIM1#
main71910-53480-A2×2supersedes 71910-53230-A4i201304-201508
IVORY,TRIM0#
main71910-53480-B2×2supersedes 71910-53230-B5i201304-201407
LT.GRAY,TRIM1#
main71910-53480-B3×2supersedes 71910-53230-B6i201407-201508
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71910-53480-F2×2i201304-201508
TOPAZ BROWN,TRIM5#
main71910-53481-B4×2i201508-201610
MOON STONE,TRIM1#
main71910-53481-B6×2supersedes 71910-53741-B2i201610-201909
CHATEAU/LT.BROWN,TRIM1#
main71910-53481-B7×2i201909-201911
PHILIPPINE SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),CHATEAU/LT.BROWN,TRIM1#
main71910-53481-C7×2i201911-202009
BLACK/RED,TRIM9#
main71910-53481-C8×2i201909-201911
BLACK/RED,TRIM9#
main71910-53481-E1×2i201911-202009
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),NOBLE BROWN/ECRU,TRIM4#
main71910-53481-E2×2i201909-201911
NOBLE BROWN/ECRU,TRIM4#
main71910-53582-C6×2i202410-202411
BLACK,TRIM21,22,6#
main71910-53582-C7×2i202009-202110
BLACK,TRIM2#,6#
main71910-53582-D5×2i202111
DK. ROSE,TRIM3#
main71910-53582-E1×2i202111
OCHER,TRIM4#
main71910-53740-F0×2i201508-201610
TOPAZ BROWN,TRIM5#
main71910-53741-B2×2i201705-202009
CHATEAU,TRIM1#
main71910-53741-C2×2i201705-202009
BLACK,TRIM2#,W(CCC MARK)
main71910-53750-A0×2supersedes 71910-53740-A0i201508-201610
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),IVORY,TRIM0#
main71910-53750-C0×2supersedes 71910-53741-C2i201610-201909
TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71910-53750-F0×2supersedes 71910-53232-F5i201508-201610
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY =DRIVER SIDE),TOPAZ BROWN,TRIM5#
main71910-53230-F4×2i201304-201508
TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,TOPAZ BROWN,TRIM5#
sub71910-53630
main71910-53480-D4×2i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71910-53481-A5×2supersedes 71910-53770-A0i202111
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWERSEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITHOUT & WITH(AIR CONDITIONER SE
main71910-53481-C2×2supersedes 71910-53770-C1i202111
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT),BLACK,TRIM2#,6#
main71910-53481-D5×2i201909-201911
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71910-53481-D7×2i202310
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY =DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BACK MONITOR-WITH(PANOR
main71910-53481-D8×2supersedes 71910-53770-D1i202009-202110
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RED,TRIM7#
main71910-53481-E3×2i202310
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY =DRIVER SIDE)&SEAT HEATER-WITH & WITH(AIR CONDITIONER SEAT)&BACK MONITOR-WITH(PANOR
main71910-53481-F3×2i201909-201911
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER& WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM5#
main71910-53580-C0×2supersedes 71910-53630-C0i201304-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM2#
main71910-53580-C1×2i201410-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK/RED,TRIM3#
main71910-53580-D0×2i201304-201508
F SPORT&FRONT SEAT-F-SPORT&SEAT COVER MATERIAL-FABRIC,DK.ROSE,TRIM3#
main71910-53582-C2×2i201610-201705
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main71910-53582-C3×2i201810-201909
F SPORT&F SPORT(SPUTTER DEPOSITION WHEEL)&FRONT SEAT-F-SPORT&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/RED,TRIM3#
main71910-53582-C4×2i201909-202009
TAIWAN SPEC&F SPORT&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/SMOKY BLUE,TRIM8#
main71910-53582-D1×2i201610-201705
F SPORT&SEAT COVER MATERIAL-FABRIC,DK.ROSE,TRIM3#
main71910-53620-C0×2supersedes 71910-53630-C0i201412-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT,BLACK,TRIM2#,W(CCC MARK)
sub71910-53630
main71910-53620-C1×2i201412-201508
THE CRAFTED LINE&FRONT SEAT-F-SPORT,BLACK/RED,TRIM32,W(CCC MARK)
sub71910-53630
main71910-53620-D0×2i201412-201508
F SPORT&FRONT SEAT-F-SPORT,DK.ROSE,TRIM30,W(CCC MARK)
sub71910-53630
main71910-53640-A0×2supersedes 71910-53630-A0i201412-201508
LUXURY PACKAGE,IVORY,TRIM0#,W(CCC MARK)
main71910-53640-B1×2supersedes 71910-53630-B0i201412-201508
LUXURY PACKAGE,MOON STONE,TRIM1#,W(CCC MARK)
main71910-53640-C0×2supersedes 71910-53630-C0i201412-201508
LUXURY PACKAGE,BLACK,TRIM2#,W(CCC MARK)
main71910-53640-F0×2supersedes 71910-53630-F0i201412-201508
LUXURY PACKAGE,TOPAZ BROWN,TRIM5#,W(CCC MARK)
main71910-53730-C0×2supersedes 71910-53750-C0i201508-201610
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main71910-53730-D0×2supersedes 71910-53481-D4i201508-201610
F SPORT&SEAT COVER MATERIAL-FABRIC,DK.ROSE,TRIM3#
main71910-53731-C1×2supersedes 71910-53741-C2i201705-202009
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main71910-53731-D1×2i201705-202009
F SPORT&SEAT COVER MATERIAL-FABRIC,DK.ROSE,TRIM3#
main71910-53750-B1×2i201705-201909
LUXURY PACKAGE,CHATEAU,TRIM1#,W(CCC MARK)
main71910-53750-B2×2i201909-202009
LUXURY PACKAGE,CHATEAU,TRIM1#,W(CCC MARK)
main71910-53750-E1×2i201705-201909
LUXURY PACKAGE,NOBLE BROWN,TRIM4#,W(CCC MARK)
main71910-53750-E2×2i201909-202009
LUXURY PACKAGE,NOBLE BROWN,TRIM4#,W(CCC MARK)
71916COVER, SEAT BELT HOLE, RH
main73173-53030i202009-202110
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A4×2i201304-201508
W(LOCK),IVORY,TRIM00,03
main71930-47020-B1×2i201304-201407
W(LOCK),LT.GRAY,TRIM10,11,12,13,14
main71930-47020-C0×2i201304-201508
W(LOCK),BLACK,TRIM03,13,2#,3#,5#
main71930-47020-C4×2i201710-202009
W(LOCK),TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEATSLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM1#,2#,3#,5#,9#
main71930-47020-P0×2i201407-201508
W(LOCK),MOON STONE,TRIM10
main71930-47020-P2×2i201508-201610
W(LOCK),MOON STONE,TRIM1#
main71931-47020-A4×2i201304-201508
W/O(LOCK),IVORY,TRIM00,01,02,03,13
main71931-47020-B1×2i201304-201407
W/O(LOCK),LT.GRAY,TRIM10,13
main71931-47020-C0×2i201304-201508
W/O(LOCK),SOUTH AFRICA SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#,3#,5#
main71931-47020-C4×2i202009-202110
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,6#,7#
main71931-47020-P0×2i201407-201508
W/O(LOCK),MOON STONE,TRIM10,11
main71931-47020-P2×2i201508-201610
W/O(LOCK),MOON STONE,TRIM1#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-53250i201304-201308
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)
sub73214-75010
main72010-53251supersedes 72010-53301i201308-201508
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)
main72010-53280i201304-201308
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
sub73214-75010
main72010-53281i201308-201508
F SPORT&FRONT SEAT-F-SPORT&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main72010-53310i201304-201308
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
sub73214-75010
main72010-53311i201407-201508
HONG KONG SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-53050-C0i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-53050-C0i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-53050-C0i201304-201508
BLACK,TRIM0#,1#,2#,3#,5#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-53070-C0i201508-201610
BLACK,TRIM0#,1#,2#,3#,5#
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-53020×2i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
72461ARM, VERTICAL SEAT RELEASE
main72461-30050i201304-201508
SOUTH AFRICA SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,RH
main72461-53010i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,LH
72462COVER, VERTICAL ADJUSTER RH
main72462-30010-C0i201705-202009
BLACK
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-53010-C0i201705-202009
BLACK,TRIM0#,1#,2#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-53040-C0i201705-202009
BLACK,TRIM0#,1#,2#
73178HCAP, SEAT BELT ANCHOR COVER, RH
main73178-53010-C0supersedes 73178-53020-C0i201508-201610
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,5#
main73178-53020-C0i201705-202009
BLACK,TRIM0#,1#,2#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-53030i202111-202310
73949CAP
main71848-33010×4i201304-201406
main71848-76010×4i202111
78639CLIP, FRONT SEAT SIDE TABLE
main78639-30010×2i201304-201508
BRUNEI SPEC&REAR SEAT-UNITED FIXED&SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT
8421
7226547030COVER, SEAT TRACK UPPER RAIL, RH
main72265-47030
9010510301
main90105-10301
9011910990
main90119-10990
9016740044
main90167-40044
9417060600
main94170-60600
9418560600
main94185-60600

44 parts on this diagram · 7 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
