EPC Data

REAR DOOR LOCK & HANDLE

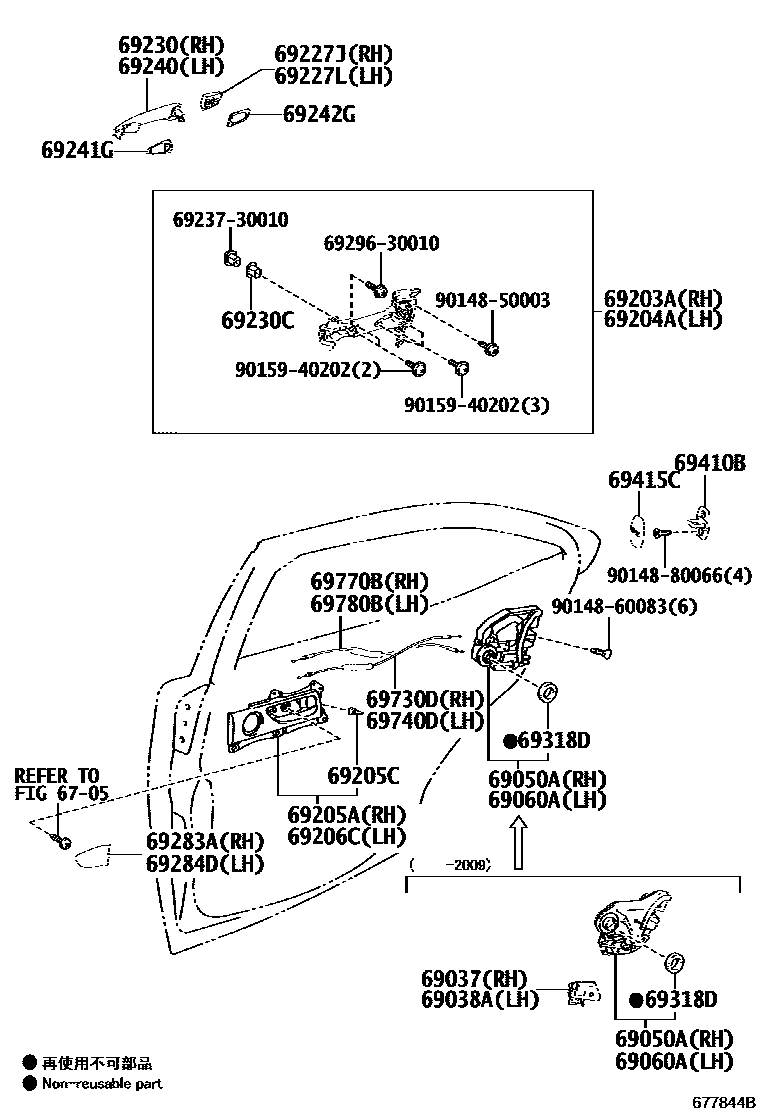

Parts diagram
6705
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-30010i201304-202009
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
main69038-30010i201304-202009
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-30530i201304-202009
main69050-33131i202009-202110
SINGAPORE SPEC
main69050-33131i202009-202110
MACAU SPEC
main69050-33131i202009-202110
THAILAND SPEC
main69050-33131i202009-202110
HONG KONG SPEC
main69050-33131i202310
main69050-33131i202009-202110
BRUNEI SPEC
main69050-33131i202009-202110
MALAYSIA SPEC
main69050-53040i201809-202009
TAIWAN SPEC
main69050-53060i202111-202310
main69050-53060i202009-202110
TAIWAN SPEC
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-30580i201304-202009
main69060-33131i202009-202110
BRUNEI SPEC
main69060-33131i202009-202110
SINGAPORE SPEC
main69060-33131i202009-202110
THAILAND SPEC
main69060-33131i202009-202110
MALAYSIA SPEC
main69060-33131i202009-202110
HONG KONG SPEC
main69060-33131i202009-202110
MACAU SPEC
main69060-33131i202310
main69060-53040i201809-202009
TAIWAN SPEC
main69060-53060i202009-202110
TAIWAN SPEC
main69060-53060i202111-202310
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-53020i201304-201704
sub69203-53021
main69203-53021i201705-202009
main69203-53030i202009-202309
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-53020i201304-201704
sub69204-53021
main69204-53021i201705-202009
main69204-53030i202009-202309
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69270-53020-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
main69270-53070-C0i201610-202009
BLACK,TRIM1#,3#,5#,9#
main69270-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,5#,9#
main69270-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,5#,8#,9#
main69270-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,4#,8#,9#
main69270-53070-C0i201705-202009
BLACK,TRIM1#,2#,3#,4#
main69270-53110-C0i202009-202110
BLACK/BLACK,TRIM0#,6#,7#
main69270-53110-C0i202009-202309
BLACK/BLACK,TRIM0#,2#,3#,6#,7#
main69270-53110-E1i202009-202309
OCHER,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04014i201304-202309
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69280-53020-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
main69280-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,5#,9#
main69280-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,5#,8#,9#
main69280-53070-C0i201610-202009
BLACK,TRIM1#,3#,5#,9#
main69280-53070-C0i201610-202009
BLACK,TRIM1#,2#,3#,4#,8#,9#
main69280-53070-C0i201705-202009
BLACK,TRIM1#,2#,3#,4#
main69280-53110-C0i202009-202110
BLACK/BLACK,TRIM0#,6#,7#
main69280-53110-C0i202009-202309
BLACK/BLACK,TRIM0#,2#,3#,6#,7#
main69280-53110-E1i202009-202309
OCHER,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-48010-A0i201304-201508
WHITE PEARL CS.,077
sub69227-48010
main69227-48010-A2i201304-202309
WHITE NOVA GF.,083
sub69227-48010
main69227-48010-A3i201508-202309
SONIC QUARTZ,085
sub69227-48010
main69227-48010-B4i201304-202009
MERCURY GRAY MC.,1H9
sub69227-48010
main69227-48010-B5i201809-202009
SONIC SILVER,1J2
sub69227-48010
main69227-48010-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69227-48010
main69227-48010-B7i201304-202309
SONIC TITANIUM,1J7
sub69227-48010
main69227-48010-B9i201909-202009
MANGANESE LUSTER,1K2
sub69227-48010
main69227-48010-C0i201304-202009
BLACK,212
sub69227-48010
main69227-48010-C0i201304-201508
BLACK,083 ,212
sub69227-48010
main69227-48010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69227-48010
main69227-48010-C3i201610-202309
GRAPHITE BLACK GF.,223
sub69227-48010
main69227-48010-D0i201304-202309
RED MC.CS.,3R1
sub69227-48010
main69227-48010-D4i201508-202009
SOLID RED,3T2
sub69227-48010
main69227-48010-D5i201809-202309
RADIANT RED CONTRAST LAYE,3T5
sub69227-48010
main69227-48010-J2i201304-201508
BLUE ME.,8U1
sub69227-48010
main69227-48010-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69227-48010
main69227-48010-J5i201610-201909
DEEP BLUE MC.,8X5
sub69227-48010
main69227-48010-J6i201508-202309
HEAT BLUE CONTRAST LAYERI,8X1
sub69227-48010
main69227-48010-J8i202009-202411
CELESTIAL BLUE GF.,8Y6
sub69227-48010
main69227-48010-P0i202009-202309
SONIC CHROME,1L1
sub69227-48010
main69227-48010-P1i202009-202309
SONIC IRIDIUM,1L2
sub69227-48010
main69227-48010-P2i202111
TITANIUM CARBIDE GRAY,1L8
sub69227-48010
main69227-48010-P2i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69227-48010
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69228-48010-A0i201304-201508
WHITE PEARL CS.,077
sub69228-48010
main69228-48010-A2i201304-202309
WHITE NOVA GF.,083
sub69228-48010
main69228-48010-A3i201508-202309
SONIC QUARTZ,085
sub69228-48010
main69228-48010-B4i201304-202009
MERCURY GRAY MC.,1H9
sub69228-48010
main69228-48010-B5i201809-202009
SONIC SILVER,1J2
sub69228-48010
main69228-48010-B6i201304-201809
PLATINUM SILVER ME.,1J4
sub69228-48010
main69228-48010-B7i201304-202309
SONIC TITANIUM,1J7
sub69228-48010
main69228-48010-B9i201909-202009
MANGANESE LUSTER,1K2
sub69228-48010
main69228-48010-C0i201304-201508
BLACK,083 ,212
sub69228-48010
main69228-48010-C0i201304-202009
BLACK,212
sub69228-48010
main69228-48010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69228-48010
main69228-48010-C3i201610-202309
GRAPHITE BLACK GF.,223
sub69228-48010
main69228-48010-D0i201304-202309
RED MC.CS.,3R1
sub69228-48010
main69228-48010-D4i201508-202009
SOLID RED,3T2
sub69228-48010
main69228-48010-D5i201809-202309
RADIANT RED CONTRAST LAYE,3T5
sub69228-48010
main69228-48010-J2i201304-201508
BLUE ME.,8U1
sub69228-48010
main69228-48010-J3i201304-201508
LAPIS LAZULI MC.,8V3
sub69228-48010
main69228-48010-J5i201610-201909
DEEP BLUE MC.,8X5
sub69228-48010
main69228-48010-J6i201508-202309
HEAT BLUE CONTRAST LAYERI,8X1
sub69228-48010
main69228-48010-J8i202009-202411
CELESTIAL BLUE GF.,8Y6
sub69228-48010
main69228-48010-P0i202009-202309
SONIC CHROME,1L1
sub69228-48010
main69228-48010-P1i202009-202309
SONIC IRIDIUM,1L2
sub69228-48010
main69228-48010-P2i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69228-48010
main69228-48010-P2i202111
TITANIUM CARBIDE GRAY,1L8
sub69228-48010
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-76010-A0i201304-201508
WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A2i201304-202309
WHITE NOVA GF.,083
sub69210-76010
main69210-76010-A3i201508-202309
SONIC QUARTZ,085
sub69210-76010
main69210-76010-B1i201304-202009
MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B4i201304-201809
PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-B5i201304-202309
SONIC TITANIUM,1J7
sub69210-76010
main69210-76010-B6i201809-202009
SONIC SILVER,1J2
sub69210-76010
main69210-76010-B7i201909-202009
MANGANESE LUSTER,1K2
sub69210-76010
main69210-76010-B8i202009-202309
SONIC CHROME,1L1
sub69210-76010
main69210-76010-B9i202009-202309
SONIC IRIDIUM,1L2
sub69210-76010
main69210-76010-C0i201304-201508
BLACK,083 ,212
sub69210-76010
main69210-76010-C0i201304-202009
BLACK,212
sub69210-76010
main69210-76010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69210-76010
main69210-76010-C3i201610-202309
GRAPHITE BLACK GF.,223
sub69210-76010
main69210-76010-D0i201304-202309
RED MC.CS.,3R1
sub69210-76010
main69210-76010-D3i201508-202009
SOLID RED,3T2
sub69210-76010
main69210-76010-D5i201809-202309
RADIANT RED CONTRAST LAYE,3T5
sub69210-76010
main69210-76010-J0i201304-201508
BLUE ME.,8U1
sub69210-76010
main69210-76010-J2i201304-201508
LAPIS LAZULI MC.,8V3
sub69210-76010
main69210-76010-J5i201508-202309
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-76010
main69210-76010-J6i201610-201909
DEEP BLUE MC.,8X5
sub69210-76010
main69210-76010-J8i202009-202411
CELESTIAL BLUE GF.,8Y6
sub69210-76010
main69210-76010-P0i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69210-76010
main69210-76010-P0i202111
TITANIUM CARBIDE GRAY,1L8
sub69210-76010
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
main69239-30010i201304-202309
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-76010-A0i201304-201508
WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A2i201304-202309
WHITE NOVA GF.,083
sub69220-76010
main69220-76010-A3i201508-202309
SONIC QUARTZ,085
sub69220-76010
main69220-76010-B1i201304-202009
MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B4i201304-201809
PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-B5i201304-202309
SONIC TITANIUM,1J7
sub69220-76010
main69220-76010-B6i201809-202009
SONIC SILVER,1J2
sub69220-76010
main69220-76010-B7i201909-202009
MANGANESE LUSTER,1K2
sub69220-76010
main69220-76010-B8i202009-202309
SONIC CHROME,1L1
sub69220-76010
main69220-76010-B9i202009-202309
SONIC IRIDIUM,1L2
sub69220-76010
main69220-76010-C0i201304-201508
BLACK,083 ,212
sub69220-76010
main69220-76010-C0i201304-202009
BLACK,212
sub69220-76010
main69220-76010-C2i201304-201610
STARLIGHT BLACK GF.,217
sub69220-76010
main69220-76010-C3i201610-202309
GRAPHITE BLACK GF.,223
sub69220-76010
main69220-76010-D0i201304-202309
RED MC.CS.,3R1
sub69220-76010
main69220-76010-D3i201508-202009
SOLID RED,3T2
sub69220-76010
main69220-76010-D5i201809-202309
RADIANT RED CONTRAST LAYE,3T5
sub69220-76010
main69220-76010-J0i201304-201508
BLUE ME.,8U1
sub69220-76010
main69220-76010-J2i201304-201508
LAPIS LAZULI MC.,8V3
sub69220-76010
main69220-76010-J5i201508-202309
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-76010
main69220-76010-J6i201610-201909
DEEP BLUE MC.,8X5
sub69220-76010
main69220-76010-J8i202009-202411
CELESTIAL BLUE GF.,8Y6
sub69220-76010
main69220-76010-P0i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69220-76010
main69220-76010-P0i202111
TITANIUM CARBIDE GRAY,1L8
sub69220-76010
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48030i201304-202309
RH
main69242-48030i201304-202309
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-48050i201304-202309
RH
main69242-48050i201304-202309
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i202009-202309
BLACK,TRIM0#,2#,3#,6#,7#
sub69283-30050
main69283-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
sub69283-30050
main69283-30050-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69283-30050
main69283-30050-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub69283-30050
main69283-30050-C0i201705-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i202009-202110
BLACK,TRIM0#,6#,7#
sub69283-30050
main69283-30050-E7i202009-202309
OCHER,TRIM4#
sub69283-30050
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i202009-202309
BLACK,TRIM0#,2#,3#,6#,7#
sub69284-30050
main69284-30050-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
sub69284-30050
main69284-30050-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
sub69284-30050
main69284-30050-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
sub69284-30050
main69284-30050-C0i201705-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i202009-202110
BLACK,TRIM0#,6#,7#
sub69284-30050
main69284-30050-E7i202009-202309
OCHER,TRIM4#
sub69284-30050
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201304-202309
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33030i201304-202309
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-33010i201304-201306
main69415-60020i201307-202309
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-53040i201304-202009
main69730-53050i201809-202009
TAIWAN SPEC
main69730-53060i202009-202309
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-53040i201304-202009
main69730-53050i201809-202009
TAIWAN SPEC
main69730-53060i202009-202309
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-53080i201304-201408
sub69770-53082
main69770-53081i201409-201506
sub69770-53082
main69770-53082i201507-202009
main69770-53090i201809-202009
TAIWAN SPEC
main69770-53100i202009-202110
THAILAND SPEC
main69770-53100i202009-202110
HONG KONG SPEC
main69770-53100i202009-202110
BRUNEI SPEC
main69770-53100i202009-202110
MACAU SPEC
main69770-53100i202009-202110
SINGAPORE SPEC
main69770-53100i202009-202110
MALAYSIA SPEC
main69770-53100i202310
main69770-53110i202111-202310
main69770-53110i202009-202110
TAIWAN SPEC
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-53080i201304-201408
sub69770-53082
main69770-53081i201409-201506
sub69770-53082
main69770-53082i201507-202009
main69770-53090i201809-202009
TAIWAN SPEC
main69770-53100i202009-202110
MALAYSIA SPEC
main69770-53100i202009-202110
HONG KONG SPEC
main69770-53100i202009-202110
BRUNEI SPEC
main69770-53100i202009-202110
MACAU SPEC
main69770-53100i202009-202110
SINGAPORE SPEC
main69770-53100i202009-202110
THAILAND SPEC
main69770-53100i202310
main69770-53110i202111-202310
main69770-53110i202009-202110
TAIWAN SPEC
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202

32 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
