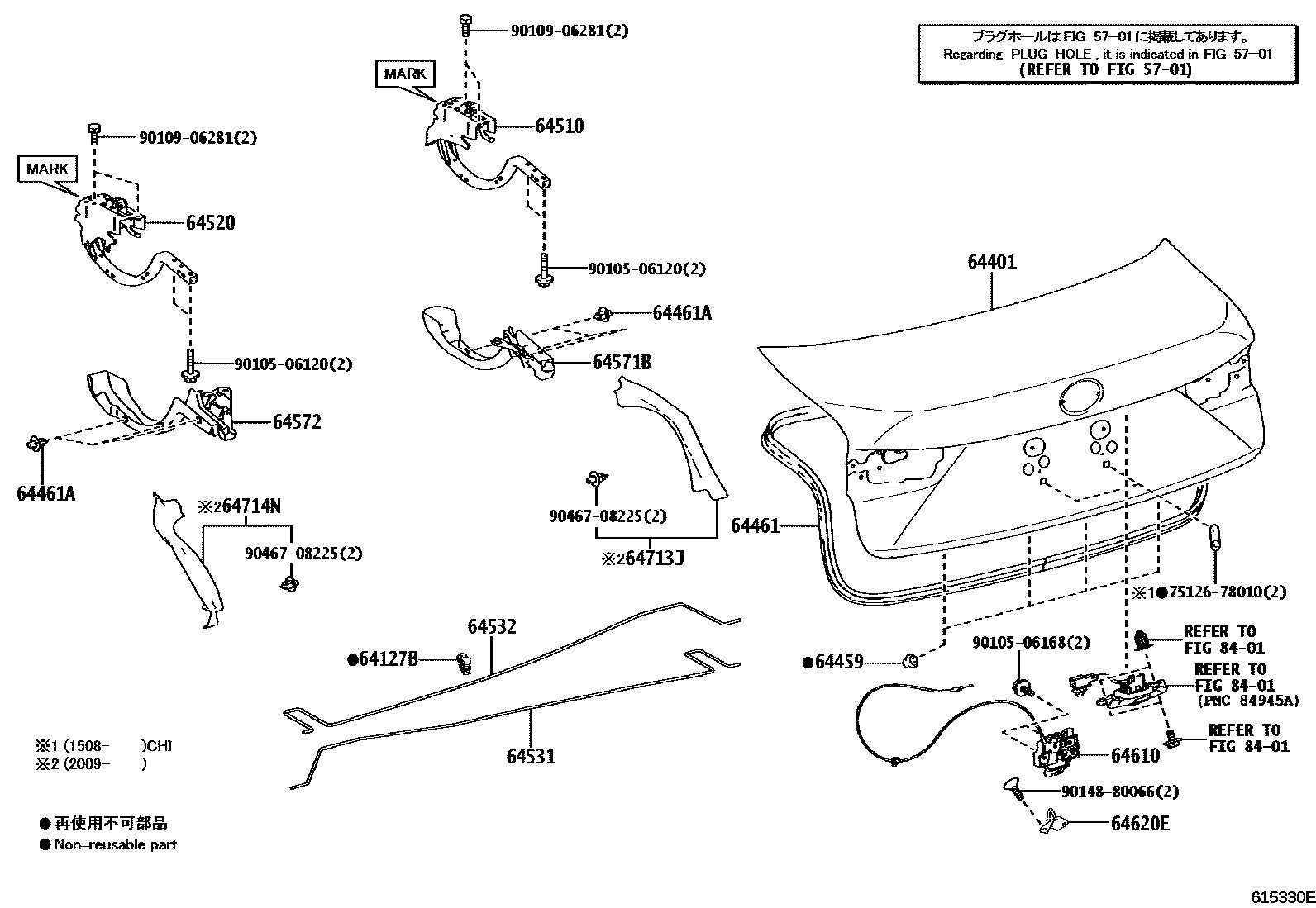

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

5701

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iASE30,AVE30,GSE31201304-202310

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-53290iAVE30,GSE3#201304-201502

sub64401-53291

main64401-53291iASE30,AVE30,GSE31..GCC,GEN201610-202009

THAILAND SPEC&BACK MONITOR-WITHOUT

main64401-53291iASE30,AVE30,GSE31..GCC,GEN201610-202009

MALAYSIA SPEC&BACK MONITOR-WITHOUT

main64401-53291iASE30,AVE30,GSE31..GCC,GEN201610-202009

MACAU SPEC&BACK MONITOR-WITHOUT

main64401-53291iAVE30..ARL201610-202009

HONGKONG SPEC&BACK MONITOR-WITHOUT

main64401-53291iAVE30..ARL201610-202009

SOUTH AFRICA SPEC&BACK MONITOR-WITHOUT

main64401-53291iAVE30..ARL201610-202009

BRUNEI SPEC&BACK MONITOR-WITHOUT

main64401-53291iAVE30..ARL201610-202009

SINGAPORE SPEC&BACK MONITOR-WITHOUT

main64401-53291iAVE30,GSE3#201502-201610

main64401-53301iASE30,AVE30,GSE31..ARL201610-202009

TAIWAN SPEC&BACK MONITOR-WITH(EMV & GUIDE)

main64401-53301iASE30,AVE30,GSE31..ARL201610-202009

PHILIPPINE SPEC&BACK MONITOR-WITH(EMV & GUIDE)

main64401-53301iASE30,AVE30,GSE31..GCC,GEN201610-202009

BACK MONITOR-WITH(EMV & GUIDE)

main64401-53301iASE30,AVE30,GSE31..GCC,GEN201610-202009

BACK MONITOR-WITH((EMV OR DISPLAY AUDIO) & GUIDE)

main64401-53330iASE30..CHI201508-202009

main64401-53370iGSE31..GCC;ASE30,AVE30202009-202110

F SPORT

main64401-53380iASE30,AVE30;GSE31..ARL,GCC202009-202310

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-53020iASE30,AVE30,GSE31202009-202310

main90541-09116iASE30,AVE30,GSE31201304-202009

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-53030iASE30,AVE30,GSE31201304-202009

main64461-53040iASE30,AVE30,GSE31202009-202310

64461ACLIP(FOR DECK TRIM COVER)

main90467-07076-C0iAVE30,GSE3#201304-201610

BLACK,TRIM0#,1#,2#,3#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iASE30,AVE30,GSE31201610-201703

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASE30..CHI201705-202009

BLACK,TRIM1#,2#,3#,4#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAVE30,GSE31..GEN201703-202009

BLACK,TRIM1#,2#,3#,5#,9#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAVE30,GSE31..GEN201703-202009

BLACK,TRIM1#,2#,3#,5#,8#,9#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAVE30,GSE31..GEN201703-202009

BLACK,TRIM1#,3#,5#,9#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAVE30,GSE31..GEN201703-202009

BLACK,TRIM1#,2#,3#,4#,8#,9#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASE30,AVE30,GSE31202009-202310

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-53070iAVE30,GSE3#201304-201511

NO MARK

sub64510-53100

main64510-53080iAVE30,GSE3#201304-201511

MARK = +

sub64510-53110

main64510-53090iAVE30,GSE3#201304-201511

MARK = -

sub64510-53120

main64510-53100iASE30,AVE30,GSE31201512-201706

NO MARK

sub64510-53101

main64510-53101iASE30,AVE30,GSE31201707-202009

NO MARK

main64510-53110iASE30,AVE30,GSE31201512-201706

MARK = +

sub64510-53111

main64510-53111iASE30,AVE30,GSE31201707-202009

MARK = +

sub64510-53101

main64510-53120iASE30,AVE30,GSE31201512-201706

MARK = -

sub64510-53121

main64510-53121iASE30,AVE30,GSE31201707-202009

MARK = -

sub64510-53101

main64510-53140iASE30,AVE30,GSE31202009-202310

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-53060iAVE30,GSE3#201304-201511

NO MARK

sub64520-53090

main64520-53070iAVE30,GSE3#201304-201511

MARK = +

sub64520-53100

main64520-53080iAVE30,GSE3#201304-201511

MARK = -

sub64520-53110

main64520-53090iASE30,AVE30,GSE31201512-201706

NO MARK

sub64520-53091

main64520-53091iASE30,AVE30,GSE31201707-202009

NO MARK

main64520-53100iASE30,AVE30,GSE31201512-201706

MARK = +

sub64520-53101

main64520-53101iASE30,AVE30,GSE31201707-202009

MARK = +

sub64520-53091

main64520-53110iASE30,AVE30,GSE31201512-201706

MARK = -

sub64520-53111

main64520-53111iASE30,AVE30,GSE31201707-202009

MARK = -

sub64520-53091

main64520-53130iGSE31..ARL202009-202310

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-53080iAVE30,GSE3#201304-202009

main64531-53110iGSE31..ARL202009-202310

main64531-53120iGSE31..GEN202009-202110

F SPORT

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-53080iAVE30,GSE3#201304-202009

main64532-53110iGSE31..GCC;ASE30,AVE30202009-202310

main64532-53120iASE30,AVE30;GSE31..ARL,GCC202009-202110

F SPORT

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-53040-C0iAVE30,GSE3#201304-201610

BLACK,TRIM0#,1#,2#,3#,5#

main64571-53040-C0iASE30..ARL,GEN;AVE30,GSE31..ARL201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

main64571-53040-C0iASE30..ARL,GEN;AVE30,GSE31..ARL201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main64571-53040-C0iASE30..CHI201705-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#

main64571-53050iASE30,AVE30,GSE31202009-202310

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-53040-C0iAVE30,GSE3#201304-201610

BLACK,TRIM0#,1#,2#,3#,5#

main64572-53040-C0iASE30..ARL,GEN;AVE30,GSE31..ARL201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

main64572-53040-C0iASE30..ARL,GEN;AVE30,GSE31..ARL201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main64572-53040-C0iASE30..CHI201705-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#

main64572-53050iASE30,AVE30,GSE31202009-202310

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-53080iAVE30,GSE3#201304-202009

main64600-53090iASE30,AVE30,GSE31202009-202309

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iAVE30,GSE3#201304-202309

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-53050iASE30,AVE30,GSE31202009-202310

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-53150iASE30,AVE30,GSE31202009-202310

8401

7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER

main75126-78010

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9014880066

main90148-80066

9046708225

main90467-08225

23 parts on this diagram · 2 diagrams in section
