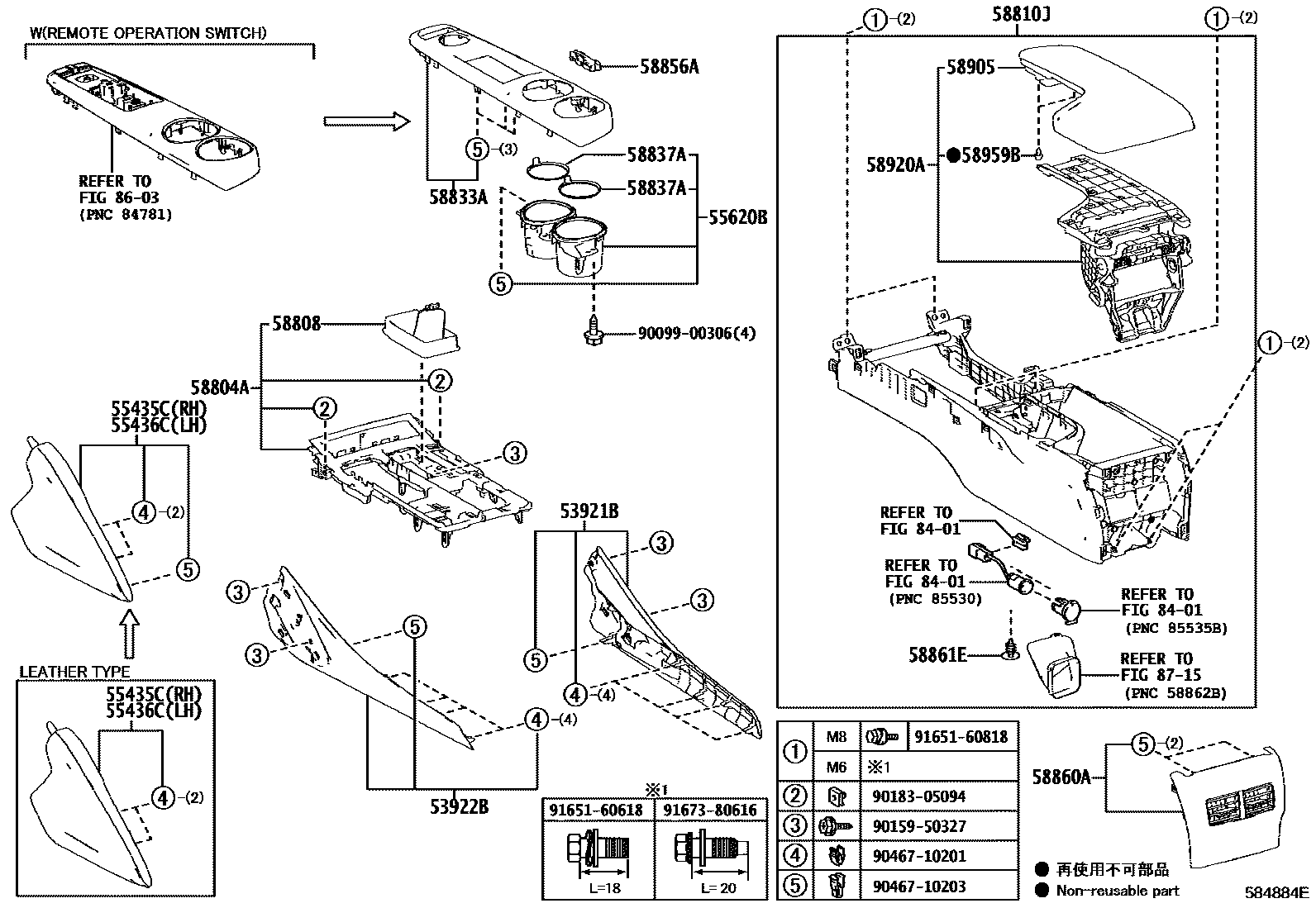

CONSOLE BOX & BRACKET
53921BGARNISH, FRONT PANEL, RH
53922BGARNISH, FRONT PANEL, LH
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,1#,2#,4#,5#,9#
BLACK,TRIM2#,3#,4#
BLACK/LT.GRAY,TRIM0#,6#
F SPORT,RED,TRIM7#
LUXURY PACKAGE,BLACK/LT.GRAY,TRIM0#,1#,2#,5#
F SPORT,BLACK/DK.ROSE,TRIM30
THE CRAFTED LINE,BLACK/RED,TRIM32
LUXURY PACKAGE,BLACK/DK.ROSE,TRIM3#
LUXURY PACKAGE,BLACK/LT.GRAY,TRIM1#,2#,5#
F SPORT,BLACK/RED,TRIM9#
F SPORT,BLACK/RED,TRIM36
F SPORT,BLACK/GRAY/SMOKY BLUE,TRIM8#
LUXURY PACKAGE,BLACK/BLACK,TRIM22,23,32,33,4#
LUXURY PACKAGE,BLACK/RED,TRIM32,33
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,1#,2#,4#,5#,9#
BLACK,TRIM2#,3#,4#
BLACK/LT.GRAY,TRIM0#,6#
F SPORT,RED,TRIM7#
LUXURY PACKAGE,BLACK/LT.GRAY,TRIM0#,1#,2#,5#
LUXURY PACKAGE,BLACK/DK.ROSE,TRIM3#
THE CRAFTED LINE,BLACK/RED,TRIM32
F SPORT,BLACK/DK.ROSE,TRIM3#
LUXURY PACKAGE,BLACK/LT.GRAY,TRIM1#,2#,5#
F SPORT,BLACK/RED,TRIM9#
F SPORT,BLACK/RED,TRIM36
F SPORT,BLACK/GRAY/SMOKY BLUE,TRIM8#
F SPORT,BLACK/BLACK,TRIM4#
LUXURY PACKAGE,BLACK/RED,TRIM32,33
55620BHOLDER, INSTRUMENT PANEL CUP
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
sub58804-53251
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,2#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,2#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/SMOKY BLUE,TRIM8#
BLACK/RED,TRIM7#
BLACK/LT.GRAY,TRIM0#,60,62,64,68
BLACK/BLACK,TRIM2#,3#,4#
BLACK/RED,TRIM7#
BLACK/LT.GRAY,TRIM0#,60,62,64,68
BLACK/BLACK,TRIM2#,3#,4#
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/LT.GRAY,TRIM0#,1#,2#,5#
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/DK.ROSE,TRIM30
SEAT COVER MATERIAL-FABRIC,BLACK/LT.GRAY,TRIM0#,1#,2#,5#
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.ROSE,TRIM3#
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/LT.GRAY,TRIM0#,1#,2#,5#
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK/RED,TRIM3#
F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/DK.ROSE,TRIM3#
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/LT.GRAY,TRIM1#,2#,5#,9#
F SPORT&FRONT SEAT SLIDE-POWER & WITH(SEAT MEMORY = DRIVER SIDE),BLACK/RED,TRIM36
TAIWAN SPEC,BLACK/SMOKY BLUE,TRIM8#
SEAT COVER MATERIAL-FABRIC,BLACK/LT.GRAY,TRIM2#
sub58804-53451
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/SMOKY BLUE,TRIM8#
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/LT.GRAY,TRIM0#,1#,2#,5#
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK/DK.ROSE,TRIM30
BLACK/RED,TRIM7#
BLACK/LT.GRAY,TRIM0#,60,62,64,68
BLACK/BLACK,TRIM2#,3#,4#
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/RED,TRIM32
58810JBOX ASSY, CONSOLE
WHITE,TRIM0#
BLACK,TRIM2#,6#
DK.ROSE,TRIM3#
RED,TRIM7#
OCHER,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,6#
DK.ROSE,TRIM3#
RED,TRIM7#
OCHER,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/RED,TRIM32
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,2#,5#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,5#,9#
BLACK/DK.ROSE,TRIM34,35
BLACK/LT.GRAY,TRIM1#,5#,9#
BLACK/RED,TRIM36
BLACK/SMOKY BLUE,TRIM8#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#,9#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#,9#
BLACK/SMOKY BLUE,TRIM8#
F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
F SPORT&F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
58833ACOVER, CONSOLE, UPPER
EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITH(GPS),BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58837APAD, CONSOLE BOX SILENCER, NO.2
58856AHOLDER, CONSOLE BOX
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,6#
BLACK,TRIM0#,6#
BLACK/RED,TRIM7#
RED,TRIM3#,7#
58861ECLIP, CONSOLE BOX DUCT
BLACK
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
WHITE,TRIM0#
BLACK,TRIM2#,6#
RED,TRIM3#,7#
DK.ROSE,TRIM31,32,33
OCHER,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,6#
RED,TRIM33,7#
DK.ROSE,TRIM31,32,33
OCHER,TRIM4#
BLACK/DK.ROSE NO.59,TRIM30,31
TRIM1#,5#,9#
BLACK/RED NO.55,TRIM32
BLACK/DK.ROSE,TRIM3#
TRIM1#,2#,4#,9#
BLACK/RED,TRIM32
BLACK/DL.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,5#,9#
BLACK/RED,TRIM36
BLACK/SMOKY BLUE,TRIM8#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#,9#
BLACK/SMOKY BLUE,TRIM8#
F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
F SPORT&F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
58920AARMREST ASSY, REAR CONSOLE
WHITE,TRIM0#
BLACK,TRIM2#,6#
RED,TRIM7#
DK.ROSE,TRIM3#
OCHER,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,6#
RED,TRIM7#
DK.ROSE,TRIM3#
OCHER,TRIM4#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/RED,TRIM32
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,5#,9#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#
BLACK/RED,TRIM36
BLACK/SMOKY BLUE,TRIM8#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#,9#
BLACK/DK.ROSE,TRIM3#
BLACK/LT.GRAY,TRIM1#,2#,4#,9#
BLACK/SMOKY BLUE,TRIM8#
F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
F SPORT&F SPORT MODE BLACK 4 *(E),BLACK/LT.GRAY,TRIM6#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
8401
8603
8715
9009900306
main90099-00306
9015950327
main90159-50327
9018305094
main90183-05094
9046710201
main90467-10201
9046710203
main90467-10203
9165160618
main91651-60618
9165160818
main91651-60818
9167380616
main91673-80616
27 parts on this diagram · 6 diagrams in section
