5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-53030i201508-201610

main53153-53040i201610-202009

main53153-53050i202111-202310

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-53030i201304-201508

main53154-53040i201610-202009

main53154-53050i202009-202110

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-53907i201304-201508

main53202-53908i201911-202009

main53202-53909i202009-202110

53202DCUSHION, RADIATOR SUPPORT

main53119-53021×2i202009-202110

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-53907i201304-201508

main53203-53908i201911-202009

main53203-53909i202009-202110

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-30120i201304-201508

main53205-30122i201510-201610

53213ASUPPORT, RADIATOR, UPPER RH

main53213-53040i201304-201508

main53213-53050i202009-202110

53214ASUPPORT, RADIATOR, UPPER LH

main53214-53040i201304-201508

main53214-53050i202009-202110

53217ABRACE, HOOD LOCK SUPPORT

main53217-53903i201304-201508

main53217-53904i201610-202009

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-53010i201304-201508

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53238-53010i201304-201508

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-30120i202111

main53257-53040i201508-201610

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-30070i202111

main53258-53040i201304-201508

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07217×9i201304-201508

53271EBRACKET, HEADLAMP MOUNTING, RH

main53245-53020i202009-202110

main53245-53030i201304-201508

53272CBRACKET, HEADLAMP MOUNTING, LH

main53246-53020i202009-202110

main53246-53030i201508-201610

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-53020i202009-202110

main53287-53030i201304-201508

53287DDUCT, COOL AIR INTAKE

main53208-53090i202111

main53208-53050supersedes 53208-53040i201304-201508

F SPORT

53288ADUCT, COOL AIR INTAKE

main53209-53120i202009-202110

main53209-53080i201410-201508

THE CRAFTED LINE

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-53020i202009-202110

main53288-53030i201304-201508

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-53040i201304-201502

main53289-53041i201503-201508

main53289-53060i201304-201508

main53289-53080i201610-202009

main53289-53090i202009-202110

53295ESEAL, COOL AIR INTAKE DUCT

main53295-53040i201304-201508

main53295-53050i201508-201610

main53295-53060i201610-202009

main53295-53070i201610-202009

main53295-53080i202111-202310

main53295-53090i202009-202110

53301GCUSHION, HOOD BUMPER

main90541-15034×2i201304-201508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-53080i201508-201610

main53701-53100i202009-202110

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-53090i201304-201508

main53702-53110i202009-202110

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-53040i201304-201508

main53705-53050i202009-202110

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-53040i201304-201508

main53706-53050i202111-202310

53711BAPRON, FRONT FENDER, FRONT RH

main53711-24050i202009-202110

main53711-53040i201304-201508

53712BAPRON, FRONT FENDER, FRONT LH

main53712-24060i202009-202110

main53712-53040i201304-201508

main53712-53041i201610-202009

53717DGUSSET, FENDER APRON, RH

main53717-53030i201304-201508

main53717-53040i202009-202110

53718DGUSSET, FENDER APRON, LH

main53717-53030i201610-202009

main53718-53050i202009-202110

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-53010i201304-201508

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-53010i201304-201508

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-53010i201304-201508

main53747-53020i202009-202110

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-53010i201304-201508

main53748-53020i202009-202110

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-53010i201610-202009

main53837-53020i202111-202310

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-53030i201304-201508

main53838-53040i202009-202110

55101PANEL SUB-ASSY, DASH

main55101-53190i201304-201508

main55101-53250i201304-201508

main55101-53260i201508-201610

main55101-53280i202111

main55101-53300i202111-202310

main55101-53310i202009-202110

55210INSULATOR ASSY, DASH PANEL

main55210-53100i202009-202110

main55210-53110i201508-201511

main55210-53111i201610-202009

main55210-53120i201304-201502

main55210-53130i201304-201507

main55210-53131i201512-201610

main55210-53140i201503-201508

main55210-53170i201803-202009

55210ACLIP

main90904-67034×4i201508-201610

55223AINSULATOR, DASH PANEL, OUTER

main55223-53090i201610-201611

main55223-53091i201612-202009

main55223-53100i201304-201504

main55223-53101i201505-201508

main55223-53102i201601-201610

main55223-53120i201304-201508

main55223-53121i202009-202110

5701HOLE PLUG

→ Go to FIG 57-01

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-30090i201304-201508

main57104-30091i202106-202110

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050i201610-202009

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050i201304-201508

61143EGUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER RH

main61143-53040i201304-201508

main61143-53050i202009-202110

61144EGUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER LH

main61144-53040i201304-201508

main61144-53050i202111

9010506137

main90105-06137

9010908241

main90109-08241

9011906403

main90119-06403

9011906451

main90119-06451

9018906237

main90189-06237

9046707201

main90467-07201

9046710183

main90467-10183

91631B0610

main91631-B0610

91672B1050

main91672-B1050

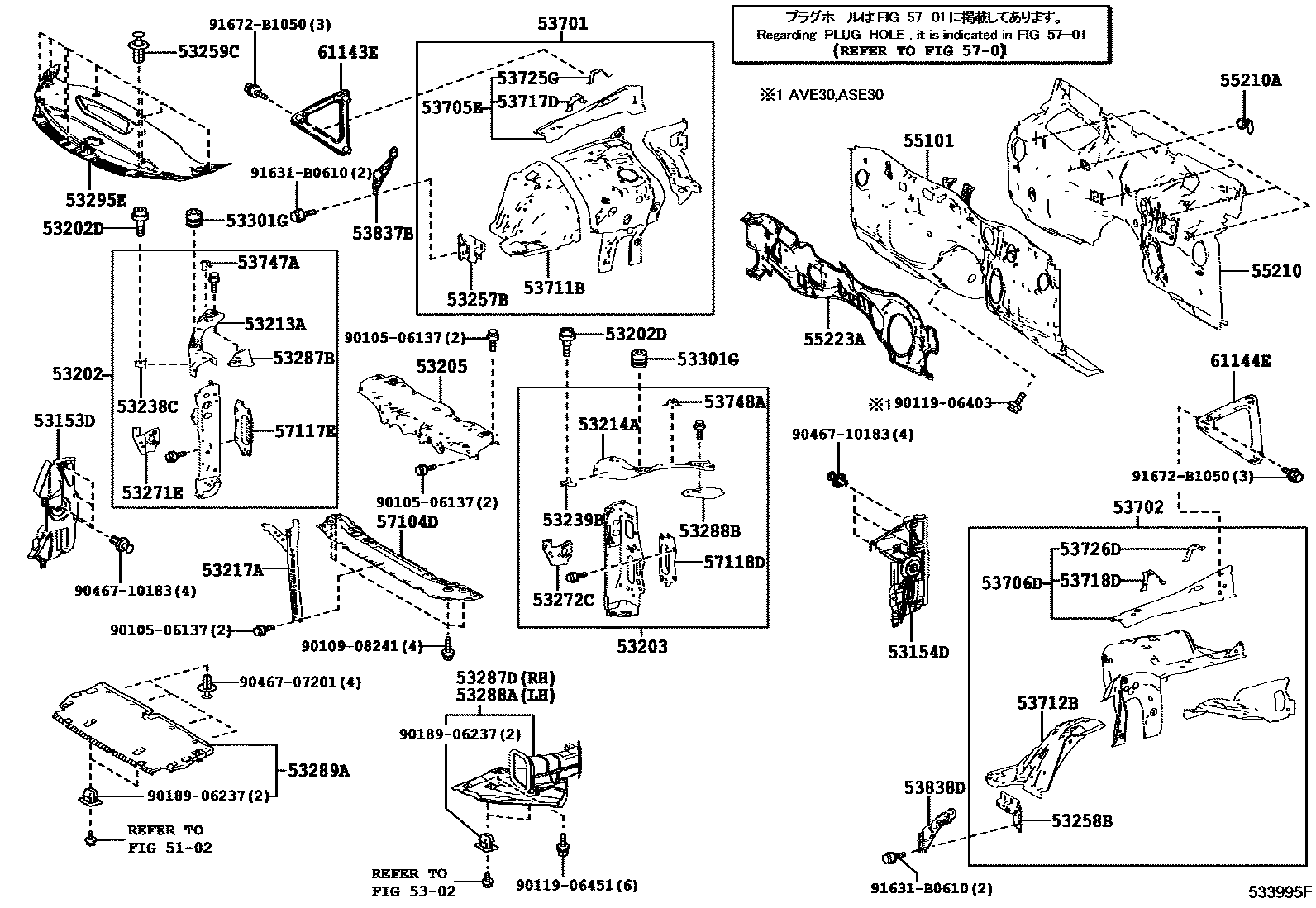

FRONT FENDER APRON & DASH PANEL
