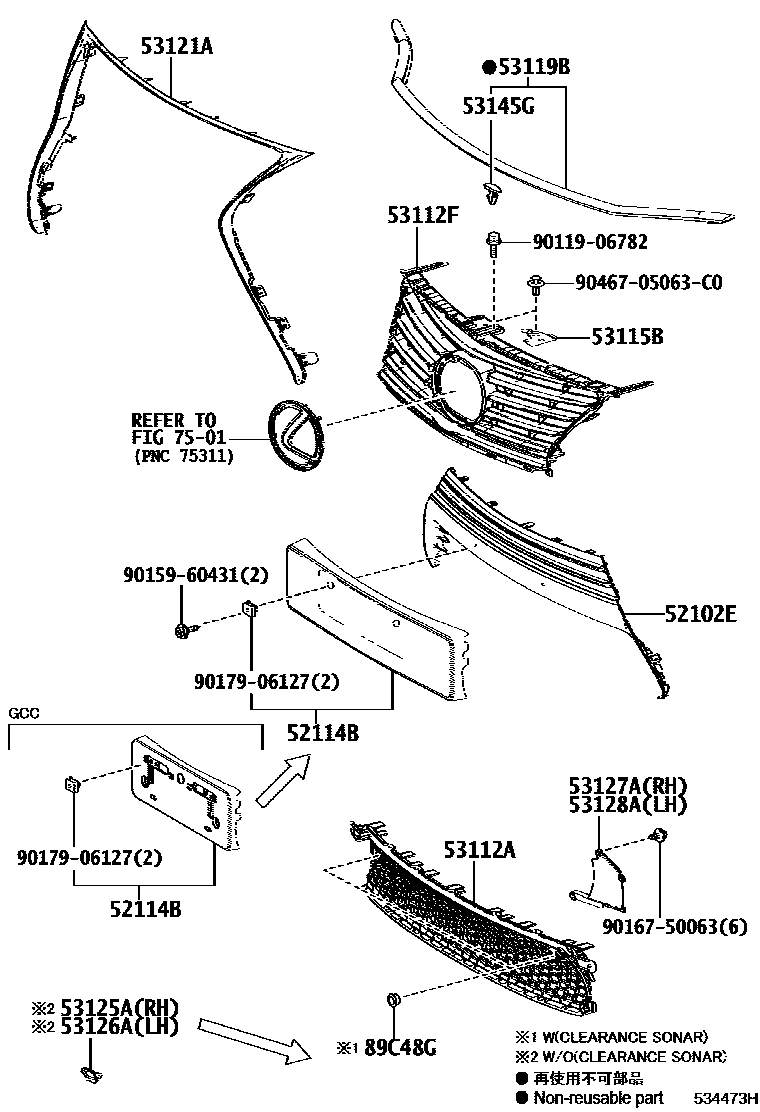

RADIATOR GRILLE

0001 1 0002 1F SPORT OR THE CRAFTED LINE 0003 1 0004 1F SPORT 0005 1 0006 1F SPORT

52102EEXTENSION SUB-ASSY, FRONT BUMPER

main52102-53010iASE30,GSE31..GCC201304-201610

main52102-53030iAVE30,GSE3#..ARL,CHI,GEN201304-201610

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-53190iGSE3#..GCC201304-201610

main52114-53250iASE30,AVE30,GSE31..ARL,GEN201304-201610

main52114-53290iASE30..CHI201508-201610

main52114-53310iASE30,GSE31..GCC201610-202009

main52114-53330iASE30,AVE30,GSE31..ARL,GEN201610-202009

main52114-53340iASE30..CHI201705-202009

main52114-53410iASE30,GSE31..GCC202009-202110

main52114-53430iASE30,AVE30..ARL,GEN202009-202309

main52114-53460iGSE31..GEN202009-202110

F SPORT

53112AGRILLE, RADIATOR, LOWER

main53113-53060iAVE30,GSE3#201304-201610

main53113-53210iASE30,GSE31..GCC201610-202009

main53113-53230iASE30,AVE30,GSE31..ARL,CHI,GEN201610-202009

53112FGRILLE, RADIATOR, INSIDE

main53112-53050iAVE30,GSE3#201304-201305

main53112-53051iASE30,AVE30,GSE31201305-201610

main53112-53300iASE30,AVE30,GSE31201610-202009

53115BBRACKET, RADIATOR GRILLE

main53115-53010iASE30,AVE30,GSE31201304-201610

main53115-53020iASE30,AVE30,GSE31201610-202009

53119BPROTECTOR, RADIATOR GRILLE

main53119-53060iASE30,AVE30,GSE31201304-201610

main53119-53070iASE30,AVE30,GSE31201610-202009

53121AMOULDING, RADIATOR GRILLE

main52711-53040iAVE30,GSE3#201304-201305

main52711-53041iASE30,AVE30,GSE31201305-201610

main53121-53030iASE30,AVE30,GSE31..ARL,GCC,GEN201610-201710

main53121-53090iASE30..CHI201705-202009

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-53011iAVE30,GSE3#201304-201610

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-53011iASE30,AVE30,GSE31201304-201610

53127AGRILLE, RADIATOR, LOWER RH

main53127-53010iGSE3#..GCC201304-201610

53128AGRILLE, RADIATOR, LOWER LH

main53128-53010iASE30,GSE31..GCC201304-201610

53145GCLIP, RADIATOR GRILLE

main53145-60030iASE30,AVE30,GSE31201304-202009

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-53050iASE30..GEN202009-202110

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),RH

main89348-53050iASE30..GEN202009-202110

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RH

main89348-53050iASE30..GEN202009-202110

CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202310

RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202110

F SPORT&CLEARANCE & BACK SONAR-WITHOUT,RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202110

F SPORT&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA),RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202110

CLEARANCE & BACK SONAR-WITH,RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202110

CLEARANCE & BACK SONAR-WITH(*RCTA),RH

main89348-53050iASE30,AVE30,GSE31..ARL202009-202110

CLEARANCE & BACK SONAR-WITHOUT,RH

main89348-53060iASE30,AVE30,GSE31..ARL,GCC202009-202310

LH

main89348-53060iASE30,AVE30,GSE31..ARL,GCC202009-202110

CLEARANCE & BACK SONAR-WITH,LH

main89348-53060iASE30,AVE30,GSE31..ARL,GCC202009-202110

CLEARANCE & BACK SONAR-WITH(*RCTA),LH

main89348-53060iASE30,AVE30,GSE31..ARL,GCC202009-202110

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),LH

main89348-53060iASE30,AVE30,GSE31..ARL,GCC202009-202110

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),LH

9011906782

main90119-06782

9015960431

main90159-60431

9016750063

main90167-50063

9017906127

main90179-06127

9046705063C0

main90467-05063C0

19 parts on this diagram · 6 diagrams in section
