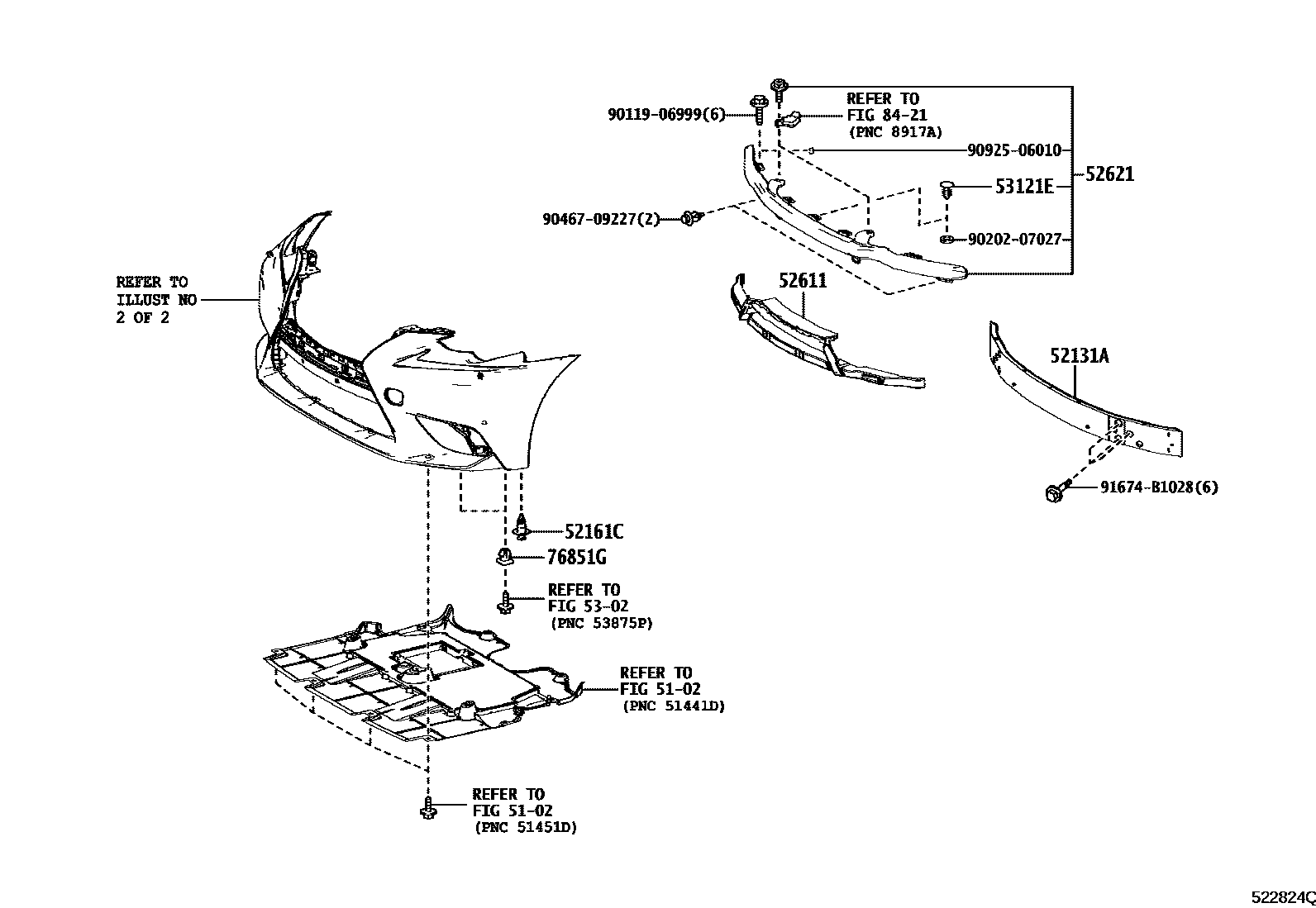

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT 0005 1 0006 1F SPORT 0007 1 0008 1F SPORT 0009 1 0010 1 0011 1 0012 1F SPORT 0013 1F SPORT

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52131AREINFORCEMENT, FRONT BUMPER

main52131-53070iAVE30,GSE3#201304-201508

main52131-53110iASE30,AVE30,GSE31201610-202009

52161CPIECE, FRONT BUMPER

main52161-16010×2iAVE30,GSE3#..ARL,CHI,GEN201304-201508

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53150iASE30,AVE30,GSE31201508-201610

main52611-53190iASE30,AVE30,GSE31201610-202009

main52611-53230iGSE31..LHD;ASE30,AVE30202111

main52611-53170iGSE3#..GCC; GSE30..CHI201410-201508

THE CRAFTED LINE; THE CRAFTED LINE&FRONT FOG LAMP-WITHOUT

52621CHAMBER, POP UP HOOD

main52621-53020iAVE30,GSE3#201304-201508

main52621-53040iASE30,AVE30,GSE31201610-202009

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-08186-C0iAVE30,GSE3#201304-201508

BLACK

main90467-08186-C3iASE30,AVE30,GSE31201610-202009

BLACK

76851GGROMMET, SCREW, NO.1

main90189-06193×2iAVE30,GSE3#..ARL,CHI,GEN201304-201508

8421AIR BAG

→ Go to FIG 84-21

9011906999

main90119-06999

9020207027

main90202-07027

9046709227

main90467-09227

9092506010

main90925-06010

91674B1028

main91674-B1028

14 parts on this diagram · 13 diagrams in section
