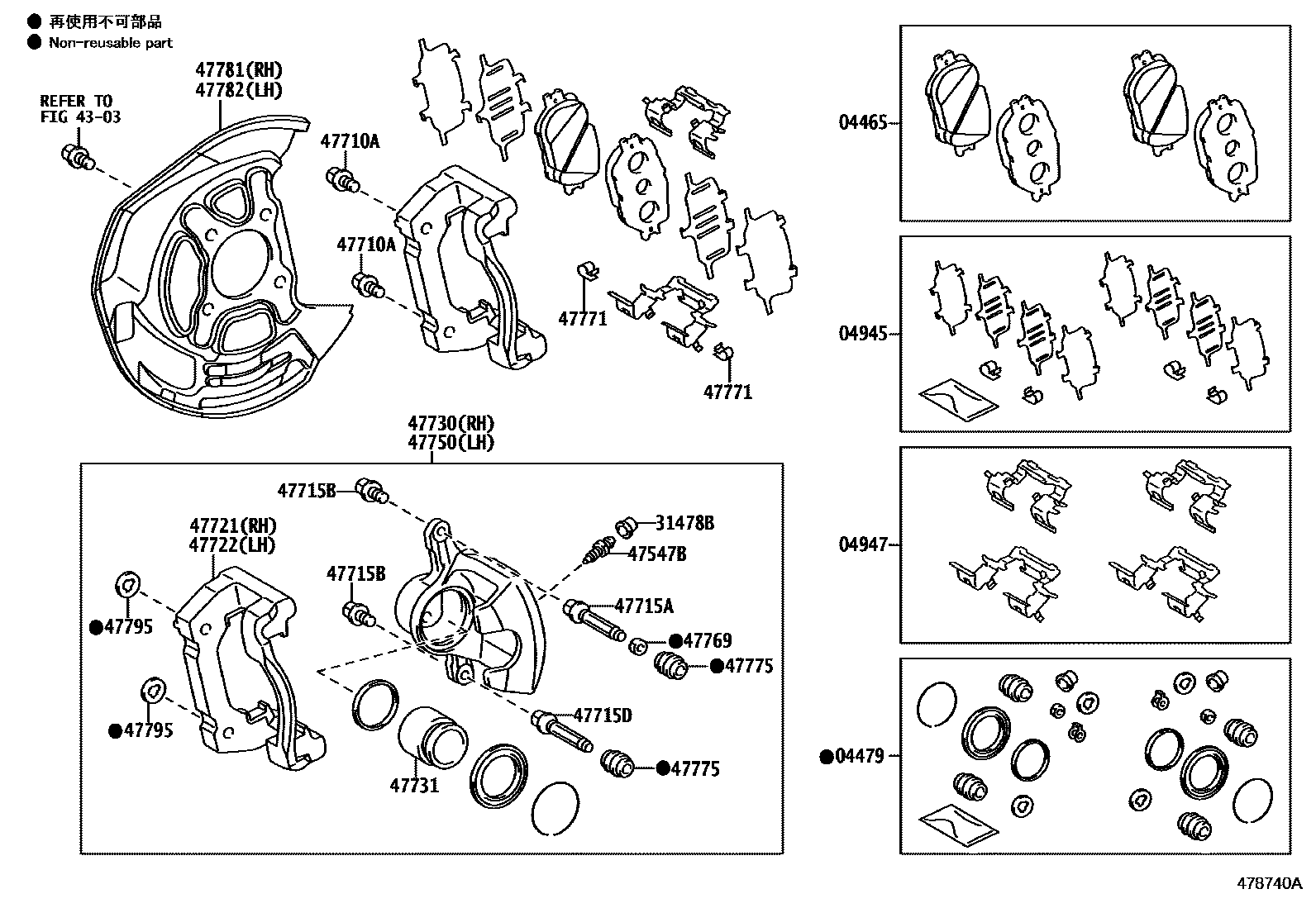

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1F-SPORT OR THE CRAFTED LINE 0003 1 0004 1 0005 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-24050iGSE31..GEN;ASE30,AVE30..ARL,GEN202111

MARK ADVICS VC115

main04465-30470iGSE31..ARL,GEN201304-201406

MARK ADVICS PV565H

main04465-30480iAVE30,GSE30..ARL,CHI,GEN201304-201508

MARK NBK D6893H

main04465-30500iGSE31..GCC201304-201508

MARK TEXTAR T4146,F SPORT

main04465-30510iASE30,GSE31..ARL,CHI,GEN201508-201610

MARK ADVICS PV565H

main04465-53040supersedes 04465-30480iGSE30..GCC201304-201508

MARK TEXTAR T4146,F SPORT

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iASE30,GSE31..GCC202009-202110

main04478-30250supersedes 04478-30260iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

main04478-30260iAVE30,GSE30..ARL,CHI,GEN201304-201508

main04479-50130iASE30,GSE31..ARL,CHI,GEN201508-201610

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-24020iASE30,AVE30,GSE31..ARL,GEN202009-202110

main04945-30170iAVE30,GSE30..ARL,CHI,GEN201304-201508

main04945-30330iGSE31..ARL,GEN201304-201407

main04945-30350iASE30,GSE31..GCC201508-201610

TAIWAN SPEC&F SPORT

main04945-30370iASE30,GSE31..ARL,CHI,GEN201610-202009

main04945-53050supersedes 04945-30170iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSE31201304-201508

main04947-30140iAVE30,GSE30..ARL,CHI,GEN201304-201508

main04947-53020supersedes 04947-30140iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iASE30,GSE31201508-201610

main31478-30010×2iAVE30,GSE30201304-201508

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iAVE30,GSE30201304-201508

main47547-50010×2iASE30,GSE31201610-202009

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iAVE30,GSE3#201304-201508

*12-1.25PX45-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070×2iAVE30,GSE30201304-201508

main47715-50010×2iAVE30201905-202009

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iAVE30201508-201610

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33050×2iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47715-52190×2supersedes 47715-33050iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30521iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47721-53060supersedes 47721-30521iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30521iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47722-53060supersedes 47721-30521iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iASE30,GSE31201508-201610

main47730-30521iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47730-53060supersedes 47730-30521iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47731PISTON, FRONT DISC BRAKE

main47731-33070×2iAVE30,GSE30..ARL,CHI,GEN201304-201508

sub47731-30570

main47731-50070×8iGSE31..ARL202111-202309

main47731-53060×2supersedes 47731-33070iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

main47731-12A10×2supersedes 47731-33070iAVE30201905-202009

F SPORT

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iASE30,GSE31201610-202009

main47750-30521iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47750-53060supersedes 47750-30521iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iAVE30,GSE30201304-201508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090×4iAVE30,GSE30..ARL,CHI,GEN201304-201508

main47771-33340×4supersedes 47771-30090iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010×4iAVE30201610-202009

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iASE30,GSE31201610-202009

main47781-30220iAVE30201508-201610

main47781-30260iGSE31..ARL202111-202309

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iASE30,GSE31201610-202009

main47782-30220iAVE30201610-202009

main47782-30260iGSE31..LHD;ASE30,AVE30202111

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520×4iAVE30,GSE30201304-201508

22 parts on this diagram · 5 diagrams in section
