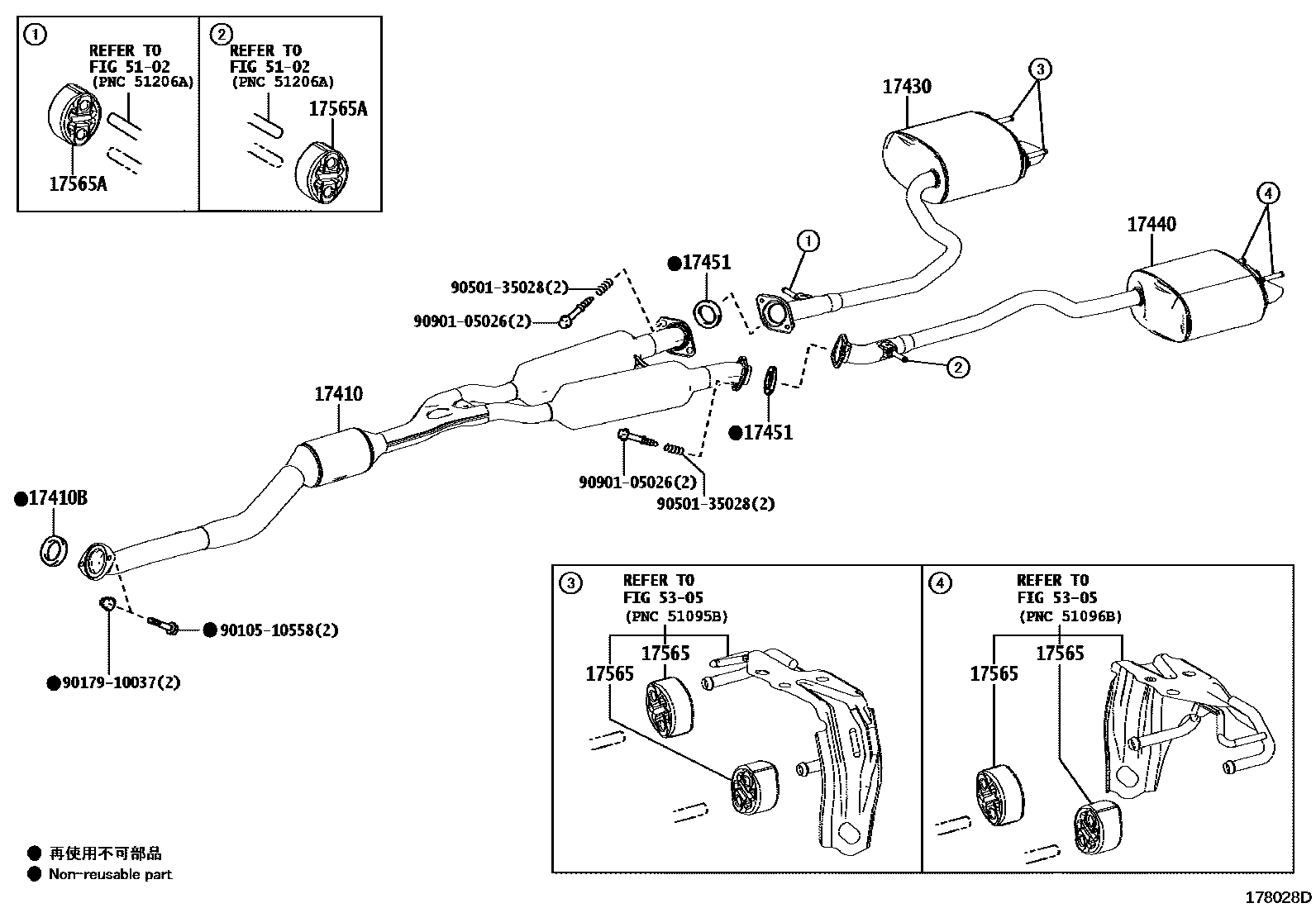

17410PIPE ASSY, EXHAUST, FRONT

main17410-31G00i201304-201508

main17410-31G20i201304-201508

*114=TOYOTA/RA4/Y

main17410-31M20i202111-202309

main17410-36370i201304-201508

*114=TOYOTA/UE6/Y

main17410-36500i201610-202009

17410BGASKET, EXHAUST PIPE

main90917-06078×2i202009-202110

main90917-06090i201508-201610

17430PIPE ASSY, EXHAUST, TAIL

main17430-31C90i201508-201610

main17430-31D00i201304-201508

main17430-31D50i201610-202009

main17430-31G30supersedes 17430-31G40i202009-202110

F SPORT

main17430-36230i201610-202009

main17430-36250i201610-202009

main17430-36450i201508-201610

main17430-36310supersedes 17430-36450i202009-202110

F SPORT

main17430-36630supersedes 17430-36621i202009-202110

F SPORT

main17430-36631supersedes 17430-36621i202302

F SPORT

17440PIPE, EXHAUST TAIL, LH

main17440-31170i201304-201508

main17440-31180i201304-201508

main17440-31210i201610-202009

main17440-31330supersedes 17440-31340i202111

F SPORT

main17440-36020i201304-201508

main17440-36090i201508-201610

main17440-36110i201610-202009

main17440-36130supersedes 17440-36090i202009-202110

F SPORT

main17440-36170supersedes 17440-36161i202009-202110

F SPORT

main17440-36171supersedes 17440-36161i202302

F SPORT

17451GASKET, EXHAUST PIPE

main17451-28032×2i201304-201508

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×4i201304-201508

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i201304-201508

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010510558

main90105-10558

9017910037

main90179-10037

9050135028

main90501-35028

9090105026

main90901-05026
