V-BELT

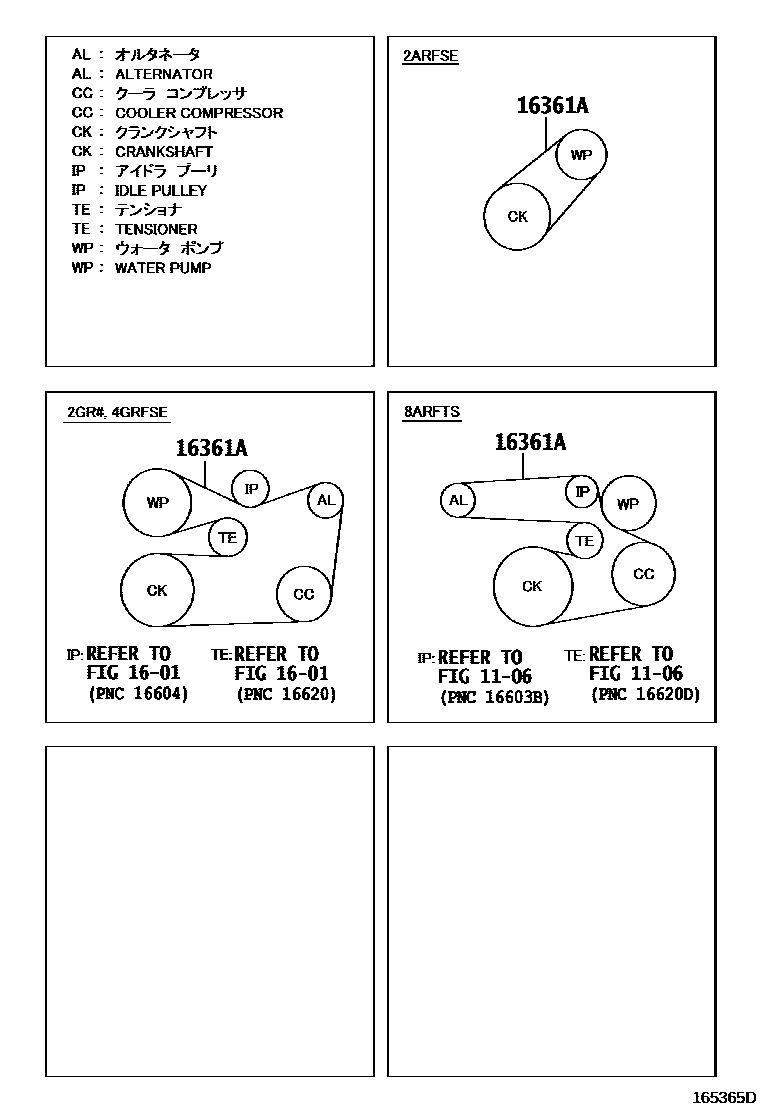

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02714i201304-201508

main90916-02727i202009-202110

main90916-02728i202111

main90916-02733supersedes 90916-02727i202310

main90916-02742i201610-202009

main99367-C1550i201610-201611

main99367-K1550i201611-201710

3 parts on this diagram · 1 diagram in section
