EPC Data

RADIATOR & WATER OUTLET

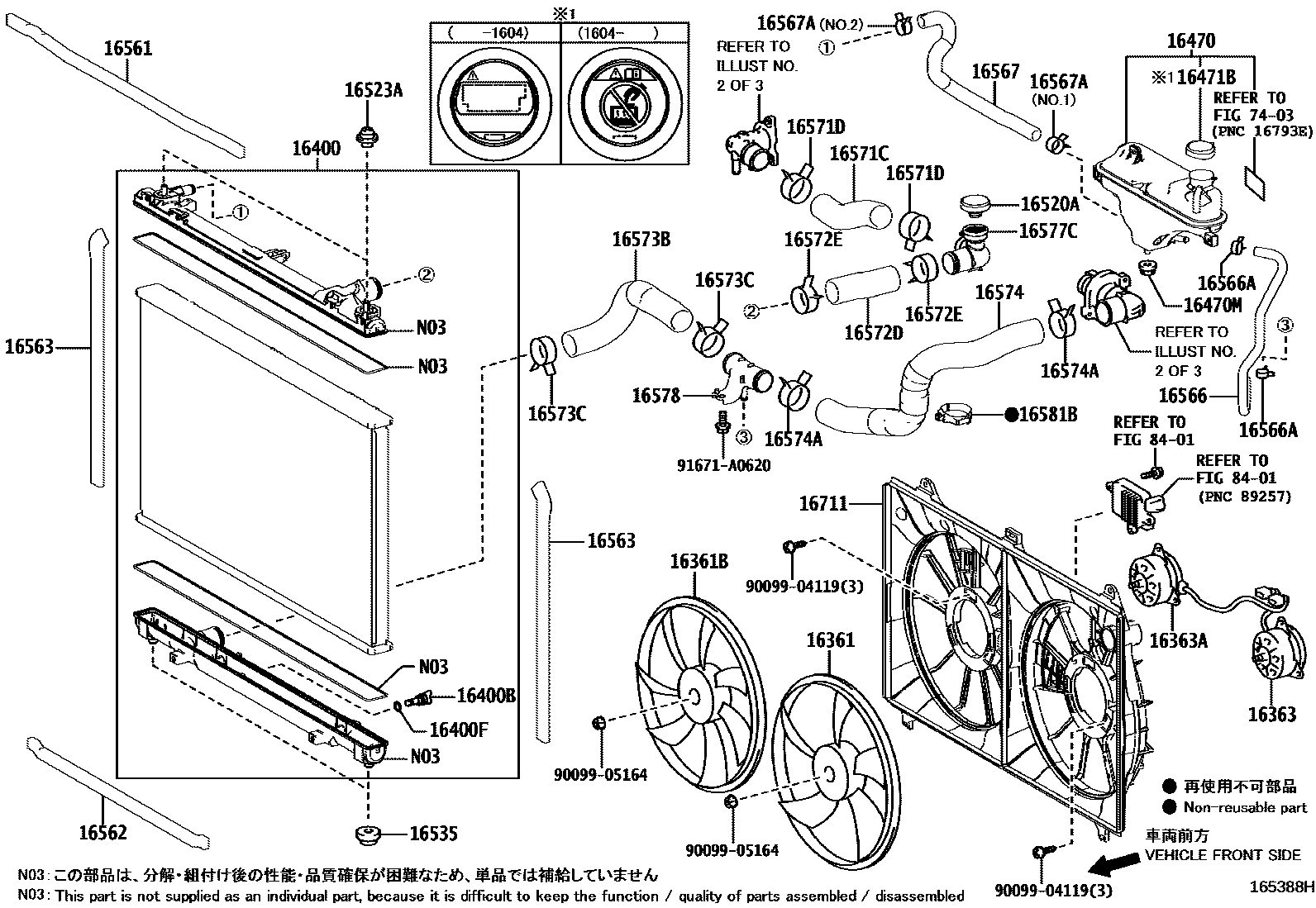

Parts diagram
16361FAN
main16361-31410i201304-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-31410i201304-201610
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-31410i202009-202309
main16361-31420i201304-201508
BRUNEI SPEC
main16361-31420i201304-201610
INDONESIA SPEC
main16361-31420i201304-202110
SINGAPORE SPEC
main16361-31420i201304-201508
THAILAND SPEC
main16361-31420i201304-202009
PHILIPPINE SPEC
main16361-31420i201304-201710
TOWING PACKAGE-WITH(1500KG)
main16361-31420i201304-202110
MALAYSIA SPEC
main16361-31420i202111
main16361-36240i201508-201610
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36240i201508-202009
TOWING PACKAGE-WITH(1500KG)
main16361-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&TOWING PACKAGE-WITH(1500KG)
main16361-36240i201508-201610
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36240i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36240i202009-202110
PERU SPEC
main16361-36240i201610-202110
BRUNEI SPEC
main16361-36240i202009-202110
SINGAPORE SPEC
main16361-36240i202009-202110
THAILAND SPEC
main16361-36240i201610-202009
SOUTH AFRICA SPEC
main16361-36240i201610-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-36240i201610-202110
MALAYSIA SPEC
main16361-36240i202009-202110
VIETNAM SPEC
main16361-36240i202111
main16361-38110i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16361-38110i201508-202310
16361BFAN, NO.2
main16361-31430i201304-201508
main16361-31440i201304-202110
MALAYSIA SPEC
main16361-31440i201304-201508
BRUNEI SPEC
main16361-31440i201304-201610
INDONESIA SPEC
main16361-31440i201304-202110
SINGAPORE SPEC
main16361-31440i201304-201508
THAILAND SPEC
main16361-31440i201304-202009
PHILIPPINE SPEC
main16361-31440i201304-201710
TOWING PACKAGE-WITH(1500KG)
main16361-31440i202111
main16361-36250i201610-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-36250i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36250i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&TOWING PACKAGE-WITH(1500KG)
main16361-36250i201508-201610
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36250i201508-201610
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36250i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)
main16361-36250i201508-202009
TOWING PACKAGE-WITH(1500KG)
main16361-36250i202009-202110
VIETNAM SPEC
main16361-36250i202009-202110
PERU SPEC
main16361-36250i201610-202110
BRUNEI SPEC
main16361-36250i202009-202110
SINGAPORE SPEC
main16361-36250i202009-202110
THAILAND SPEC
main16361-36250i201610-202110
MALAYSIA SPEC
main16361-36250i202111
main16361-36250i201610-202009
SOUTH AFRICA SPEC
main16361-38040i201304-201610
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-38040i201304-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16361-38040i202009-202309
main16361-38120i201508-202310
main16361-38120i201710-202009
TOWING PACKAGE-WITH(1500KG)
16363MOTOR, COOLING FAN
main16363-31300i201304-201610
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-31300i202009-202310
main16363-31300i201304-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-31430i201304-201610
INDONESIA SPEC
main16363-31430i201304-201508
BRUNEI SPEC
main16363-31430i201304-202110
SINGAPORE SPEC
main16363-31430i201304-201508
THAILAND SPEC
main16363-31430i201304-202110
MALAYSIA SPEC
main16363-31430i201304-202009
PHILIPPINE SPEC
main16363-31430i201304-201710
TOWING PACKAGE-WITH(1500KG)
main16363-31430i202111
main16363-36240i201508-201610
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201508-202009
TOWING PACKAGE-WITH(1500KG)
main16363-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&TOWING PACKAGE-WITH(1500KG)
main16363-36240i201508-201610
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i202009-202110
VIETNAM SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
PERU SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
TYPE B:REFER ILLUST.
main16363-36240i202009-202110
BRUNEI SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
SINGAPORE SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
THAILAND SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
MALAYSIA SPEC,TYPE B:REFER ILLUST.
main16363-36240i201610-202009
SOUTH AFRICA SPEC
main16363-36240i201610-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-36240i201610-202009
BRUNEI SPEC
main16363-36240i201610-202009
MALAYSIA SPEC
main16363-38160i202009-202310
TYPE A:REFER ILLUST.
main16363-38160i201508-202009
main16363-38160i201710-202009
TOWING PACKAGE-WITH(1500KG)
16363AMOTOR, COOLING FAN, NO.2
main16363-31400i201304-201610
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-31400i201304-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-31400i202009-202310
main16363-31440i201304-202009
PHILIPPINE SPEC
main16363-31440i201304-201508
BRUNEI SPEC
main16363-31440i201304-201610
INDONESIA SPEC
main16363-31440i201304-202110
SINGAPORE SPEC
main16363-31440i201304-201508
THAILAND SPEC
main16363-31440i201304-202110
MALAYSIA SPEC
main16363-31440i201304-201710
TOWING PACKAGE-WITH(1500KG)
main16363-31440i202111
main16363-36240i201508-201610
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i202009-202110
TYPE B:REFER ILLUST.
main16363-36240i201508-202009
TOWING PACKAGE-WITH(1500KG)
main16363-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&TOWING PACKAGE-WITH(1500KG)
main16363-36240i201508-201610
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)
main16363-36240i201610-202009
SOUTH AFRICA SPEC
main16363-36240i201610-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16363-36240i201610-202009
BRUNEI SPEC
main16363-36240i201610-202009
MALAYSIA SPEC
main16363-36240i202009-202110
BRUNEI SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
SINGAPORE SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
THAILAND SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
MALAYSIA SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
VIETNAM SPEC,TYPE B:REFER ILLUST.
main16363-36240i202009-202110
PERU SPEC,TYPE B:REFER ILLUST.
main16363-38160i202009-202310
TYPE A:REFER ILLUST.
main16363-38160i201508-202009
main16363-50040i201304-201508
16400RADIATOR ASSY
main16400-31870i201304-201710
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16400-31870i201304-201710
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16400-31880i201304-201710
TOWING PACKAGE-WITH(1500KG)
main16400-31B80i202009-202309
main16400-31B80i201710-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16400-36130i201508-202110
main16400-36290i201304-201610
main16400-36310i201710-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16400-36310i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16400-36310i201610-202110
16400BPLUG, RADIATOR DRAIN COCK
main16417-21280i201304-202110
16400FPACKING(FOR RADIATOR DRAIN COCK)
main16492-21050i201304-202110
16470TANK ASSY, RADIATOR RESERVE
main16470-31180i201304-201603
sub16470-31181
main16470-31181i201604-201710
main16470-36030i201304-201409
sub16470-36031
main16470-36031i201410-201603
sub16470-36032
main16470-36032i201604-202309
16470MGROMMET
main90480-18010i201304-202309
16471CAP SUB-ASSY, RESERVE TANK
main16405-31130i201304-201710
16471BCAP, RESERVE TANK
main16475-28140i201604-202309
main16475-37010i201304-201410
sub16475-28140
main16475-37011i201410-201604
sub16475-28140
16520ACAP SUB-ASSY, WATER FILLER
main16501-36010i201304-201410
sub16501-36011
main16501-36011i201410-201506
sub16501-36012
main16501-36012i201506-201603
sub16501-36013
main16501-36013i201604-202110
16523ACUSHION, RADIATOR SUPPORT
main16523-38010i201304-202309
16535SUPPORT, RADIATOR, LOWER
main90480-40021i201304-201603
main90480-40022i201604-202309
16561SEAL, RADIATOR TO SUPPORT, NO.1
main16561-31110i201304-202309
16562SEAL, RADIATOR TO SUPPORT, NO.2
main16562-31060i201304-202110
NO.2
main16562-31060i201610-202309
main16562-31060i201710-202009
NO.1:REFER ILLUST.
main16562-31070i201304-201502
NO.1
main16562-31110i201508-202110
NO.3
main16562-31110i201710-202009
NO.2:REFER ILLUST.
main16562-31130i201508-202110
NO.1
main16562-31130i201710-202009
NO.3:REFER ILLUST.
main16562-31170i201502-201508
NO.3
main16562-31180i201502-201508
NO.4
16563SEAL, RADIATOR TO SUPPORT, NO.3
main16563-31040i201304-202309
16566HOSE, RESERVE TANK OUTLET
main16566-31100i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16566-31100i202009-202110
main16566-31110i202009-202309
main16566-31110i201710-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16566-31110i201710-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16566-36010i201304-201703
sub16566-36011
main16566-36011i201704-202110
16566ACLIP(FOR RESERVE TANK OUTLET)
main96137-41701i201304-202309
16567HOSE(FOR RADIATOR RESERVE TANK)
main16567-36020i201304-201610
main16567-36040i201508-202309
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
main90466-21004i201508-202309
NO.1:REFER ILLUST.
main90466-21004i201304-201610
NO.1,2:REFER ILLUST.
main96136-42701i201508-202309
NO.2:REFER ILLUST.
16571CHOSE, RADIATOR, NO.1
main16571-31350i201304-201710
main16571-31490i201710-202309
main16571-36150i201304-202110
main16571-36250i201508-202110
16571DCLIP, RADIATOR HOSE, NO.1
main90466-39002i201304-202309
16572DHOSE, RADIATOR, NO.2
main16572-31350i201304-201710
main16572-31560i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16572-31560i202009-202110
main16572-31570i201710-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16572-31570i201710-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16572-31570i202009-202309
main16572-36140i201304-202110
main16572-36210i201508-202110
16572ECLIP, RADIATOR HOSE, NO.2
main90466-39002i201304-202309
16573BHOSE, RADIATOR, NO.3
main16573-31150i202009-202110
main16573-31150i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16573-31160i201710-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16573-31160i201710-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16573-31160i202009-202309
main16573-36020i201304-202110
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
main90466-39002i201304-202309
16574HOSE, RADIATOR, NO.4
main16574-36010i201304-202110
main16574-36030i201508-202110
16574ACLIP, RADIATOR HOSE, NO.4
main90466-39002i201304-202110
16577CPIPE, RADIATOR
main16577-31030i202009-202309
main16577-31030i201710-202009
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
main16577-31030i201710-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16577-31080i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16577-31080i202009-202110
main16577-36020i201304-202110
16578PIPE, RADIATOR, NO.2
main16578-36010i201304-202110
16581CLAMP, HOSE(FOR WATER HOSE)
main16581-31010i201304-201710
main16581-33080i201508-202110
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
main16581-28070i201304-202110
16711SHROUD, FAN
main16711-31600i201304-201508
main16711-31610i201304-201508
SINGAPORE SPEC
main16711-31610i201304-201508
THAILAND SPEC
main16711-31610i201508-202309
main16711-31610i201304-201508
MALAYSIA SPEC
main16711-31610i201304-201508
BRUNEI SPEC
main16711-31610i201304-201508
INDONESIA SPEC
main16711-36240i201508-202310
main16711-36240i201710-202009
TOWING PACKAGE-WITH(1500KG)
main16711-36250i201610-202110
MALAYSIA SPEC
main16711-36250i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)
main16711-36250i201508-201610
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&TOWING PACKAGE-WITH(1500KG)
main16711-36250i201508-201610
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)
main16711-36250i201508-201610
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)
main16711-36250i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)
main16711-36250i201508-202009
TOWING PACKAGE-WITH(1500KG)
main16711-36250i201610-202009
SOUTH AFRICA SPEC
main16711-36250i201610-202009
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
main16711-36250i201610-202110
BRUNEI SPEC
main16711-36250i202009-202110
SINGAPORE SPEC
main16711-36250i202009-202110
THAILAND SPEC
main16711-36250i202009-202110
VIETNAM SPEC
main16711-36250i202009-202110
PERU SPEC
main16711-36250i202111
7403
8401
9009904119
main90099-04119
9009905164
main90099-05164
91671A0620
main91671-A0620

39 parts on this diagram · 24 diagrams in section

RADIATOR & WATER OUTLET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
