AIR BAG

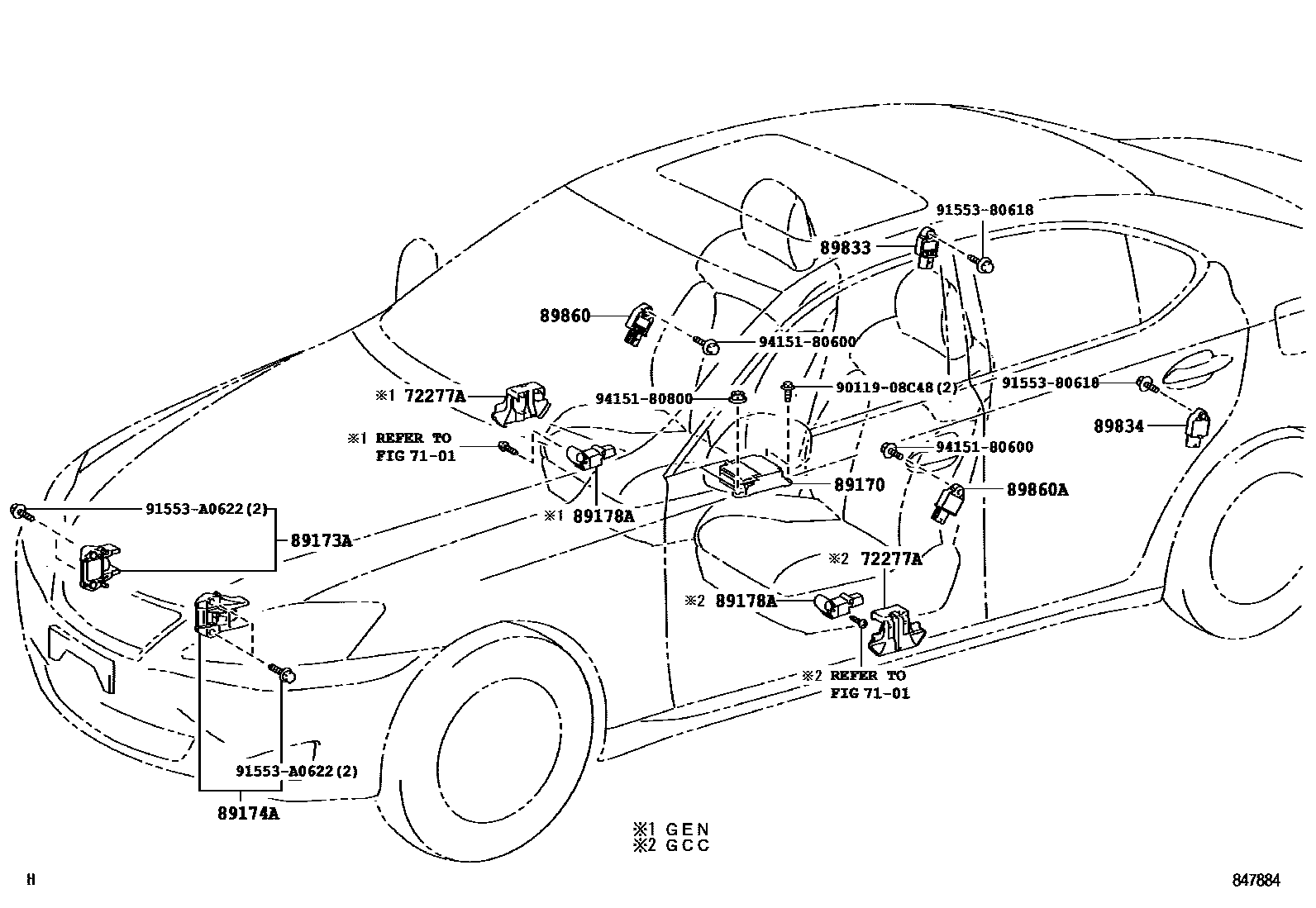

Parts diagram

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010i200604-201008

main72277-33021i200808-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER

89170SENSOR ASSY, AIRBAG

main89170-53080i200607-201208

main89170-53090i200604-201008

main89170-53480i201208

89173ASENSOR, AIRBAG, FRONT RH

main89173-09290i200607-200708

main89173-29255i200708-201208

main89173-39415i201208

main89173-59245i200808-201008

PHILIPPINE SPEC

main89173-59245i200808-201008

CHINA SPEC

main89173-59245i200604-200808

89174ASENSOR, AIRBAG, FRONT LH

main89173-09290i200607-200708

main89173-29255i200708-201208

main89173-39415i201208

main89173-59245i200808-201008

PHILIPPINE SPEC

main89173-59245i200604-200808

main89173-59245i200808-201008

CHINA SPEC

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040i200604-201008

main89178-33050i200808-201008

LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER

89833SENSOR, AIRBAG, REAR RH

main89831-0W040i200604-200707

main89831-22020i200708-201208

main89831-53040i201208

89834SENSOR, AIRBAG, REAR LH

main89831-0W040i200604-200707

main89831-22020i200708-201208

main89831-53040i201208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02020i200604-200707

main89831-53010i200708-201208

main89831-53030i201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02020i200604-200707

main89831-53010i200708-201208

main89831-53030i201208

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180600

main94151-80600

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
