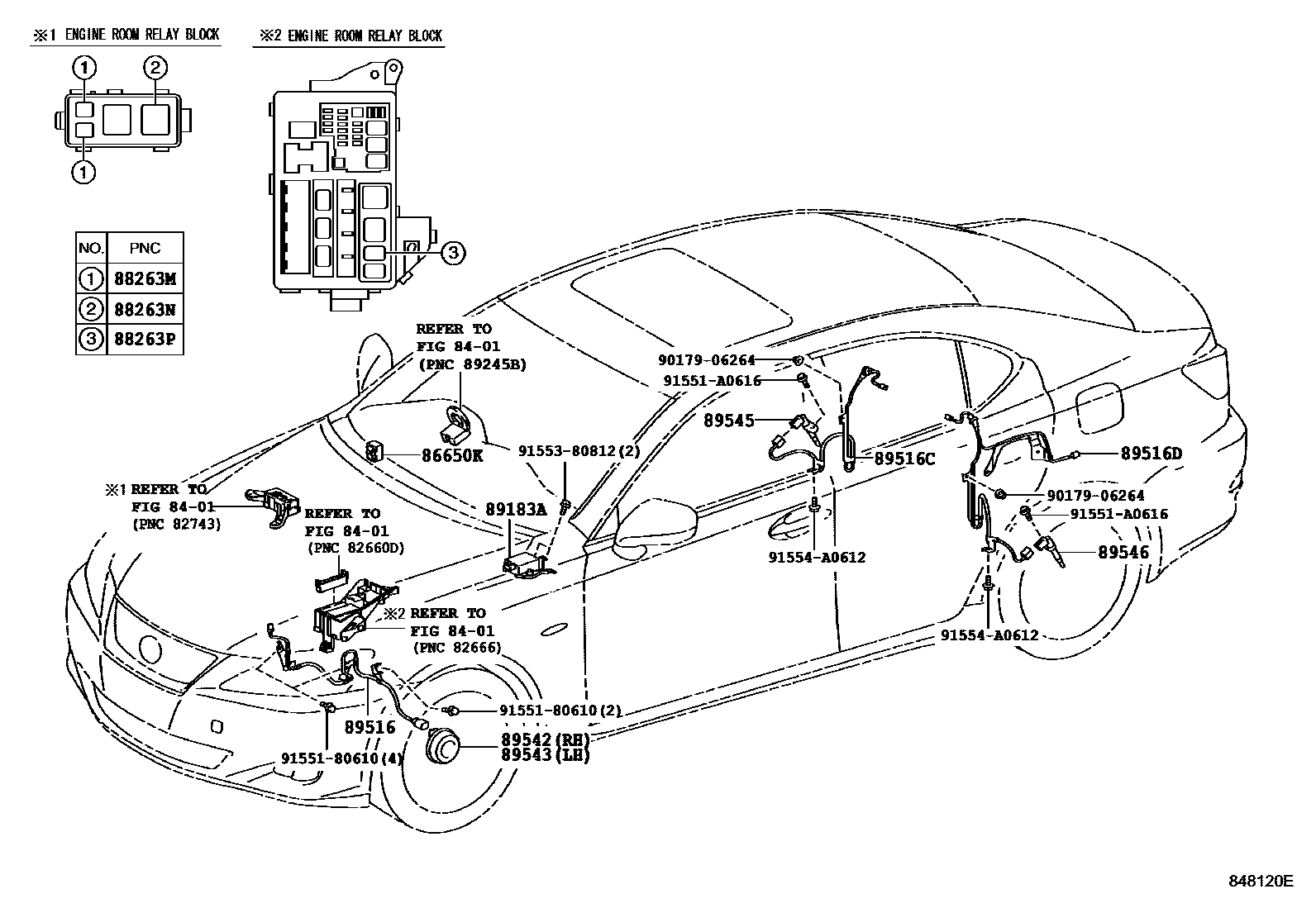

ABS & VSC

0001 1 0002 1 0003 1 0004 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGSE22200604-200708

main86652-50010iGSE22200808-201008

88263MRELAY, ABS SOLENOID

main88263-32070iGSE22200604-200808

88263NRELAY, ABS MOTOR

main88263-21010iGSE22200604-200808

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSE2#201008

89183ASENSOR, YAWRATE

main89180-22020iGSE22200604-200808

main89180-53010iGSE22200808-200907

main89180-53030iGSE2#201008

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGSE22200604-200808

RH

main89516-30030iGSE2#201008-201304

LH

main89516-30150iGSE2#201204-201302

RH

main89516-53060iGSE2#201303-201304

RH

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020iGSE22200604-200808

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22040iGSE2#201008-201304

main89516-22010iGSE20201008-201304

HEADLAMP-4,HALOGEN WITH/LEVELING

89542SENSOR, SPEED, FRONT RH

main89542-30260iGSE22200604-200808

89543SENSOR, SPEED, FRONT LH

main89543-30260iGSE22200604-200808

89545SENSOR, SPEED, REAR RH

main89545-30070iGSE22200604-200808

89546SENSOR, SPEED, REAR LH

main89546-30070iGSE22200604-200808

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

18 parts on this diagram · 4 diagrams in section
