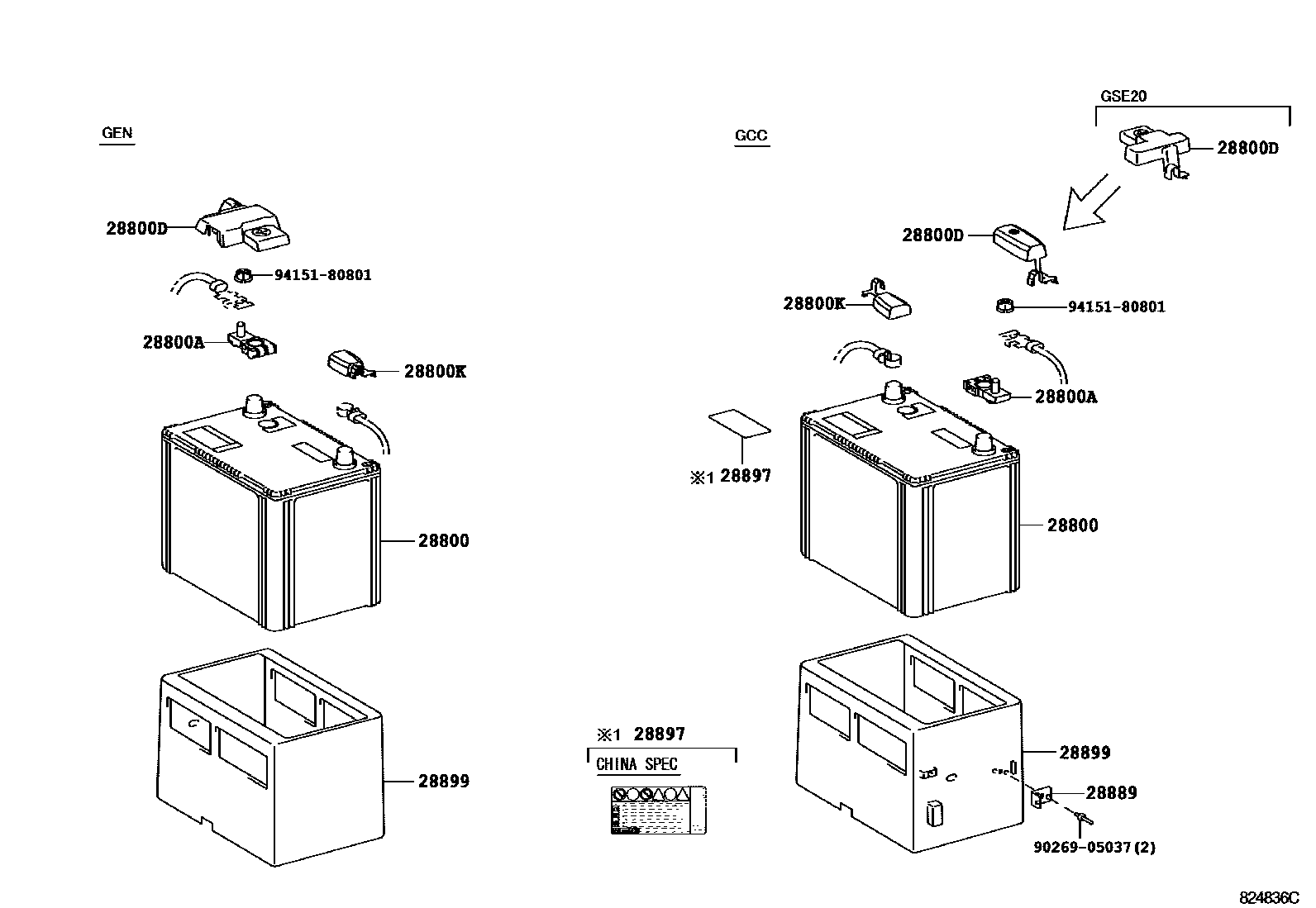

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38100i3GRFE,4GRFSE..GSE2#..GCC201008-201304

80D26R

main28800-54020i3GRFE..GSE22..GEN201008-201304

80D26L

main28800-54231i3GRFE..GSE22..GCC200808-200906

80D26R

main28800-54232i3GRFE..GSE22..GCC200607-200808

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i3GRFE..GSE22..GEN201008

main90982-05062i3GRFE..GSE22..GCC200607-200808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i3GRFE..GSE22..GEN200604-200808

main82821-50470supersedes 82821-30660i3GRFE..GSE22..GCC; 4GRFSE..GSE20201008

CHINA SPEC

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i3GRFE,4GRFSE..GSE2#201008

main82821-50450i3GRFE..GSE22200604-200808

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i3GRFE..GSE22..GCC200607-200808

28897PLATE, BATTERY CAUTION

main28897-31010i3GRFE..GSE22..GCC200911-201008

CHINA SPEC

main28897-50030i3GRFE..GSE22..GCC200607-200808

CHINA SPEC

28899INSULATOR, BATTERY

main28899-31020i3GRFE..GSE22..GEN200604-200808

main28899-31030i3GRFE..GSE22..GCC200607-200808

9026905037

main90269-05037

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
