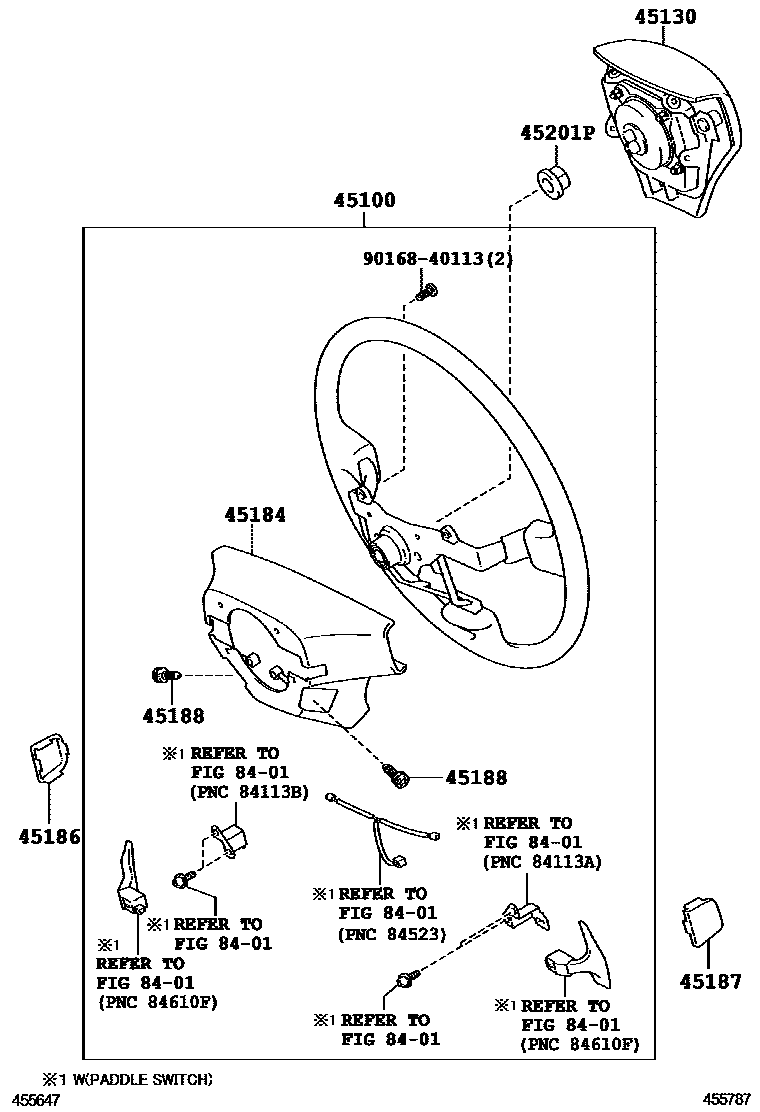

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-53180-C0i200604-200808

3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#

main45100-53350-C0i201008-201012

3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#

main45100-53351-C0i201012-201304

3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2#

main45100-53351-C4i201208-201304

3-SPOKE,LEATHER,BLACK & SADDLE TAN,TRIM4#

main45100-53290-C0i200908-201008

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK,TRIM01,11,21

main45100-53290-C1i200908-201008

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK,TRIM00,10,20

main45100-53290-C3i200908-201008

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK & DK.BROWN,TRIM03,13,23

main45100-53340-C0i201108-201304

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & BLACK,TRIM0#,1#,2#

main45100-53360-C0i201008-201012

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK,TRIM03,13,23

main45100-53360-C1i201008-201012

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK,TRIM11,21

main45100-53360-C2i201008-201012

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK,TRIM00

main45100-53361-22i201208-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK&DK.BROWN&SADDLETAN,TRIM43

main45100-53361-23i201208-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK & GRAY & SADDLETAN,TRIM41

main45100-53361-24i201208-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK<.BROWN&SADDLETAN,TRIM40

main45100-53361-C0i201012-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK & DK.BROWN & BLACK,TRIM03,13,23

main45100-53361-C1i201012-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK & GRAY & BLACK,TRIM11,21

main45100-53361-C2i201012-201304

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(PADDLE SWITCH),BLACK & LT.BROWN & BLACK,TRIM00

main45100-53410-C0i201008-201012

3-SPOKE,LEATHER,ART WORKS,BLACK & DK.BLUE,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(PADDLE SWITCH),ART WORKS,BLACK & DK.BLUE,TRIM2#

main45100-53411-C0i201012-201108

3-SPOKE,LEATHER,ART WORKS,BLACK&DK.BLUE&TURQUOISE,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(PADDLE SWITCH),ART WORKS,BLACK&DK.BLUE&TURQUOISE,TRIM2#

main45100-53421-C0i201108-201304

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),BLACK & LT.GRAY,TRIM2#

45130BUTTON ASSY, HORN

main45130-53080-C0i201008-201304

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,2#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-53020-C0i200808-201008

BLACK,TRIM0#,1#,2#

main45184-53010-C0i201108-201304

STEERING WHEEL-LEATHER,BLACK,TRIM0#,1#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53010-C0i200604-200808

BLACK,TRIM0#,1#,2#

main45186-53020-C0i201108-201304

CRUISE CONTROL-WITHOUT,BLACK,TRIM0#,1#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53010-C0i200604-200808

BLACK,TRIM0#,1#,2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200604-200808

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200604-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
