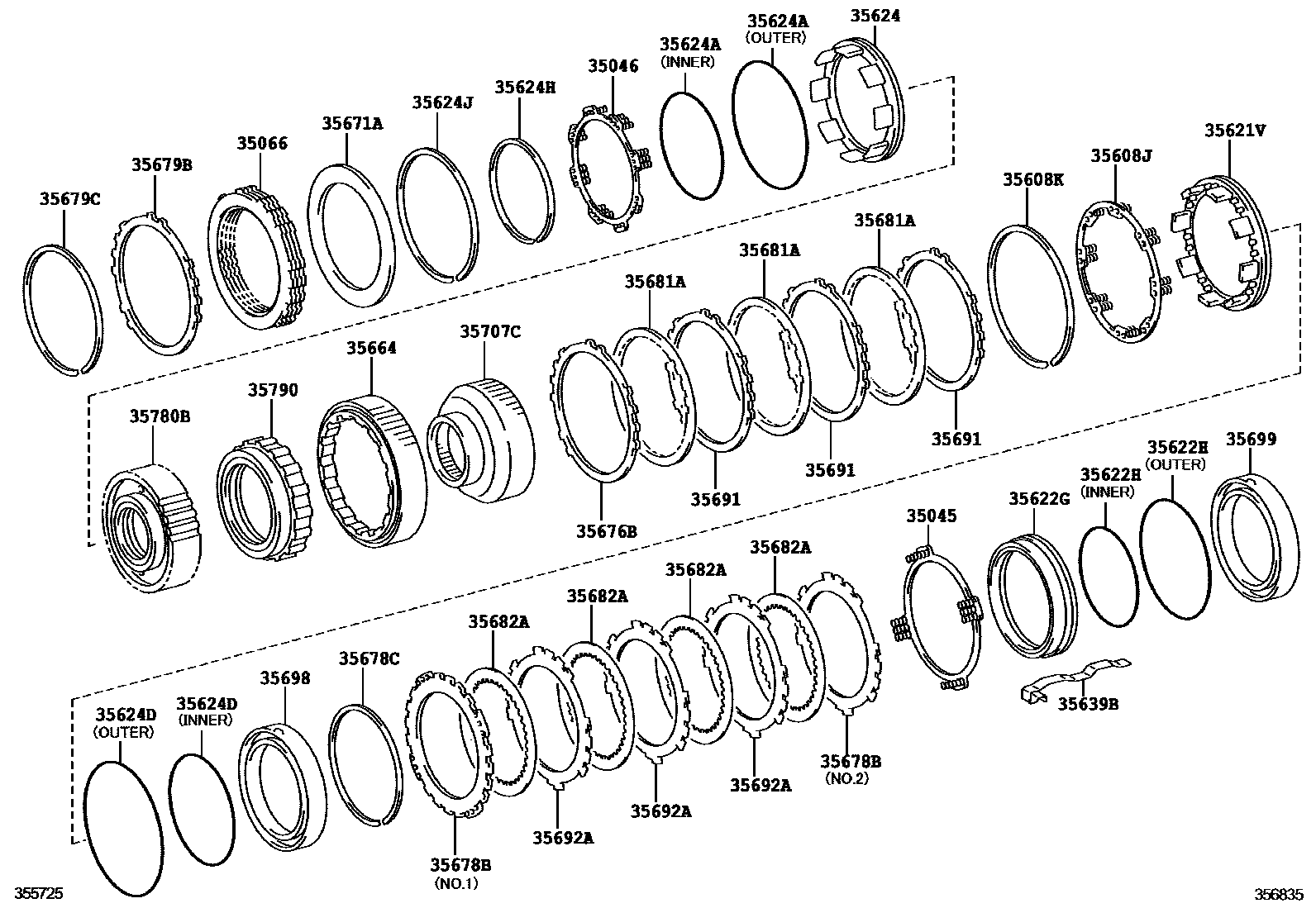

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
INNER
OUTER
INNER
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
INNER
OUTER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6,NO.1
T=2.0,NO.2
T=2.1,NO.2
T=2.2,NO.2
T=2.3,NO.2
T=2.4,NO.2
T=2.5,NO.2
T=2.6,NO.2
T=2.7,NO.2
T=4.6,NO.1
T=2.0 MARK 0,NO.2
T=2.1 MARK 1,NO.2
T=2.2 MARK 2,NO.2
T=2.3 MARK 3,NO.2
T=2.4 MARK 4,NO.2
T=2.5 MARK 5,NO.2
T=2.6 MARK 6,NO.2
T=2.7 MARK 7,NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
30 parts on this diagram · 2 diagrams in section
