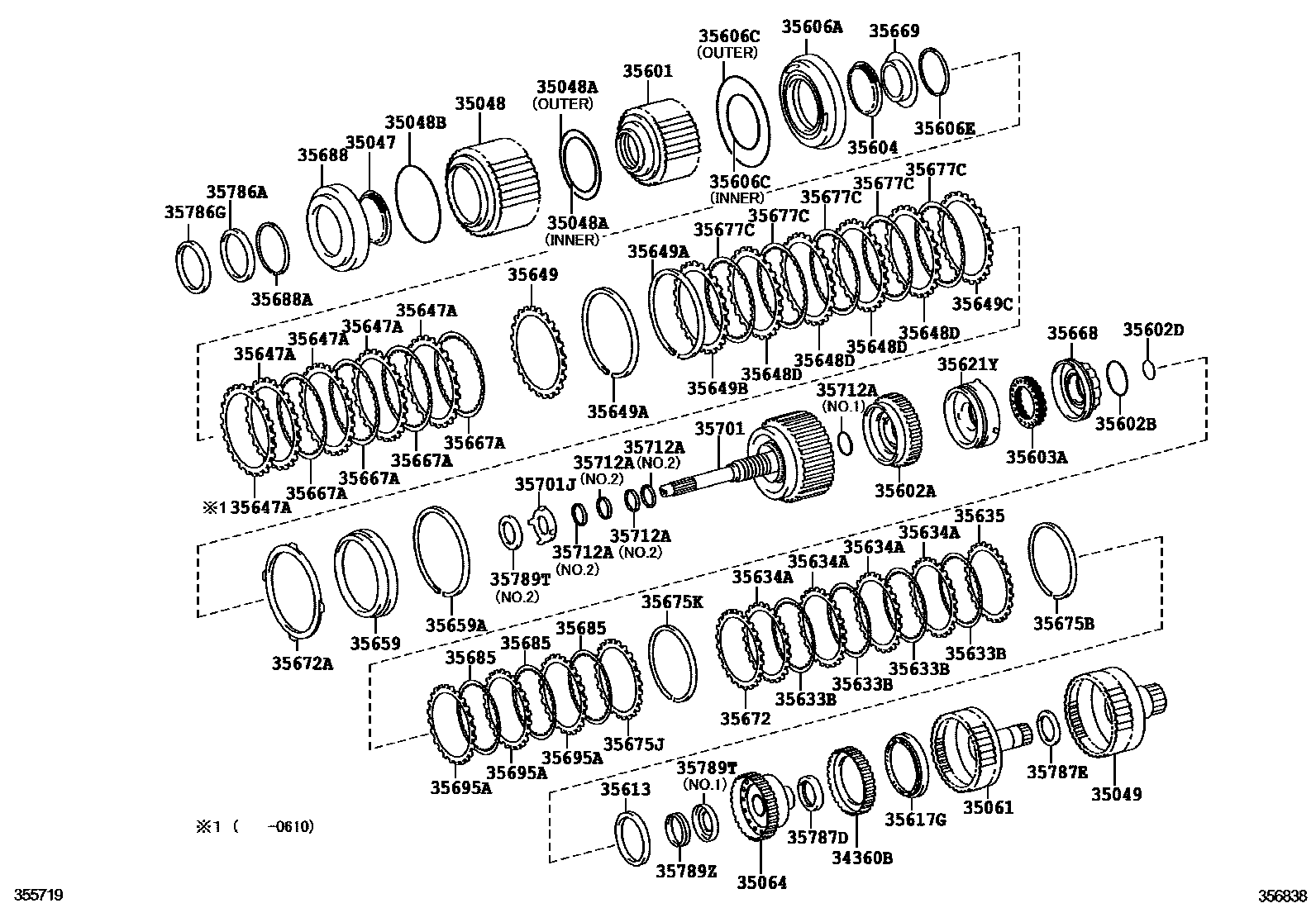

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34360BCLUTCH ASSY, UNDERDRIVE 1 WAY
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048ARING, O (FOR REVERSE CLUTCH PISTON)
OUTER
INNER
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35601DRUM SUB-ASSY, CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
OUTER
INNER
INNER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=2.4
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 6
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK 10
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649BFLANGE, REVERSE CLUTCH
35649CFLANGE, REVERSE CLUTCH
T=2.4,MARK 0
T=2.5,MARK 1
T=2.6,MARK 2
T=2.7,MARK 3
T=2.8,MARK 4
T=2.9,MARK 5
T=3.0,MARK 6
T=3.1,MARK 7
T=3.2,MARK 8
T=3.3,MARK 9
T=3.4,MARK A
T=3.5,MARK B
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675JFLANGE, COAST CLUTCH
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35701SHAFT SUB-ASSY, INPUT
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
NO.2
NO.1
NO.1
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.1
NO.2
53 parts on this diagram · 2 diagrams in section
