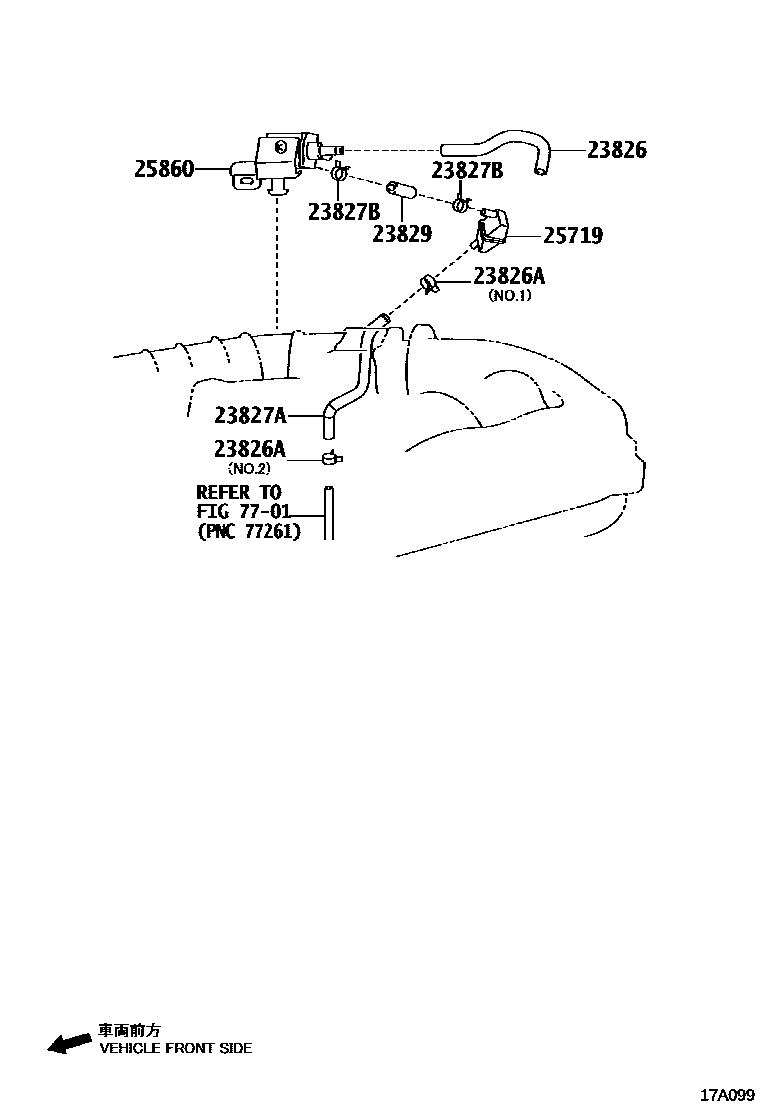

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31030i4GRFSE..GSE20201008

main23826-31050i3GRFE..GSE22200604-200808

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-15022i3GRFE..GSE22200604-200808

NO.2

main96132-51300i4GRFSE..GSE20201211-201304

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31100i4GRFSE..GSE20201008-201304

main23827-31120i3GRFE..GSE22201008-201304

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i4GRFSE..GSE20201211-201304

main96132-51300×2i3GRFE..GSE22200808-201008

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-31010i3GRFE..GSE22200604-200808

25719TANK, VACUUM SURGE

main25719-31010i3GRFE..GSE22200604-200808

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31040i3GRFE..GSE22200604-200808

main25860-31060i4GRFSE..GSE20201008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8 parts on this diagram · 2 diagrams in section
