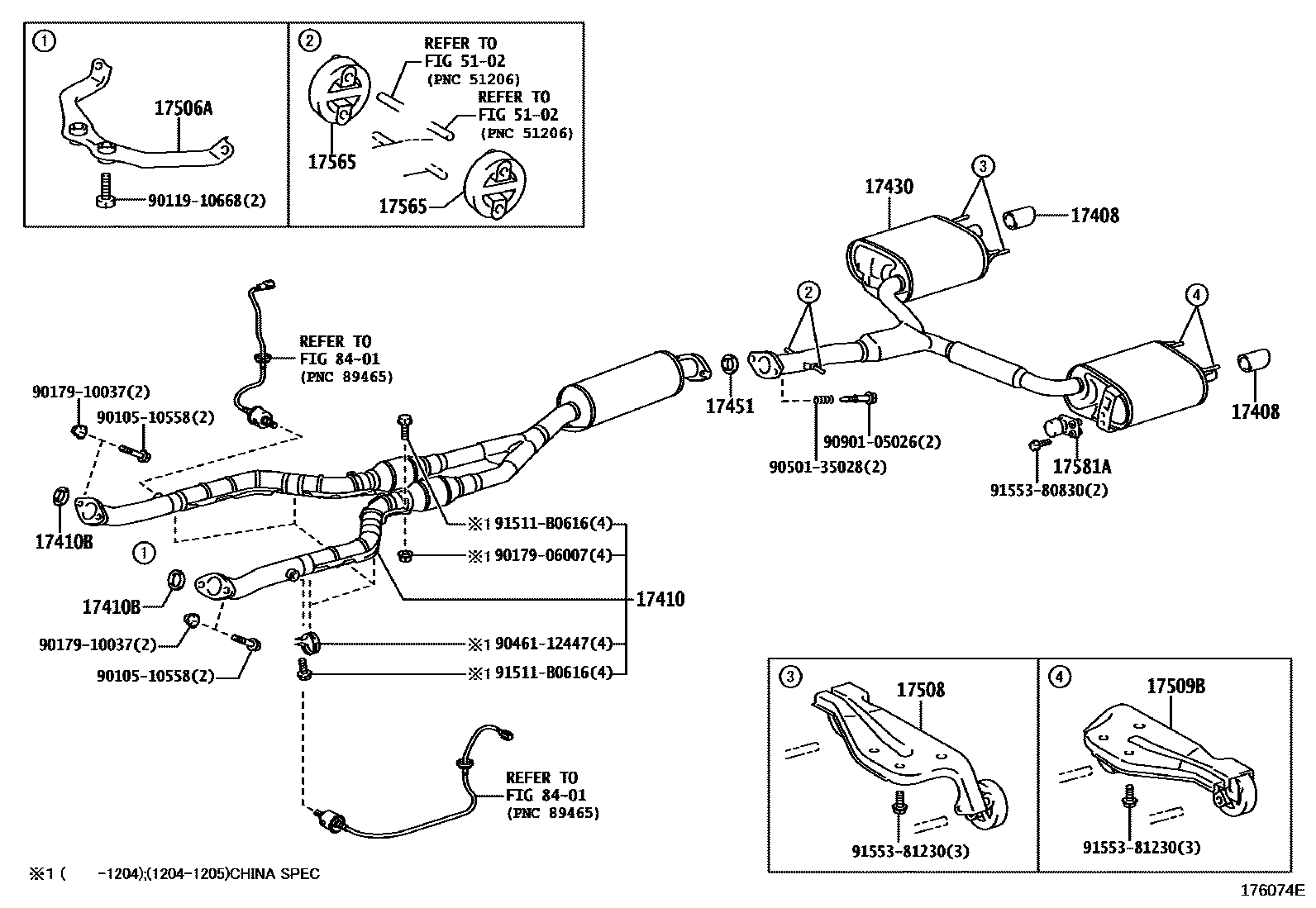

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/RF7/Y
CHINA SPEC
*114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC; *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
*114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC; *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
BRAZIL SPEC
BRAZIL SPEC
*114=TOYOTA/RC4/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC; *114=TOYOTA/RC4/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
BRAZIL SPEC
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
CHINA SPEC
CHINA SPEC
CHINA SPEC
BRAZIL SPEC; CHINA SPEC
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509BSUPPORT, EXHAUST PIPE NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17581ADAMPER, EXHAUST PIPE
5102SUSPENSION CROSSMEMBER & UNDER COVER
8401SWITCH & RELAY & COMPUTER
9010510558
main90105-10558
9011910668
main90119-10668
9017906007
main90179-06007
9017910037
main90179-10037
9046112447
main90461-12447
9050135028
main90501-35028
9090105026
main90901-05026
91511B0616
main91511-B0616
9155380830
main91553-80830
9155381230
main91553-81230
22 parts on this diagram · 1 diagram in section
