Toyota 242320 — MOUNTING

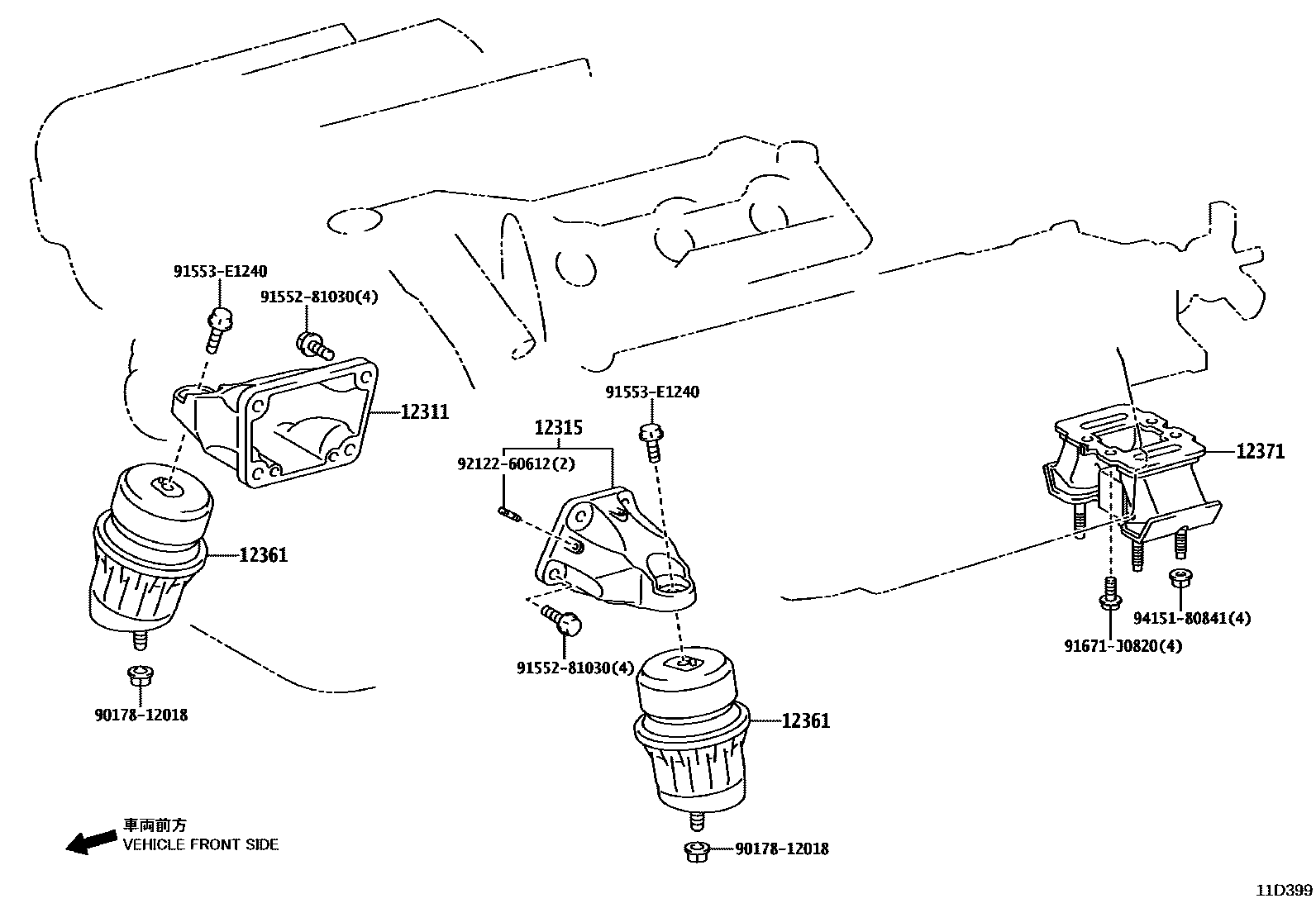

Parts diagram
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31040
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31010
12361INSULATOR, ENGINE MOUNTING, FRONT
12361-31100
12361-31200
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31070
9017812018
90178-12018
9155281030
91552-81030
91553E1240
91553-E1240
91671J0820
91671-J0820
9212260612
92122-60612
9415180841
94151-80841

10 parts on this diagram · 1 diagram in section

MOUNTING for Toyota 242320

This section contains 10 genuine Toyota parts for the MOUNTING system of the Toyota 242320. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
