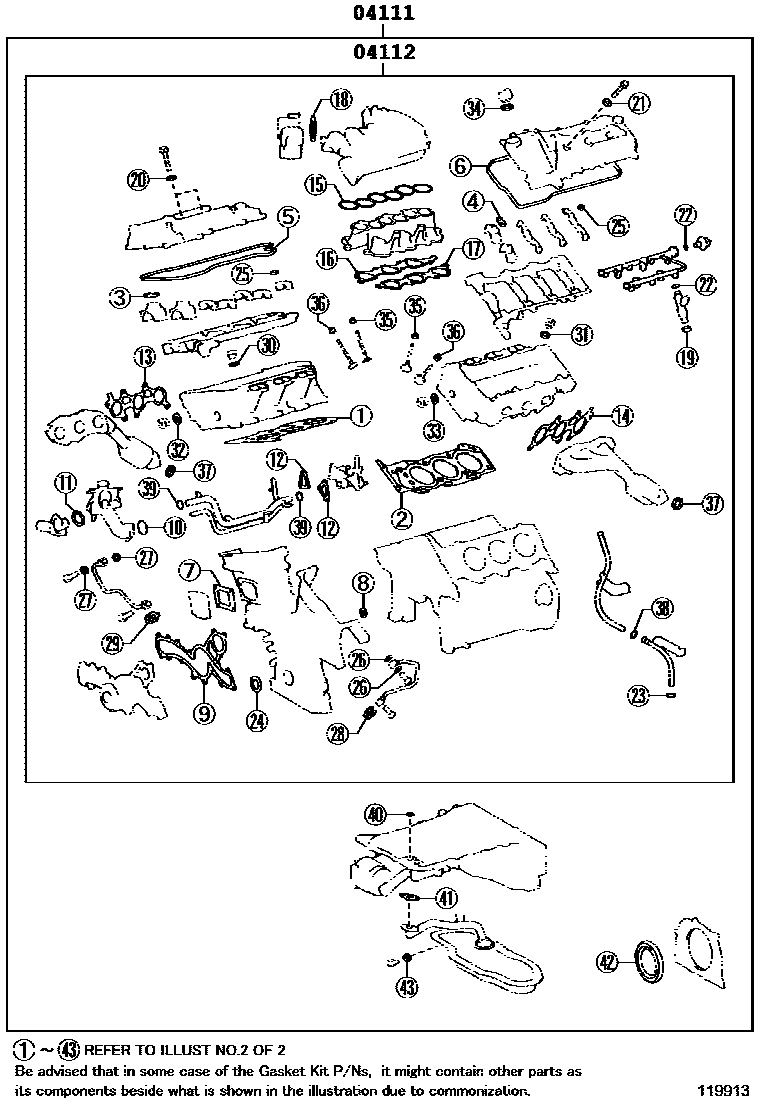

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1CHINA SPEC 0010 1CHINA SPEC

04111GASKET KIT, ENGINE OVERHAUL

main04111-31560i3GRFE..GSE22200604-201108

sub04111-31561

main04111-31561i3GRFE..GSE22201108

sub04111-31562

main04111-31780i4GRFSE..GSE20201008-201108

sub04111-31781

main04111-31781i4GRFSE..GSE20201108-201110

sub04111-31782

sub04111-31B40

main04111-31782i4GRFSE..GSE20201110-201111

sub04111-31783

main04111-31783i4GRFSE..GSE20201111

sub04111-31D60

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31330i4GRFSE..GSE20201008-201108

sub04112-31331

main04112-31331i4GRFSE..GSE20201108-201110

sub04112-31332

sub04112-31800

main04112-31332i4GRFSE..GSE20201110-201111

sub04112-31333

main04112-31333i4GRFSE..GSE20201111

sub04112-31334

main04112-31350i3GRFE..GSE22200604-201108

sub04112-31351

main04112-31351i3GRFE..GSE22201108

2 parts on this diagram · 10 diagrams in section
