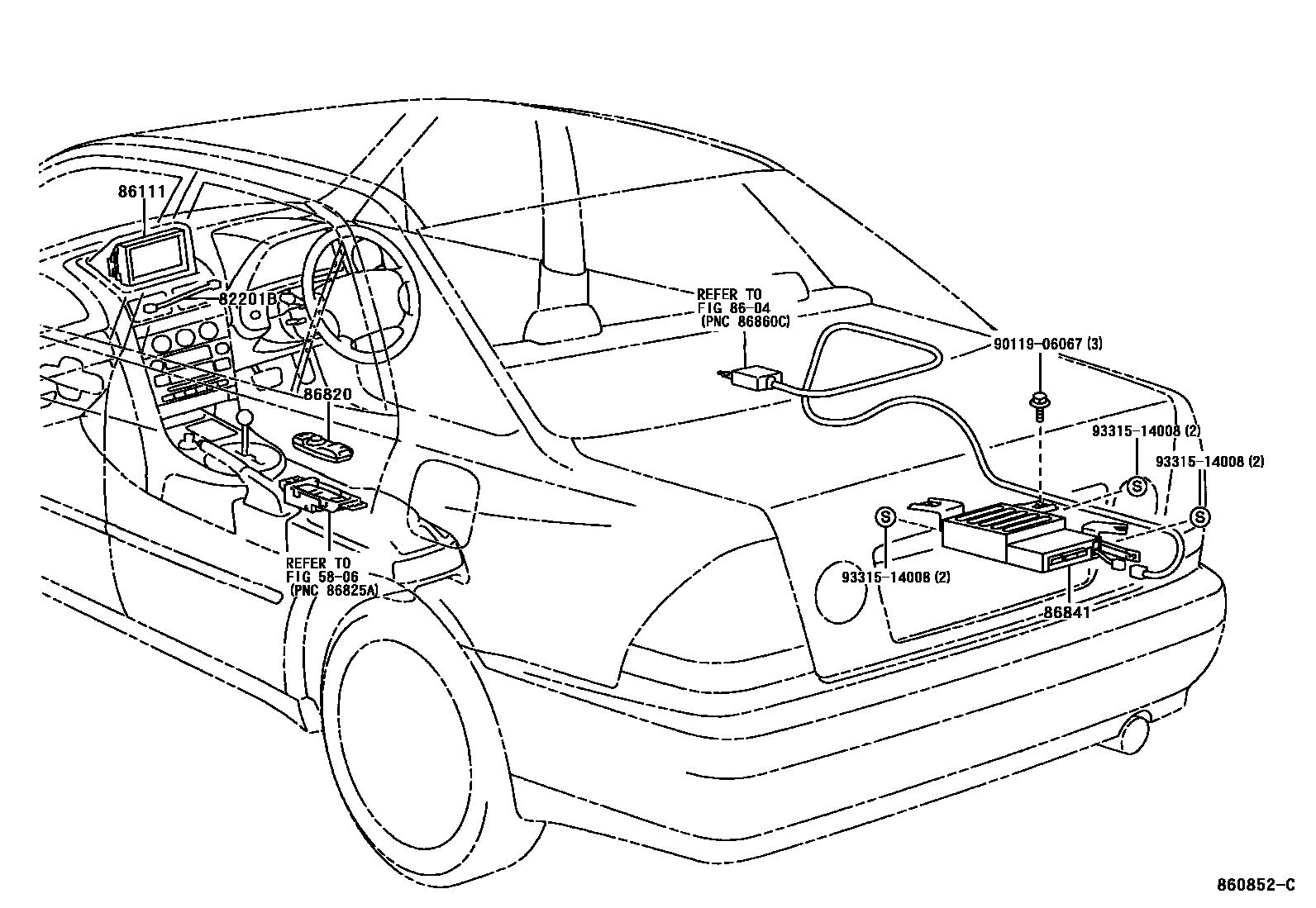

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

82201BWIRE, INSTRUMENT PANEL

main82201-53010iGXE10..RHD..EUR199901-200107

8604ANTENNA

→ Go to FIG 86-04

86111MULTI-DISPLAY

main86111-53010iGXE10..EUR199901-200107

FUJITSU TEN

main86111-53030iGXE10,JCE10200107-200507

PANASONIC

86820CONTROLLER ASSY, NAVIGATION

main86820-53010iGXE10..EUR199901-200107

main86820-53040iGXE10,JCE10200107

86841COMPUTER, NAVIGATION

main86841-53020iGXE10..EUR199901-200005

main86841-53021iGXE10..EUR200005-200107

main86841-53040iGXE10,JCE10..EUR200107-200302

main86841-53041iGXE10,JCE10..EUR200302

main86841-53050iGXE10,JCE10..ARL200107

9011906067

main90119-06067

9331514008

main93315-14008

8 parts on this diagram · 4 diagrams in section
