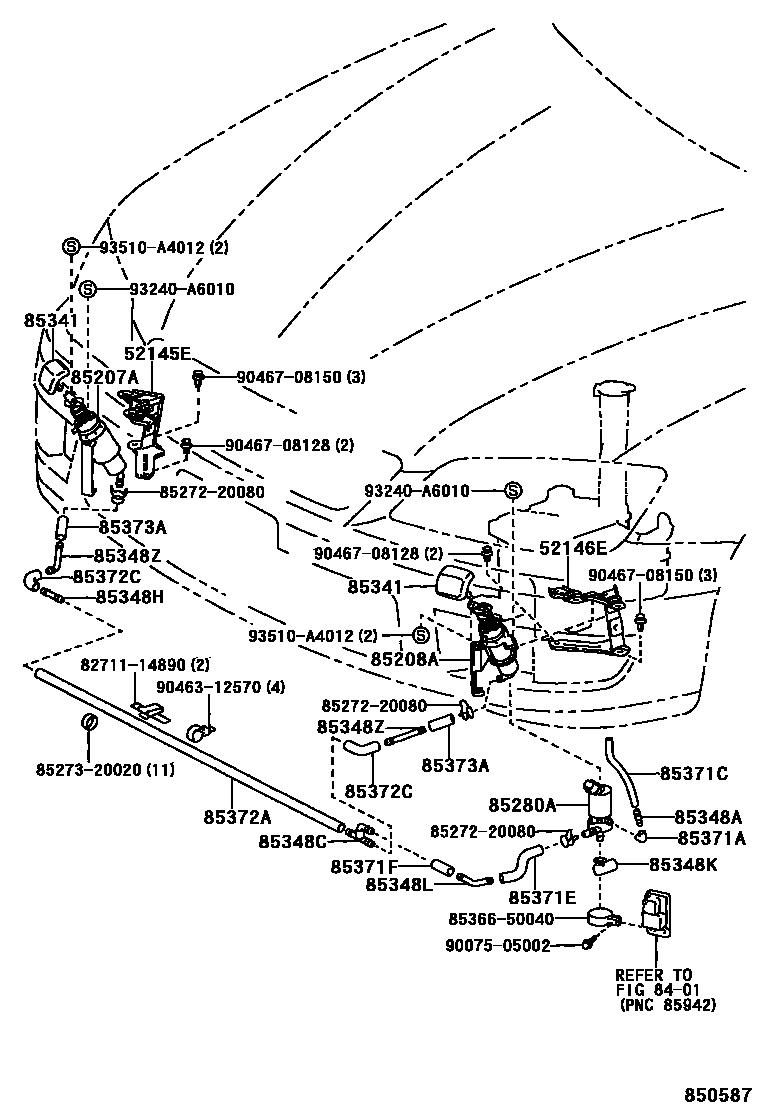

HEADLAMP CLEANER
52145EBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146EBRACKET, FRONT BUMPER SIDE MOUNTING, LH
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85371CHOSE, HEADLAMP CLEANER, NO.1
85371EHOSE, HEADLAMP CLEANER, NO.3
85371FHOSE, HEADLAMP CLEANER, NO.4
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8536650040COVER, WASHER TANK SERVICE HOLE COVER
main85366-50040
9007505002
main90075-05002
9046312570
main90463-12570
9046708128
main90467-08128
9046708150
main90467-08150
93240A6010
main93240-A6010
93510A4012
main93510-A4012
30 parts on this diagram · 3 diagrams in section
