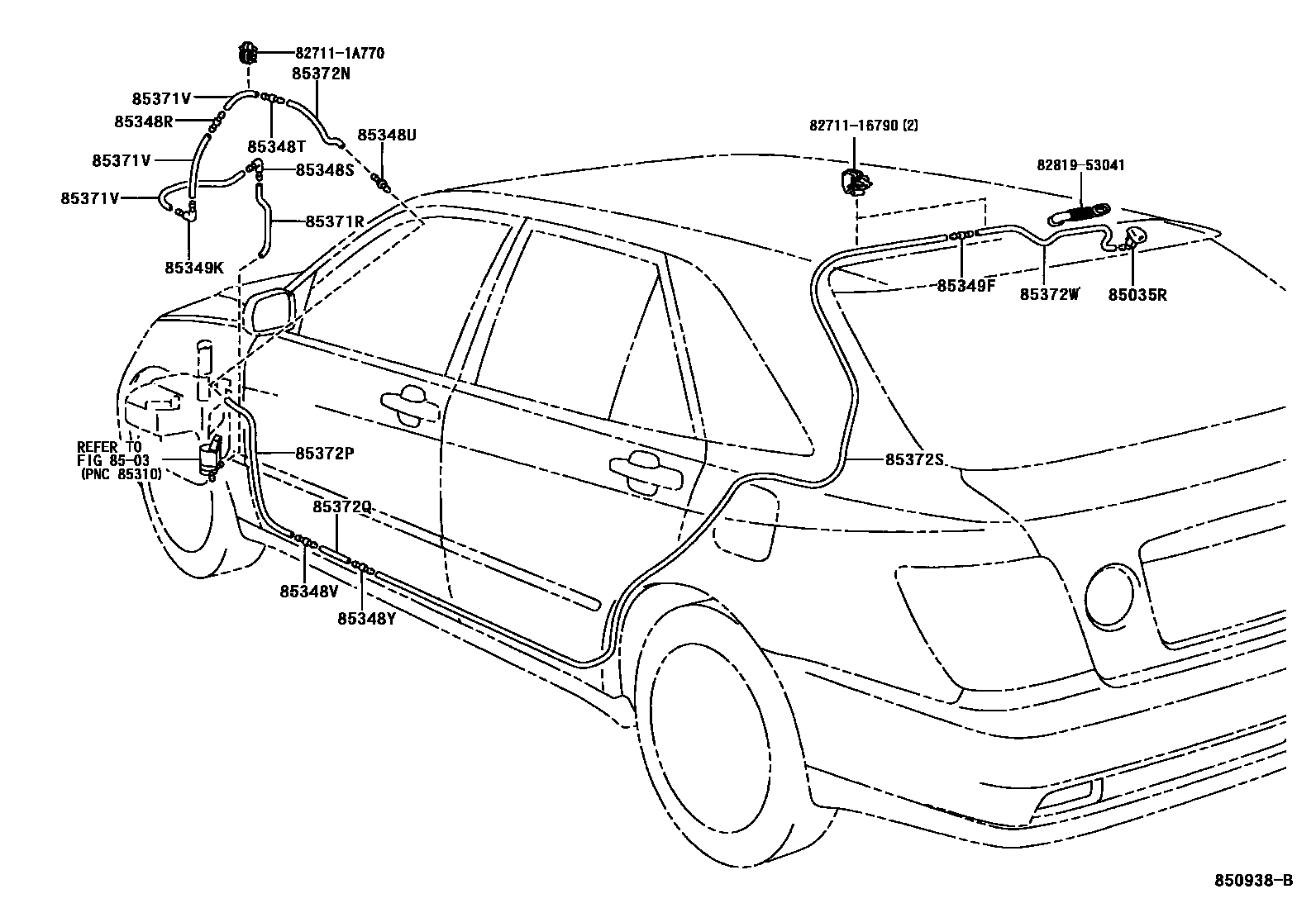

REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=190)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=1450(*H,L=50)
L=1800(*H,L=480)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=360)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=600)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=50)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=570)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
8281953041GROMMET, WIRING HARNESS
main82819-53041
20 parts on this diagram · 1 diagram in section
