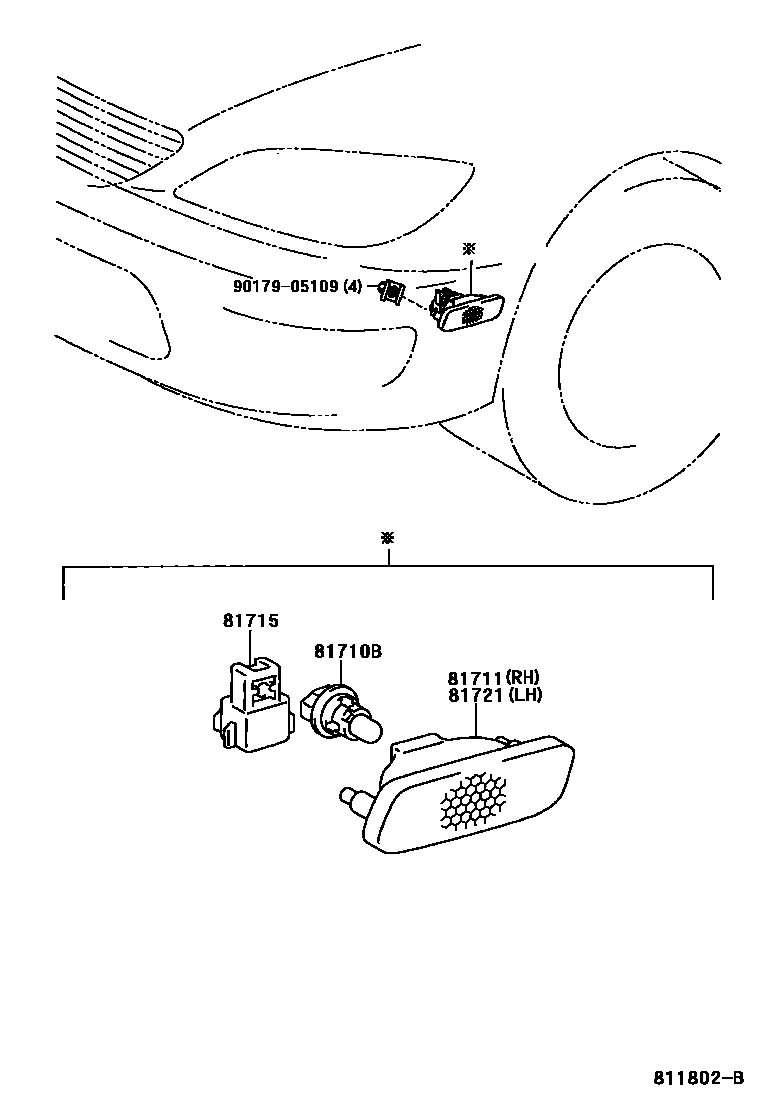

FRONT MARKER LAMP

81710BBULB, FRONT MARKER LAMP

main90981-11020×2iGXE10..LHD..ATM200107

12V 3.8W

81711LENS, FRONT MARKER LAMP, RH

main81731-30110iGXE10..LHD..ATM200107

81715SOCKET & WIRE, FRONT MARKER LAMP

main90075-99012×2iGXE10..LHD..ATM200107

81721LENS, FRONT MARKER LAMP, LH

main81741-30120iGXE10..LHD..ATM200107

9017905109

main90179-05109

5 parts on this diagram · 1 diagram in section
