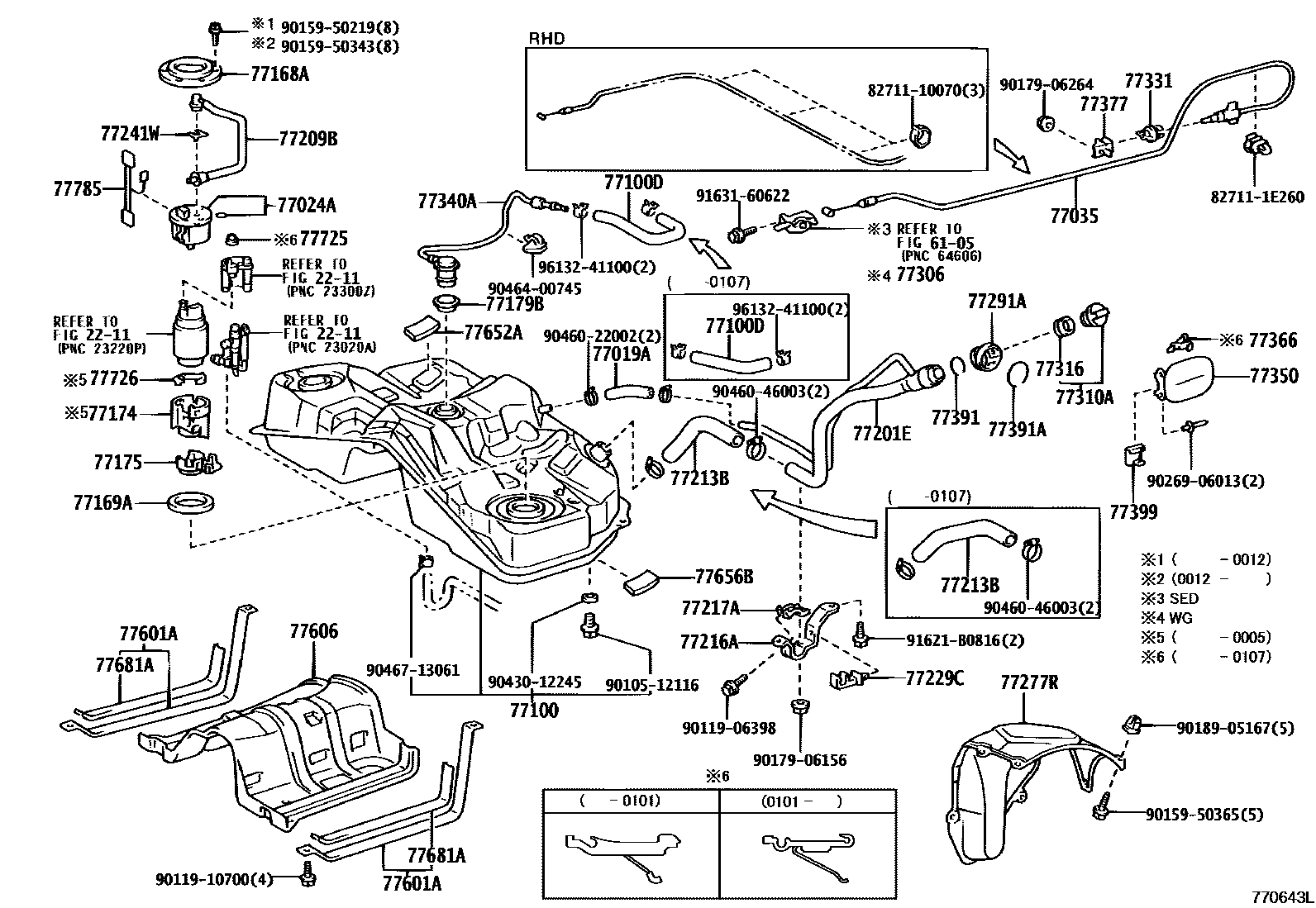

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

main77019-51010iGXE10..ARL199901-200011

L=200

main77019-53010iGXE10200011-200107

L=200

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30040iJCE10200107

main77024-30070iGXE10200107

main77024-53010iGXE10199901-200005

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-53010iGXE10,JCE10..RHD..SED200107

main77035-53020iGXE10..LHD199901-200107

main77035-53030iGXE10,JCE10..RHD..WG200107

main77035-53040iGXE10,JCE10..LHD..WG200107

77100TANK ASSY, FUEL

main77001-53020iGXE10199901-200107

main77001-53021iGXE10200204

main77001-53050iJCE10200107-200204

main77001-53051iJCE10200204

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77249-53040iGXE10,JCE10200107

main77259-53010iGXE10..ARL200011-200107

L=110

main95333-06020iGXE10..RHD..EUR199904-200011

*H,L=110,SOUTH AFRICA SPEC

main95337-06011iGXE10..EUR199901-200107

L=110

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iGXE10200012-200107

main77168-33040iGXE10199901-200012

main77168-33050iGXE10,JCE10200107

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iGXE10,JCE10200107

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33010iGXE10199901-200005

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30030iJCE10200107

main77175-30050iGXE10200107

main77175-33010iGXE10199901-200005

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010iGXE10199901-200107

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53030iGXE10199901-200107

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-30070iGXE10199901-199902

main77209-30080iGXE10200107

main77209-51020iGXE10200005-200107

main77209-53010iGXE10199902-199908

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-51010iGXE10199901-200107

main77213-53010iGXE10,JCE10200107

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-51010iGXE10199901-200107

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-51010iGXE10199901-200107

77229CCLAMP, BREATHER TUBE

main77229-51010iGXE10199901-200107

77241WCLIP, TUBE JOINT

main77241-33011iGXE10199901-200107

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-53010iGXE10199901-200107

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-53020iGXE10199901-200101

main77291-53021iGXE10200101-200107

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-53010iGXE10,JCE10..RHD..WG200107

main77306-53020iGXE10,JCE10..LHD..WG200107

77310ACAP ASSY, FUEL TANK

main77300-28010iGXE10200005-200107

main77300-50020iGXE10,JCE10200208

main77300-52010iGXE10..EUR199901-200005

main77310-48010iGXE10..ARL199901-200005

77316GASKET, FUEL TANK CAP

main77316-16010iGXE10,JCE10200107

77331BRACKET, FUEL LID LOCK CONTROL

main77331-53010iGXE10199901-200107

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-51010iGXE10199901-200107

77350LID ASSY, FUEL FILLER OPENING

main77350-53010iGXE10199901-200101

REFER TO PNC 77366

main77350-53011iGXE10200101-200107

REFER TO PNC 77366

main77350-53020iJCE10..WG200107-200208

main77350-53030iGXE10,JCE10..SED200208

main77350-53040iGXE10,JCE10..WG200208

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iGXE10199901-200101

main77360-33020iGXE10200101-200107

main77360-53010iGXE10,JCE10200309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-22060iGXE10199901-200107

77391RING, FUEL INLET BOX

main77391-53020iGXE10199901-200107

77391ARING, FUEL INLET BOX

main77391-53010iGXE10,JCE10200107

77399HANGER, FUEL TANK CAP

main77399-28010iGXE10199901-200005

main77399-53010iGXE10200005-200107

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-51010×2iGXE10199901-200005

main77601-53010×2iGXE10200005-200107

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-53010iGXE10199901-200107

main77606-53020iJCE10200107

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×13iGXE10199901-200107

77656BCUSHION, FUEL TANK, NO.6

main77656-53010×2iGXE10199901-200107

77681ASEAT, FUEL TANK BAND

main77681-32060×2iGXE10199901-200107

77725CUSHION, FUEL FILTER, NO.1

main77725-33010iGXE10199901-200107

77726CUSHION, FUEL FILTER, NO.2

main77726-33010iGXE10199901-200005

77785HARNESS, FUEL PUMP

main77785-33010iGXE10199901-200005

main77785-52020iGXE10200005-200107

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9010512116

main90105-12116

9011906398

main90119-06398

9011910700

main90119-10700

9015950219

main90159-50219

9015950343

main90159-50343

9015950365

main90159-50365

9017906156

main90179-06156

9017906264

main90179-06264

9018905167

main90189-05167

9026906013

main90269-06013

9043012245

main90430-12245

9046022002

main90460-22002

9046046003

main90460-46003

9046400745

main90464-00745

9046713061

main90467-13061

91621B0816

main91621-B0816

9163160622

main91631-60622

9613241100

main96132-41100

60 parts on this diagram · 4 diagrams in section
