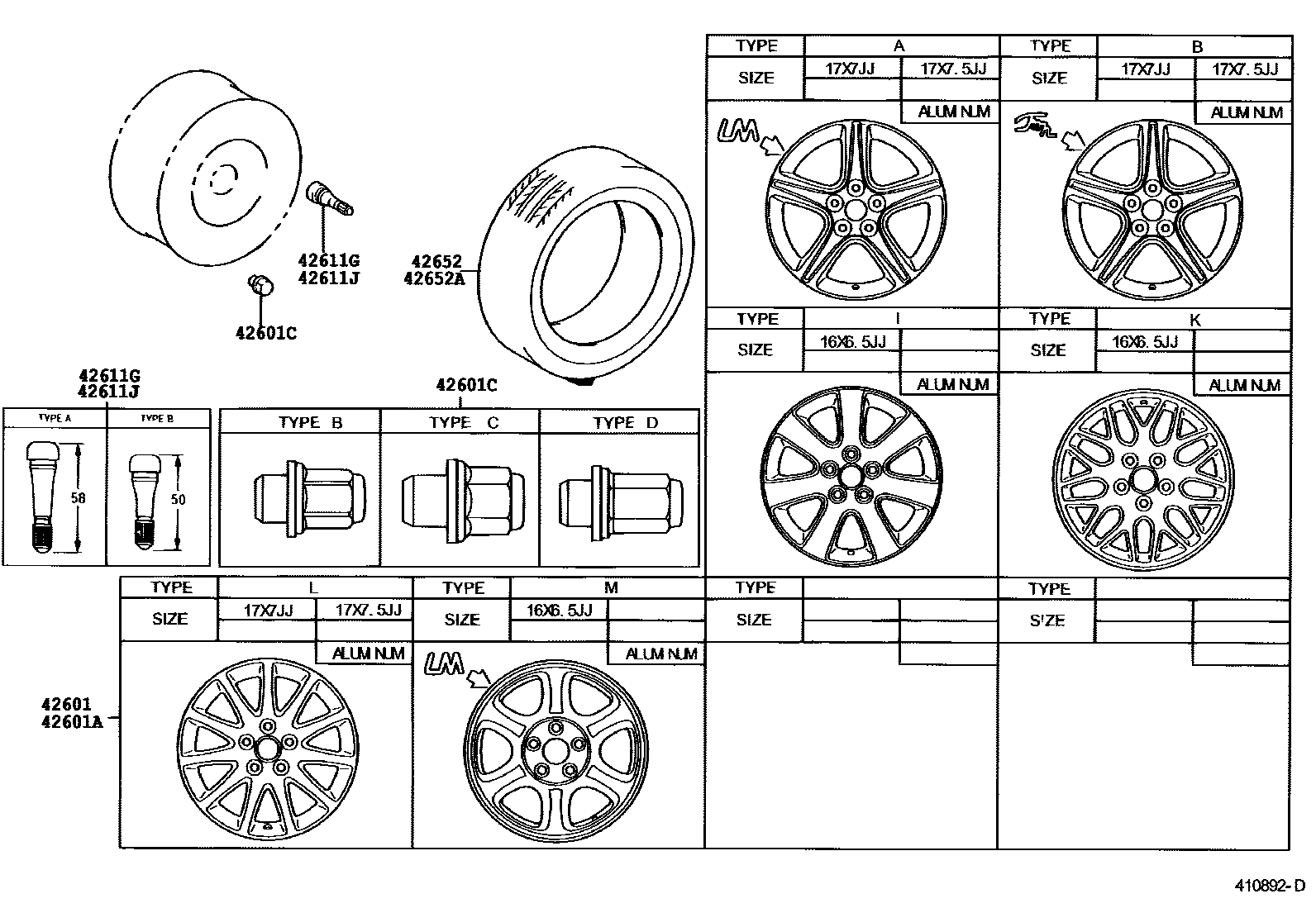

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5JJ,OFFSET 50,TYPE M:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE I:REFER ILLUST.
17X7JJ,OFFSET 50,ALUMI WHEEL,*NZ;TYPE A:REFER TO ILLUSTRATION
17X7JJ,OFFSET50(AL),TYPE B:REFER ILLUST.; 17X7JJ,OFFSET50(AL),TYPE B:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE B:REFER ILLUST.
17X7.5JJ,OFFSET 55,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE A:REFER ILLUST.
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE K:REFER ILLUST.
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED,TYPE L:REFER TO ILLUSTRATION; 17X7JJ,OFFSET 50,TYPE L:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE L:REFER ILLUST.
17X7JJ,OFFSET 50,TYPE L:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ,OFFSET 50,TYPE M:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE I:REFER ILLUST.; 16X6.5JJ,OFFSET 50,TYPE I:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,TYPE A:REFER TO ILLUSTRATION
17X7JJ,OFFSET50(AL),TYPE B:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE K:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,TYPE L:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,TYPE L:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER TO ILLUSTRATION
TYPE D:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE B:REFER ILLUST.
42652TIRE
225/45ZR17,REAR
215/45ZR17*D/L
215/45R17,*B/S,*D/L,*Y/H; 215/45R17,FRONT
205/55R16
205/55R16
205/55R16 *B/S
215/45R17,*B/S,*D/L,*Y/H; 215/45R17,FRONT
205/55R16,TEMPORARY TIRE = SPARE TIRE
225/45R17,REAR
225/45R17,REAR
215/45R17 *B/S,*B/S; 215/45R17 *B/S,*B/S,FRONT
215/45R17,*B/S; 215/45R17,*B/S,FRONT
205/55R16,*Y/H
205/55R16 *Y/H
205/55R16,*Y/H
42652ATIRE (FOR SPARE)
215/45ZR17*D/L
215/45R17
205/55R16
205/55R16
205/55R16 *B/S
215/45R17; 215/45R17,*B/S,*D/L,*Y/H
205/55R16,TEMPORARY TIRE = SPARE TIRE
215/45R17 *B/S,*B/S
215/45R17,*B/S
205/55R16,*Y/H
205/55R16 *Y/H
205/55R16,*Y/H
7 parts on this diagram · 3 diagrams in section
