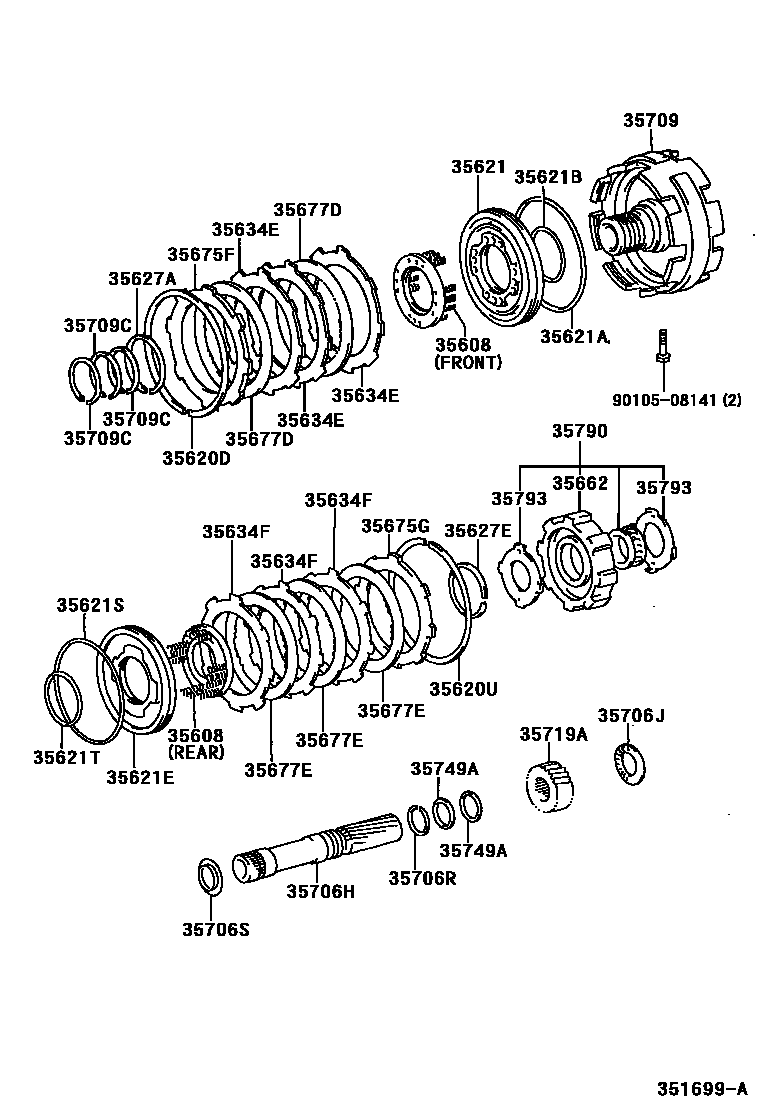

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
FRONT
REAR
35620DRING (FOR BRAKE)
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35621EPISTON, BRAKE (FOR REAR BRAKE)
35621SRING (FOR REAR BRAKE PISTON OUTER)
35621TRING (FOR REAR BRAKE PISTON INNER)
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
35634EPLATE, CLUTCH (FOR BRAKE)
35634FPLATE, CLUTCH (FOR REAR BRAKE)
T=2.3
35675FFLANGE, CLUTCH (FOR BRAKE)
35675GFLANGE, BRAKE (FOR REAR BRAKE)
35677DDISC, CLUTCH (FOR REAR BRAKE)
35677EDISC, CLUTCH (FOR REAR BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35709SUPPORT SUB-ASSY, CENTER
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35719AGEAR, REAR PLANETARY SUN
35749ARING, SUN GEAR SHAFT OIL SEAL
35793RETAINER, 1 WAY CLUTCH
9010508141
main90105-08141
29 parts on this diagram · 2 diagrams in section
