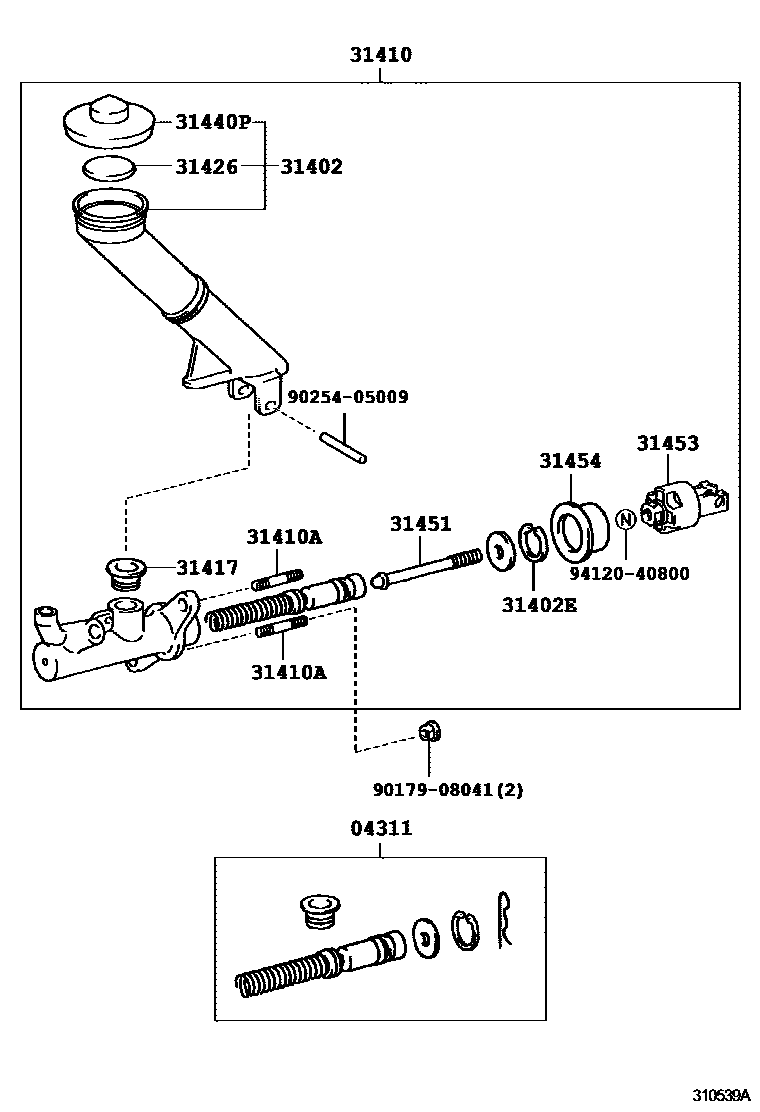

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iGXE10..MTM199901-200107

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-22020iGXE10..LHD..MTM199901-200107

main31402-53010iGXE10..RHD..MTM199901-200107

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main96151-02200iGXE10..MTM199901-200107

31410CYLINDER ASSY, CLUTCH MASTER

main31410-53010iGXE10..RHD..MTM199901-200107

main31410-53020iGXE10..LHD..MTM199901-200107

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iGXE10..MTM199901-200107

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iGXE10..MTM199901-200107

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iGXE10..MTM199901-200107

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGXE10..MTM199901-200107

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iGXE10..MTM199901-200107

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iGXE10..LHD..MTM199901-200107

main31404-28020iGXE10..RHD..MTM199901-200107

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iGXE10..MTM199901-200107

9017908041

main90179-08041

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
