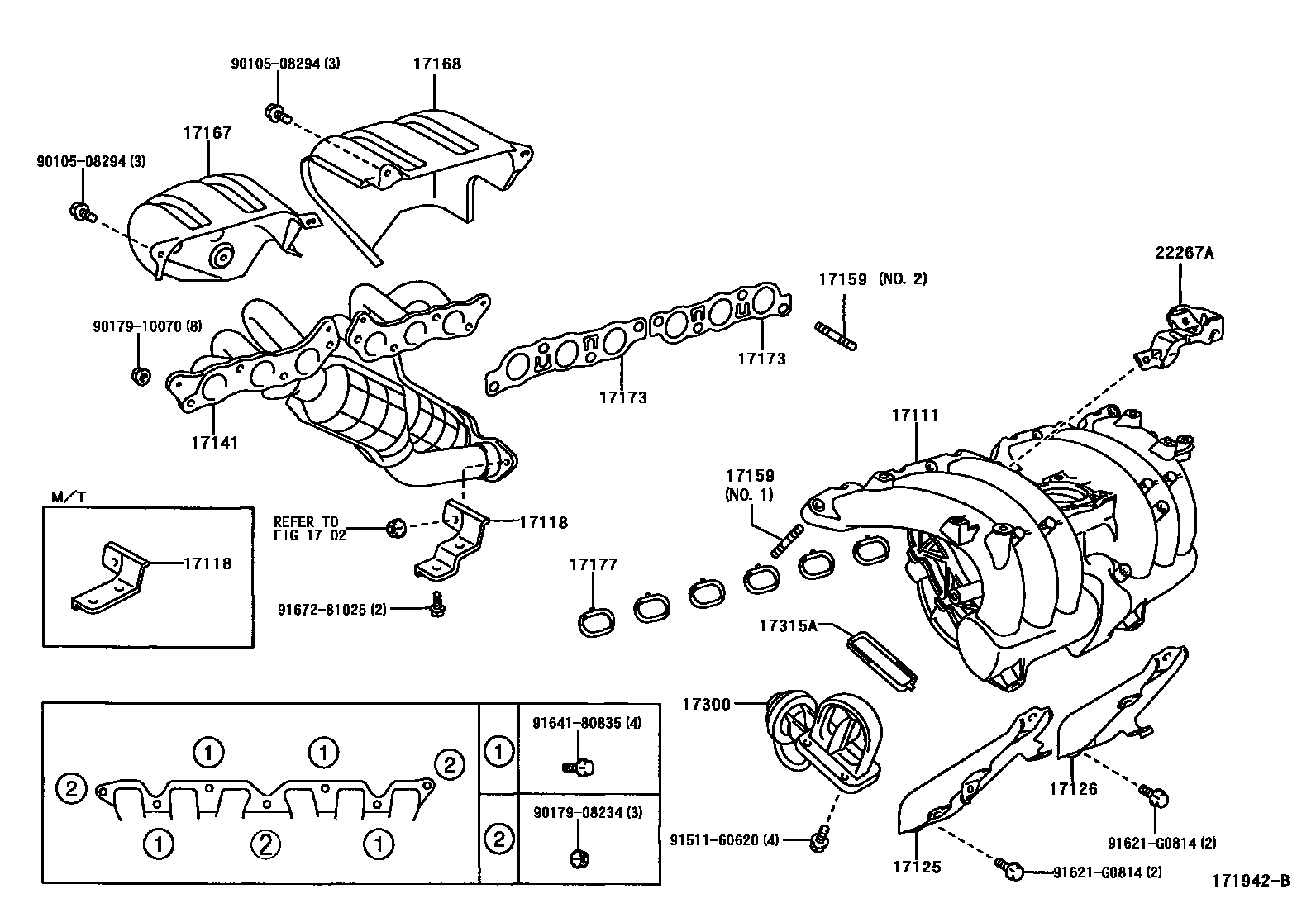

MANIFOLD
1702EXHAUST PIPE
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17141MANIFOLD, EXHAUST
*115=TOYOTA/46080/Y
*115=TOYOTA/70020/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.2
NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300VALVE ASSY, INTAKE AIR CONTROL
17315AGASKET, INTAKE AIR CONTROL VALVE
22267ABRACKET, THROTTLE BODY
9010508294
main90105-08294
9017908234
main90179-08234
9017910070
main90179-10070
9151160620
main91511-60620
91621G0814
main91621-G0814
9164180835
main91641-80835
9167281025
main91672-81025
21 parts on this diagram · 2 diagrams in section
