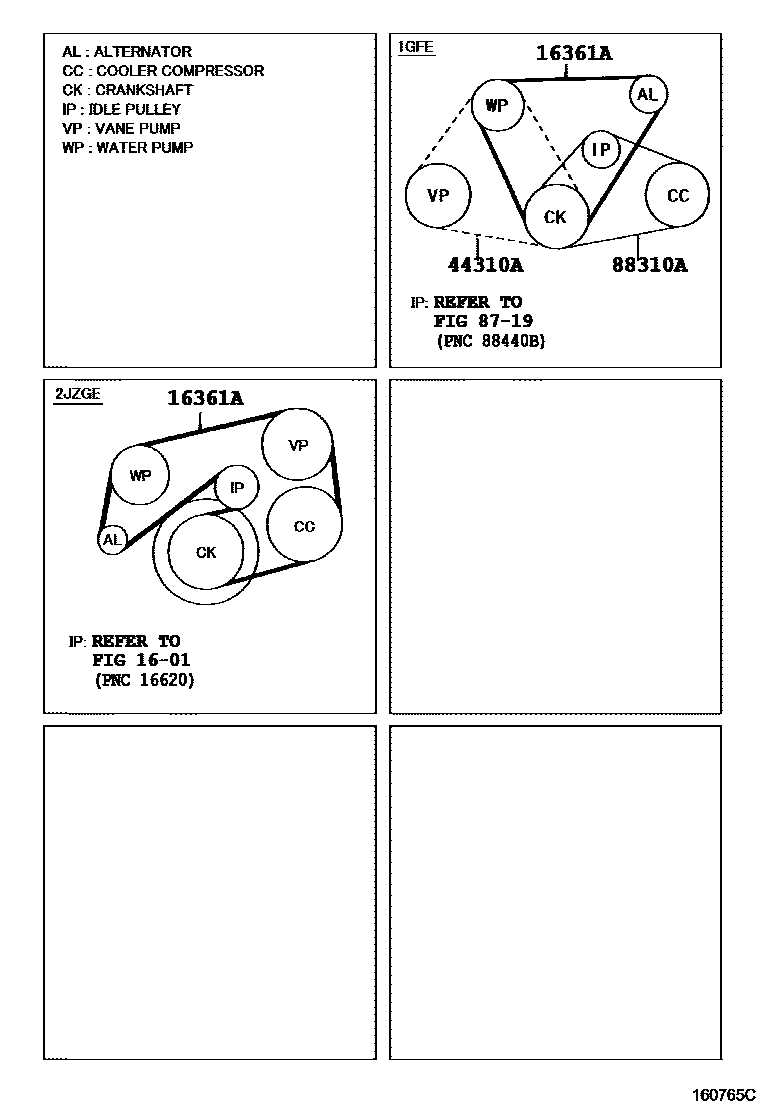

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02412i2JZGE..JCE10200107-200406

main90916-02471i1GFE..GXE10199901-200107

main99366-D1930i2JZGE..JCE10200407

(J)

44310ABELT, V(FOR VANE PUMP)

main99363-00890iGXE10199901-200107

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-30900iGXE10199901-200107

L=900,MITSUBOSHI

main99364-90900iGXE10199901-200107

L=900,BANDO

5 parts on this diagram · 1 diagram in section
