OIL FILTER

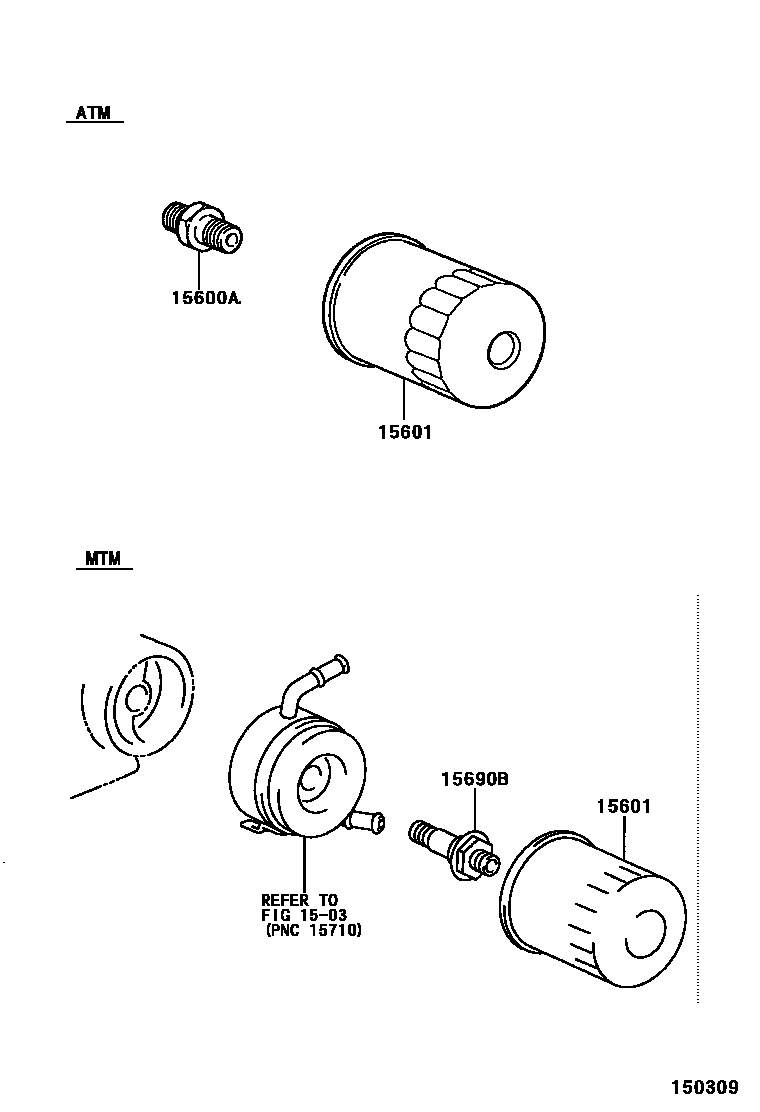

Parts diagram

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15600AUNION(FOR OIL FILTER)

main90404-19002i199901-200107

15601FILTER SUB-ASSY, OIL

main90915-20001i199901-199908

main90915-20003i199908-200107

15690BVALVE ASSY, OIL COOLER RELIEF

main15695-70010i199901-200107

4 parts on this diagram · 2 diagrams in section
