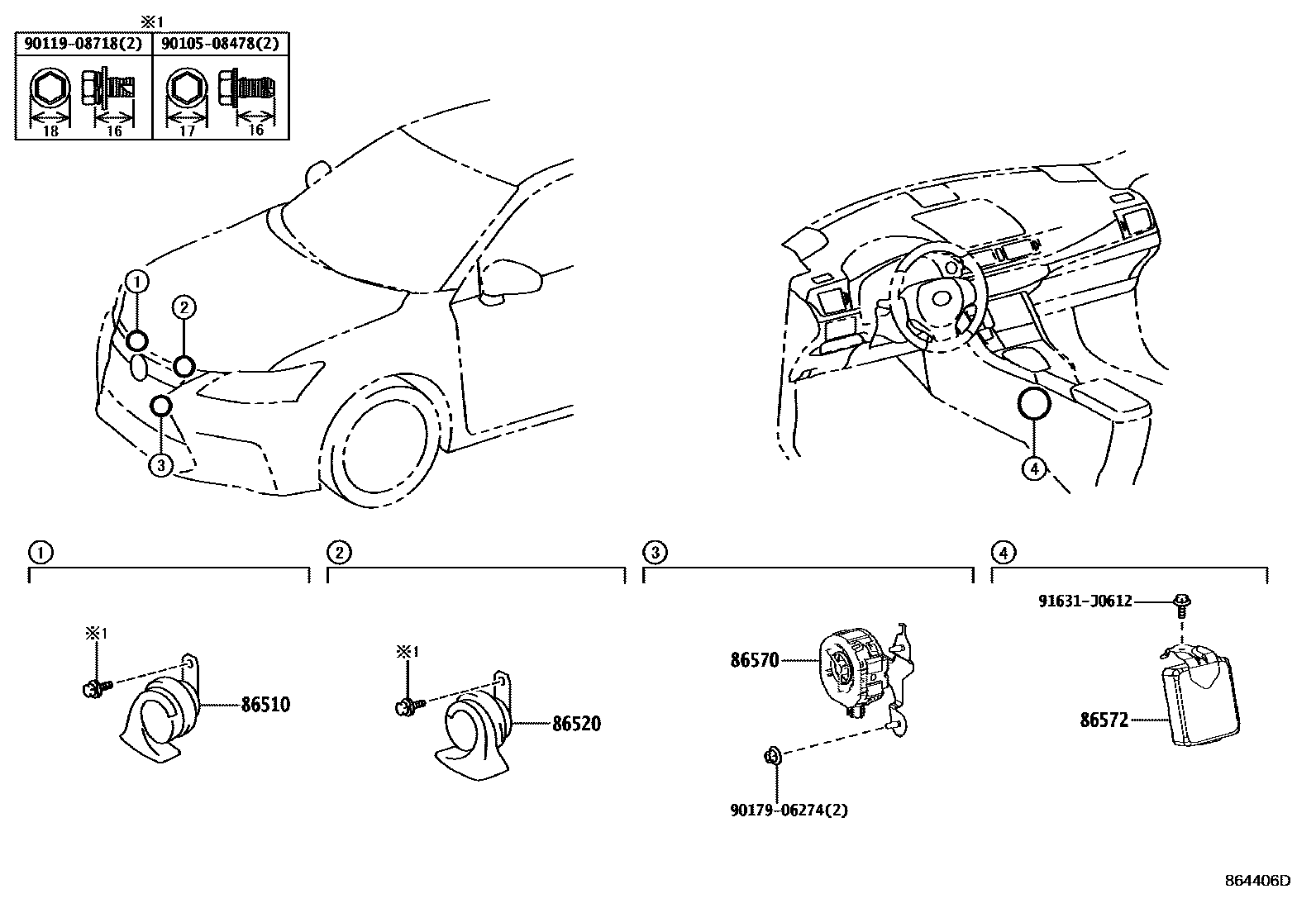

HORN

86510HORN ASSY, HIGH PITCHED

main86510-33230iZWA10..CHI201312-202105

main86510-75010iZWA10201012-201312

86520HORN ASSY, LOW PITCHED

main86520-33170iZWA10..CHI201312-202105

main86520-75010iZWA10201012-201312

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-76020iZWA10..CHI201910-202105

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-76070iZWA10..CHI201910-202105

9010508478

main90105-08478

9011908718

main90119-08718

9017906274

main90179-06274

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
