Toyota LEXUS CT200H — ANTENNA

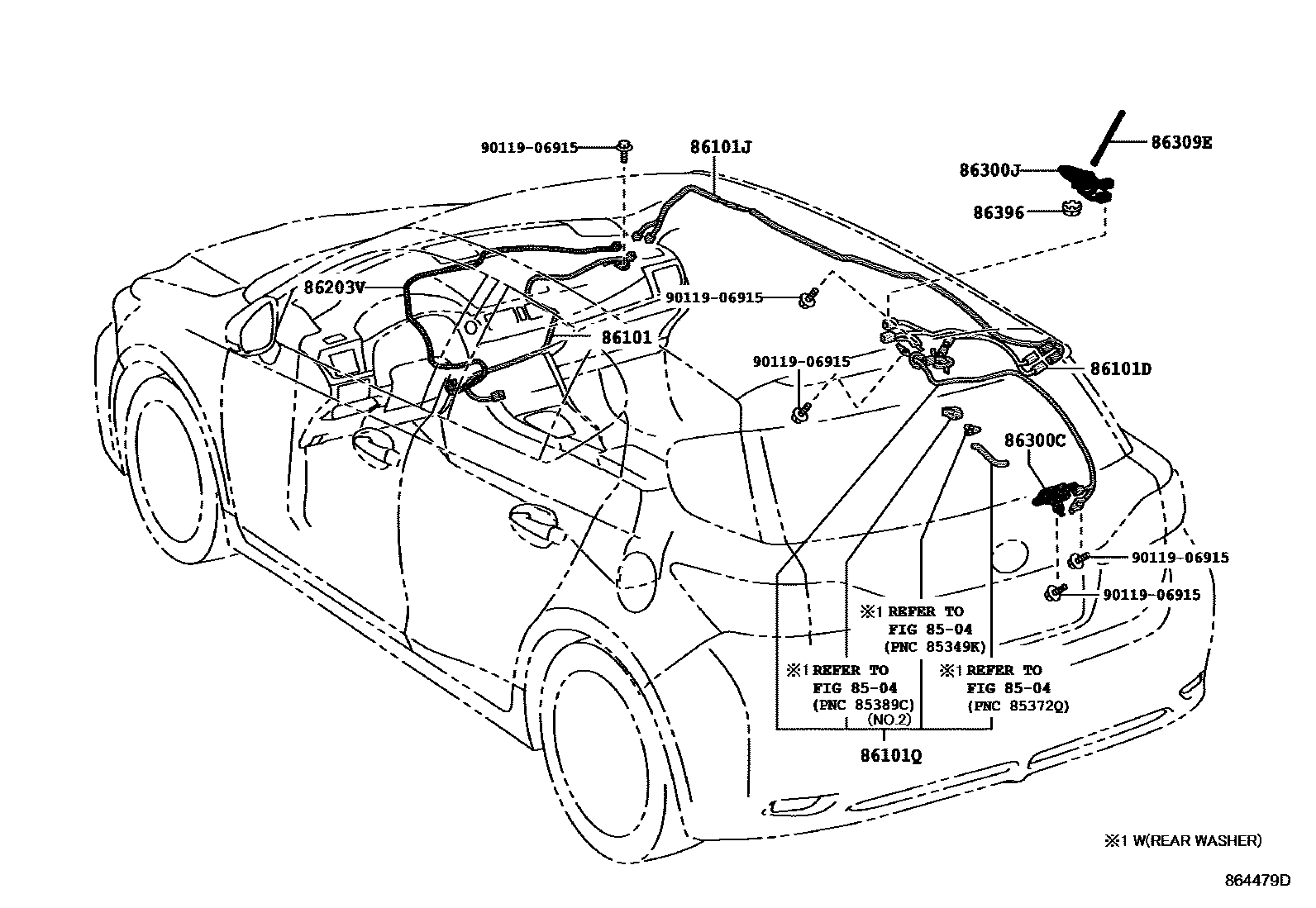

Parts diagram
8504REAR WASHER
→ Go to FIG 85-04
86101CORD SUB-ASSY, ANTENNA
86101-76021
86101-76040
86101-76041
86101-76090
86101-76091
86101-76100
86101-76101
86101-76120
86101-76121
86101-76171
86101-76250
86101-76251
86101-76340
86101-76470
86101-76520
86101-76530
86101-76660
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86203VWIRE SUB ASSY, RADIO
86300CANTENNA ASSY, AMPLIFIER, NO.2
86300JANTENNA ASSY, ROOF
86309EPOLE SUB-ASSY, ROOF ANTENNA
86396NUT, ANTENNA
86396-47010
9011906915
90119-06915

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota LEXUS CT200H

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS CT200H. Key components include: REAR WASHER, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2.
