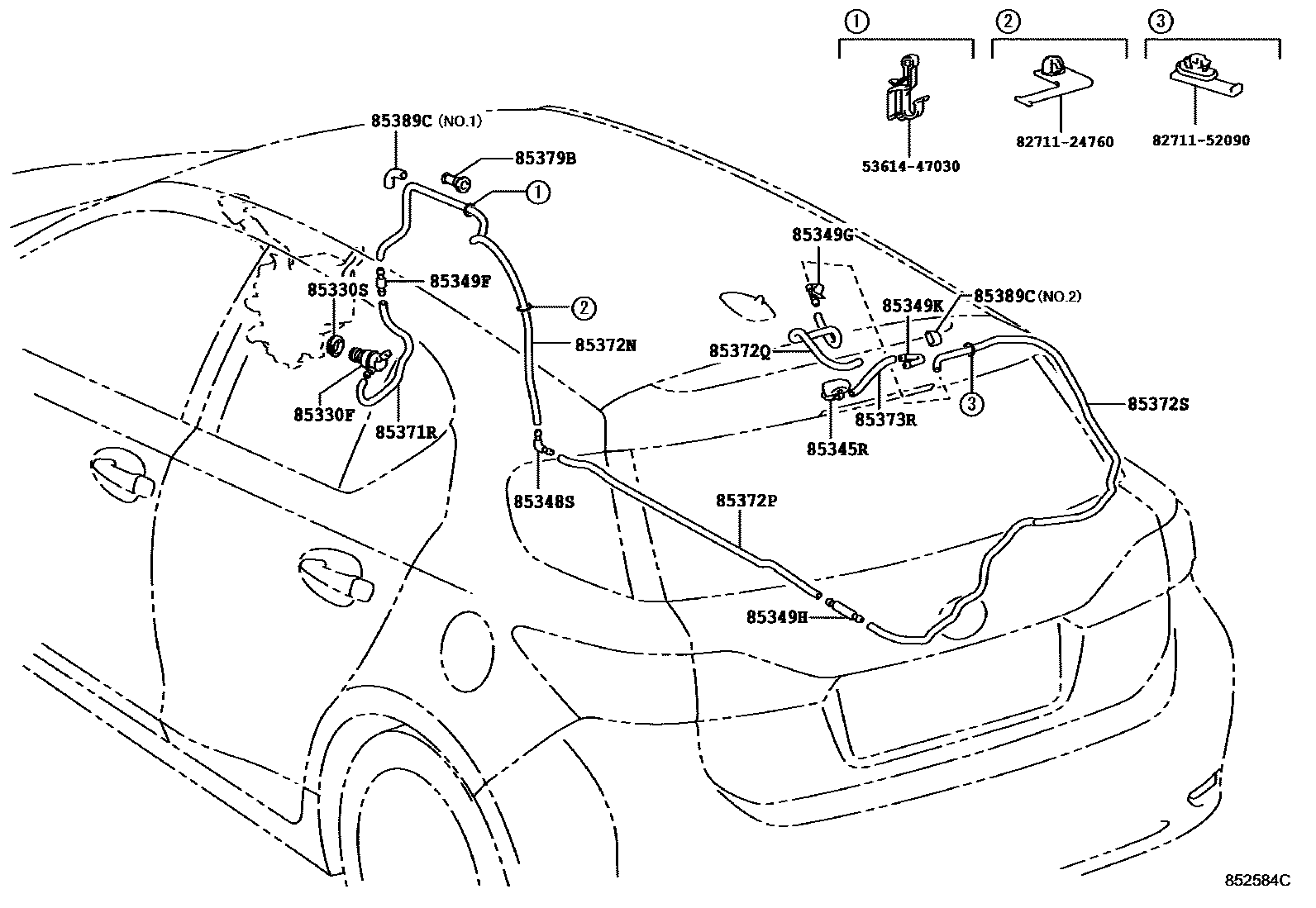

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

85330SBUSH, REAR WASHER JAR

85345RNOZZLE, REAR WASHER

85348SJOINT, REAR WASHER ELBOW, NO.1

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85349HJOINT, REAR WASHER HOSE, NO.3

85349KJOINT, REAR WASHER ELBOW, NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

85379BGROMMET, WASHER, A

85389CPROTECTOR, WASHER

5361447030CLAMP, HOOD LOCK CONTROL CABLE

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

19 parts on this diagram · 1 diagram in section
