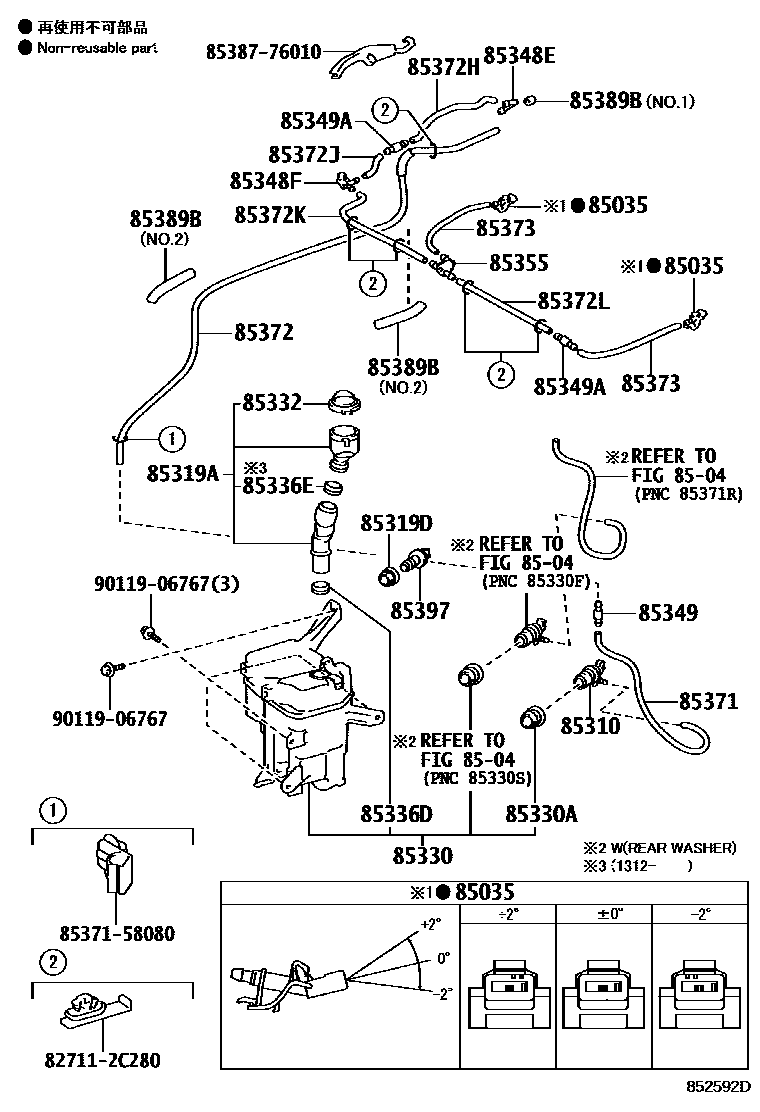

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201012-201312

ANGLE 0

main85381-12340×2i201312-202105

ANGLE -2

main85381-12350×2i201312-202105

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201312-202108

85319AHOSE, INLET

main85359-76030i201312-201708

COLD AREA SPEC&HEADLAMP-LED; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED; HEADLAMP-LED; REAR WINDOW WIPER-WITH&HEADLAMP-LED

main85319-76020supersedes 85359-76031i201012-201312

COLD AREA SPEC; COLD AREA SPEC&REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH

main85319-76100supersedes 85319-76060i201312-202012

COLD AREA SPEC; COLD AREA SPEC&REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH

main85319-76101supersedes 85319-76061i202012-202105

COLD AREA SPEC; COLD AREA SPEC&REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH

main85359-76020supersedes 85359-76031i201012-201312

COLD AREA SPEC&HEAD LAMP-LED; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEAD LAMP-LED; HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED

main85359-76031i201708-202102

COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E11:REF.ILLUST; COLD AREA SPEC&HEADLAMP-LED,MARK=E11:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E11:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E11:REF.ILLUST; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E11:REF.ILLUST; HEADLAMP-LED,MARK=E11:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E11:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E11:REF.ILLUST

main85359-76032supersedes 85319-76061i202102-202108

COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; COLD AREA SPEC&HEADLAMP-LED,MARK=E13:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E13:REF.ILLUST; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; HEADLAMP-LED,MARK=E13:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E13:REF.ILLUST

85319DPACKING, FRONT WASHER

main85319-33230i201312-202105

85330JAR ASSY, WINDSHIELD WASHER

main85315-76020supersedes 85315-76090i201012-201312

COLD AREA SPEC&REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH

main85315-76030supersedes 85315-76090i201012-201312

COLD AREA SPEC&HEAD LAMP-LED; HEAD LAMP-LED

main85315-76040supersedes 85315-76090i201012-201312

COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED

main85315-76080supersedes 85315-76060i201312-202108

COLD AREA SPEC&REAR WINDOW WIPER-WITH; REAR WINDOW WIPER-WITH

main85315-76090i201708-202108

COLD AREA SPEC&HEADLAMP-LED; COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main85315-76100i201708-202108

COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); REAR WINDOW WIPER-WITH&HEADLAMP-LED; REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201012-201312

85332CAP, WINDSHIELD WASHER JAR

main85316-76010i201012-201312

main85316-76060supersedes 85316-76061i201312-201708

COLD AREA SPEC&HEADLAMP-LED; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED; HEADLAMP-LED; REAR WINDOW WIPER-WITH&HEADLAMP-LED

main85316-76061i202102-202105

COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; COLD AREA SPEC&HEADLAMP-LED,MARK=E13:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E13:REF.ILLUST; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; HEADLAMP-LED,MARK=E13:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MARK=E13:REF.ILLUST; REAR WINDOW WIPER-WITH&HEADLAMP-LED,MARK=E13:REF.ILLUST

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201012-201312

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i201312-202007

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-12360i201012-201312

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-32220i201012-201312

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201012-201312

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260×2i201012-201312

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201312-202108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201312-202108

L=1450(*H,L=480); L=1450(*H,L=480),COLD AREA SPEC; L=1450(*H,L=480),COLD AREA SPEC&HEADLAMP-LED; L=1450(*H,L=480),COLD AREA SPEC&REAR WINDOW WIPER-WITH; L=1450(*H,L=480),COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED; L=1450(*H,L=480),HEADLAMP-LED; L=1450(*H,L=480),REAR WINDOW WIPER-WITH; L=1450(*H,L=480),REAR WINDOW WIPER-WITH&HEADLAMP-LED

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201312-202105

L=1450(*H,L=870)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201012-201312

L=1800(*H,L=305)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201012-201312

L=1450(*H,L=60)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i201012-201312

L=1450(*H,L=480)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i201312-202105

L=1450(*H,L=325)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201012-201312

L=1450(*H,L=230)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-76020×2i201312-202108

NO.2

main85389-76030i201312-202105

NO.1

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201012-201312

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

8537158080HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58080

8538776010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-76010

9011906767

main90119-06767
