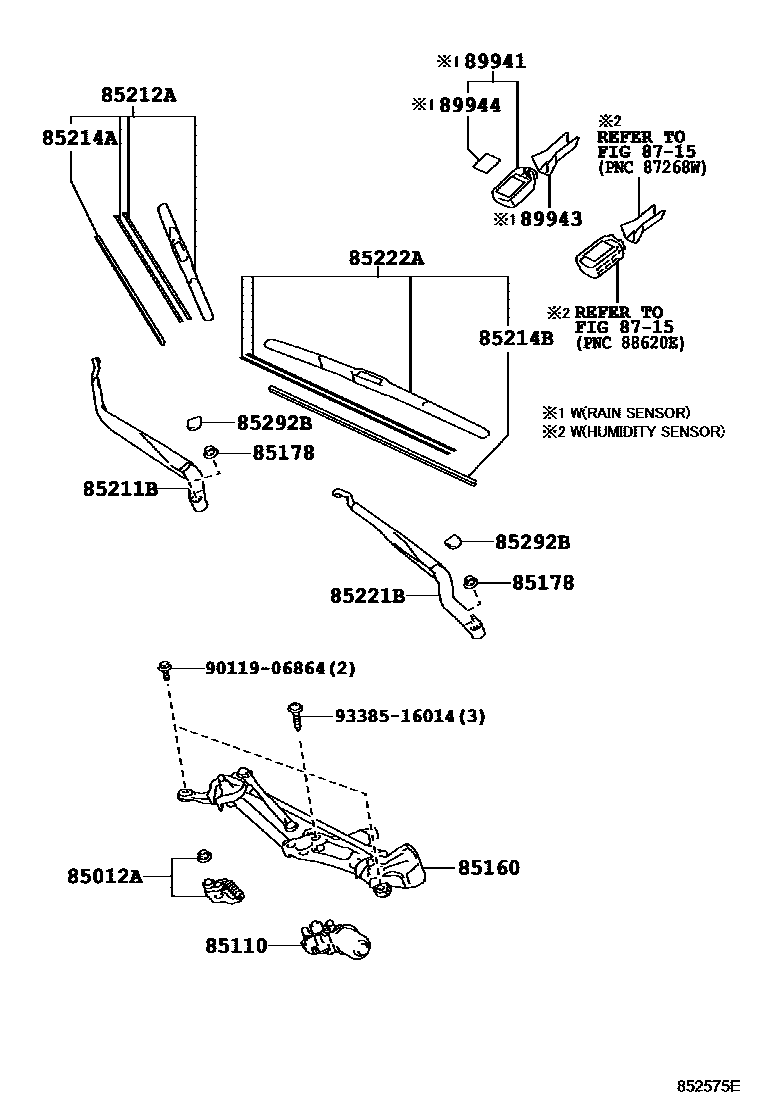

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010i201312-202105

main85012-58030i201312-202108

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28250i201505-202105

main85110-76030i201312-201504

main85110-48230supersedes 85110-76020i201505-202108

NEW ZEALAND SPEC

main85110-76010supersedes 85110-76020i201312-201504

NEW ZEALAND SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-76020i201012-201312

main85150-76030i201312-202105

main85150-76010supersedes 85150-76040i201312-202108

NEW ZEALAND SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i201312-202105

85211BARM, FRONT WIPER, RH

main85211-76010i201312-202108

main85211-76030i201312-202105

85212ABLADE, FR WIPER, RH

main85212-74010i201012-201312

main85212-76010i201312-202108

85214ARUBBER, WIPER, RH

main85214-30400i201312-202105

main85214-68020i201312-202108

85214BRUBBER, WIPER, LH

main85214-30400i201312-202108

main85214-68020i201312-202105

85221BARM, FRONT WIPER, LH

main85221-76010i201312-202108

main85221-76020i201012-201312

main85221-76030i201312-202105

BEIJING SPEC

85222ABLADE, FR WIPER, LH

main85222-30590i201312-202108

main85222-76010i201012-201312

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201312-202105

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

89941SENSOR, RAIN

main89941-42010i201312-201903

89943COVER, RAIN SENSOR

main89943-76010i201312-201903

main89943-22030i201708-201904

F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM & DVD & EMV & 10SPEAKER; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH; VERSION L&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM & DVD & EMV & 10SPEAKER; VERSION L&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH

89944TAPE, RAIN SENSOR

main89944-42010i201312-201903

9011906864

main90119-06864

9338516014

main93385-16014

17 parts on this diagram · 2 diagrams in section
