AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47010iZWA10..B..CHI201012-202108

89170ACOMPUTER ASSY, AIRBAG

main89170-76040iZWA10201012-201208

main89170-76081iZWA10..CHI201312-201708

main89170-76120iZWA10201107-201204

main89170-76180iZWA10201208-201708

main89170-76200iZWA10..ARL201312-201708

main89170-76260iZWA10..GCC201708-202007

main89170-76280iZWA10..ARL201708-202108

main89170-76290iZWA10..CHI201708-202008

main89170-76530iZWA10..CHI202008-202105

89173ASENSOR, AIRBAG, FRONT RH

main89173-49465iZWA10201107-201204

main89173-79025iZWA10201012-201708

main89173-79095iZWA10..E;ZWA10..ARL,GCC201708-202108

89174ASENSOR, AIRBAG, FRONT LH

main89173-49465iZWA10201107-201204

main89173-79025iZWA10201012-201708

main89173-79095iZWA10..B..CHI201708-202108

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iZWA10201012-202108

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZWA10201107-201204

main89831-28060iZWA10..B..CHI201708-202108

main89831-75010iZWA10201012-201708

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZWA10201107-201204

main89831-28060iZWA10..B..CHI201708-202108

main89831-75010iZWA10201012-201708

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-12020iZWA10201107-201204

main89831-75020iZWA10201012-201708

main89831-78020iZWA10..B..CHI201708-202108

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-12020iZWA10201107-201204

main89831-75020iZWA10201012-201708

main89831-78020iZWA10..B..CHI201708-202108

9011908C89

main90119-08C89

91553A0625

main91553-A0625

9413060600

main94130-60600

9415180600

main94151-80600

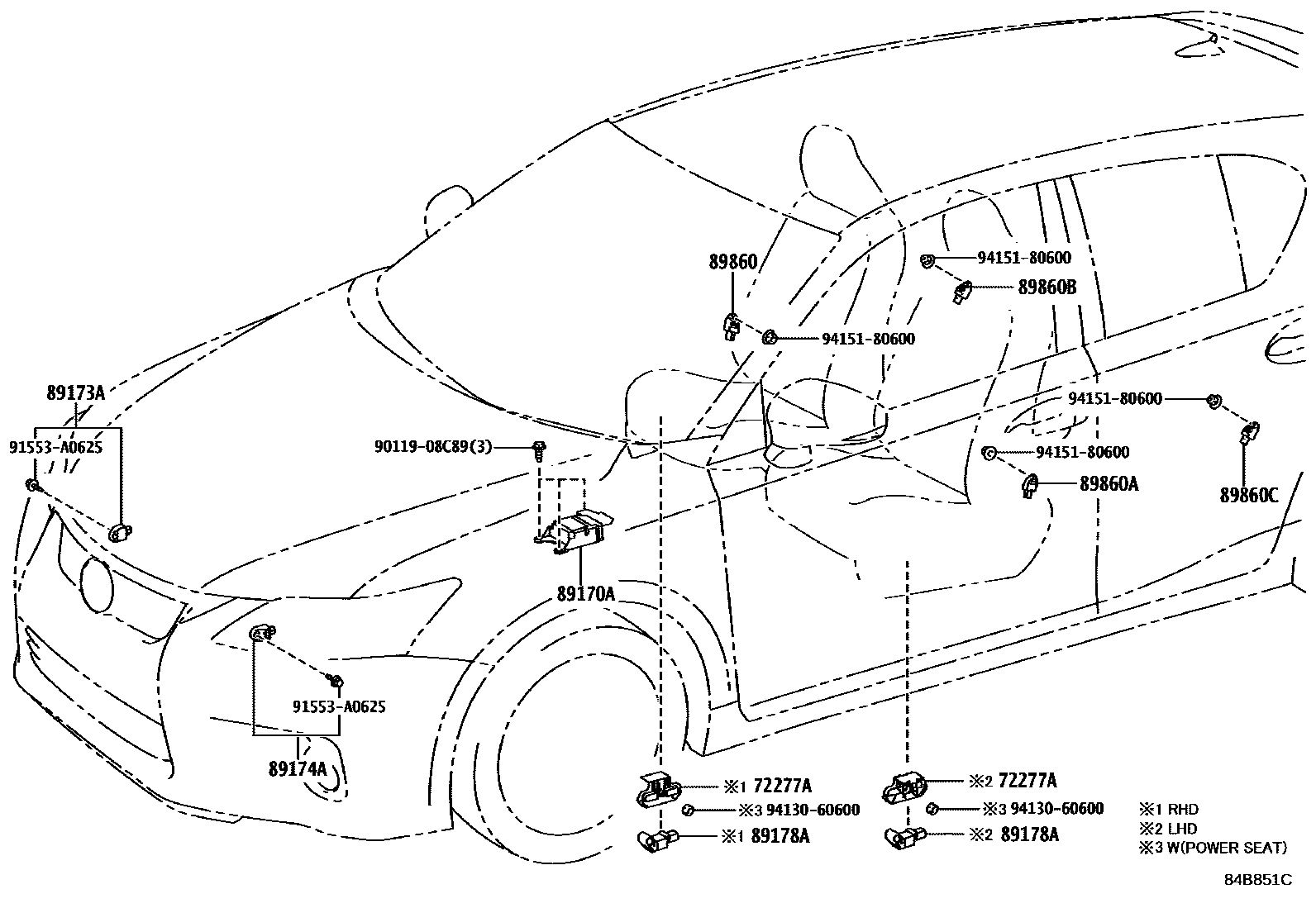

13 parts on this diagram · 1 diagram in section
