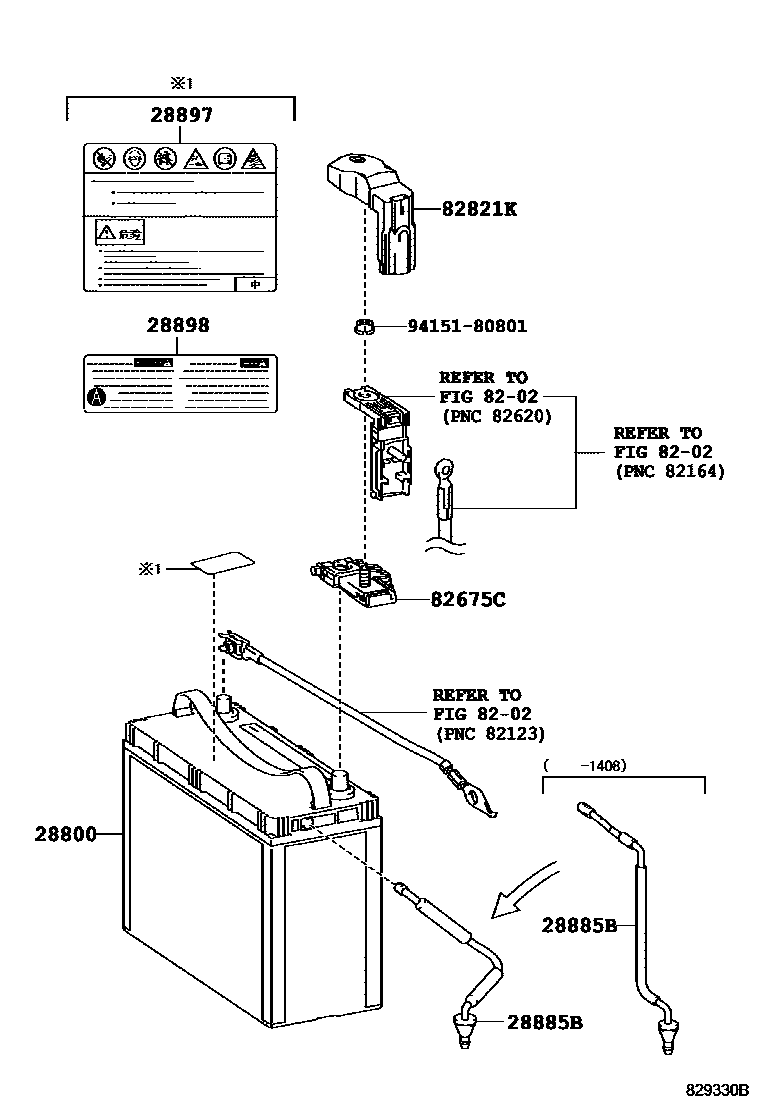

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21171i2ZRFXE..ZWA10201012-201312

S46B24R

main28800-21181i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

S34B20R

28885BHOSE, BATTERY

main28885-37020i2ZRFXE..ZWA10201012-201312

main28885-37090i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201408-202108

28897PLATE, BATTERY CAUTION

main28897-21010i5ZRFXE..ZWA10201312-202105

28898PLATE, BATTERY

main28897-36030i2ZRFXE..ZWA10..GCC201606-202007

8202WIRING & CLAMP

→ Go to FIG 82-02

82675CTERMINAL, JUNCTION

main82675-76010iZWA10..B..CHI201312-202105

82821KCOVER, CONNECTOR

main82821-47110iZWA10..ARL201312-201408

main82821-76050iZWA10..ARL201408-202108

9415180801

main94151-80801

8 parts on this diagram · 4 diagrams in section
