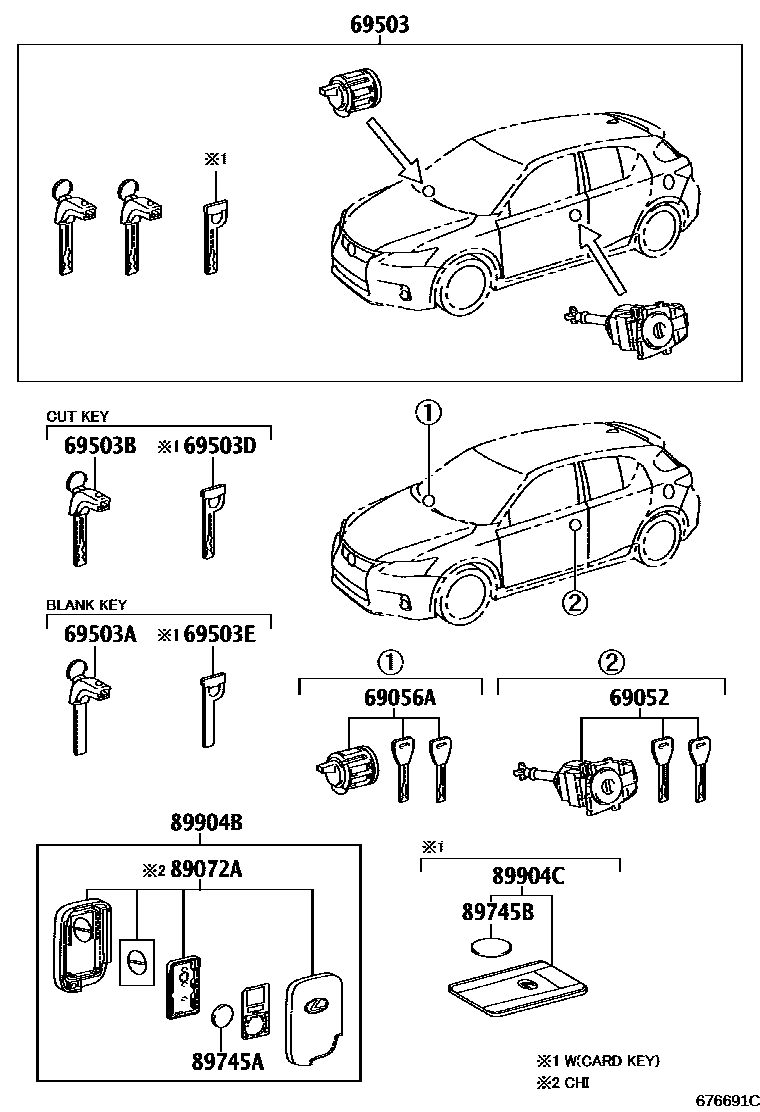

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-76010iZWA10..LHD201012-202105

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iZWA10201012-202108

69503CYLINDER SET, LOCK

main69005-76010iZWA10..ARL201312-202108

main69005-76030iZWA10201012-202105

69503AKEY, BLANK

main69515-50260iZWA10201012-202105

BLANK KEY

69503BKEY, CUT

main69515-50240iZWA10..E;ZWA10..ARL,GCC201012-202108

MASTER KEY

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-50270iZWA10201012-202108

BLANK KEY

sub69515-30350

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-48710iZWA10..ARL201312-202108

main89072-48791iZWA10..CHI201312-202105

89745ABATTERY, TRANSMITTER

main89745-52020iZWA10..B..CHI201312-202108

main89745-52030iZWA10..GCC201012-202007

89745BBATTERY, TRANSMITTER(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48481iZWA10..ARL201312-202108

main89904-48582iZWA10..CHI201312-202105

main89904-76020iZWA10201012-201209

sub89904-76021

main89904-76021iZWA10201210-202007

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

12 parts on this diagram · 2 diagrams in section
