FRONT BUMPER & BUMPER STAY

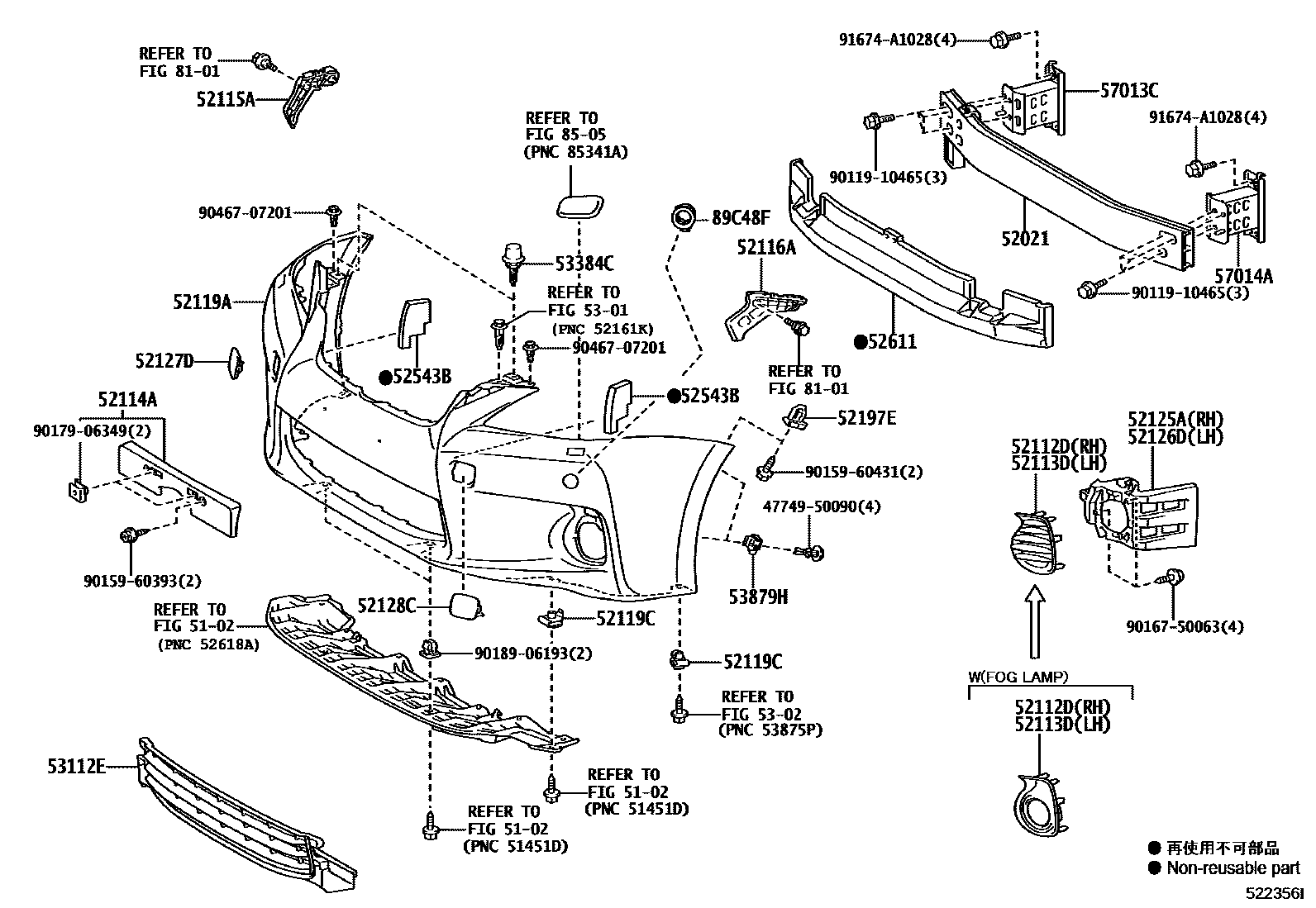

Parts diagram
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-76010i201012-201312
main52021-76080i201312-202105
52112DEXTENSION, FRONT BUMPER, RH
main52112-76050i201312-201708
main52112-76010supersedes 52112-76020i201012-201312
NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52112-76030i201108-201312
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52112-76040i201312-201708
FRONT FOG LAMP-WITH(BULB); FRONT FOG LAMP-WITH(LED)
main52112-76060i201312-201708
FRONT FOG LAMP-WITH(BULB) & F SPORT; FRONT FOG LAMP-WITH(LED) & F SPORT
main52112-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52113DEXTENSION, FRONT BUMPER, LH
main52113-76050i201312-201708
main52113-76010supersedes 52113-76020i201012-201312
NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52113-76030i201108-201312
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52113-76040i201312-201708
FRONT FOG LAMP-WITH(BULB); FRONT FOG LAMP-WITH(LED)
main52113-76060i201312-201708
FRONT FOG LAMP-WITH(BULB) & F SPORT; FRONT FOG LAMP-WITH(LED) & F SPORT
main52113-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-76020i201012-201312
main52114-76050i201312-202007
main52114-76100i201508-201708
main52114-76200i201708-202105
main52114-76080i201312-201508
F SPORT
main52114-76110i201508-201708
F SPORT
main52114-76220supersedes 52114-76190i201708-202108
F SPORT
main52114-76230i201708-202105
F SPORT
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-76010i201012-201303
main52115-76011i201304-201312
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-76010i201012-201303
main52116-76011i201312-202108
52119ACOVER, FRONT BUMPER
main52119-76921i201312-201708
PAINT REQ.; PAINT REQ.,HEADLAMP-LED
main52119-76923i201312-201708
PAINT REQ.
main52119-76900supersedes 52119-76903i201012-201312
PAINT REQ.,HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76901supersedes 52119-76903i201012-201312
PAINT REQ.,HEAD LAMP-LED; PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
main52119-76902supersedes 52119-76903i201012-201312
PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76912i201108-201312
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76913i201108-201312
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH
main52119-76914i201108-201312
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76915i201108-201312
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
main52119-76920supersedes 52119-76903i201312-201506
PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76922i201312-201506
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76924i201312-201506
PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76925i201312-201708
PAINT REQ.,F SPORT
main52119-76926i201312-201506
PAINT REQ.,F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76927i201312-201708
PAINT REQ.,F SPORT&HEADLAMP-LED
main52119-76931i201508-201708
PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76934i201508-201708
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76937i201508-201708
PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76940i201508-201708
PAINT REQ.,F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76942i201506-201508
PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76944i201506-201508
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76946i201506-201508
PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76948i201506-201508
PAINT REQ.,F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76950supersedes 52119-76949i201708-202105
F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); HEADLAMP-LED; VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main52119-76952i201708-202108
CLEARANCE & BACK SONAR-WITH
main52119-76955supersedes 52119-76949i201708-202105
F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH; HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH; VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH
main52119-76957i201708-202108
F SPORT
main52119-76958i201708-202108
F SPORT&HEADLAMP-LED; F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main52119-76960i201708-202108
F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76963i201708-202108
F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH; F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-WY900i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-WY901i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH
main52119-WY902i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52119-WY903i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
52119CCLIP, FRONT BUMPER COVER
main90467-05114×4i201312-202108
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-76010i201012-201312
main52125-76030i201312-202108
main52125-76020i201108-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52125-WY010i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52126DBRACKET, FOG LAMP MOUNTING, LH
main52126-76010i201012-201312
main52126-76030i201312-202108
main52126-76020i201108-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52126-WY010i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-76901i201012-201312
main52127-76904i201312-201708
F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH; F SPORT&HEADLAMP-LED; F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH; HEADLAMP-LED; HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52127-76902i201108-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52127-WY901i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52128CCOVER, FRONT BUMPER HOLE, LH
main52128-76901i201012-201312
main52128-76904i201312-201708
F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH; F SPORT&HEADLAMP-LED; F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH; HEADLAMP-LED; HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
main52128-76902i201108-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main52128-WY901i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52197EBRACKET, FRONT BUMPER SEAL
main52197-30040×2i201312-202105
52543BSEAL, FRONT BUMPER
main52543-76010×2i201312-202105
52611ABSORBER, FRONT BUMPER ENERGY
main52611-76010i201012-201312
main52611-76040i201312-202105
5301RADIATOR GRILLE
→ Go to FIG 53-01
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
53112EGRILLE, RADIATOR, LOWER NO.1
main53102-76060i201708-201903
main53112-76010i201012-201312
NO PAINT REQ.
main53112-76070i201312-201508
main53112-76090i201312-201508
main53112-76170i201508-201708
main53112-76180i201508-201708
main53102-76090supersedes 53102-76030i201708-202108
F SPORT; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53102-76100supersedes 53102-76050i201708-202105
F SPORT; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-76040i201108-201312
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main53112-76110i201312-201508
F SPORT; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-76190i201508-201708
F SPORT; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-76210i201504-201507
NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE); NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT)
main53112-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
53384CCUSHION, HOOD, CENTER
main53384-75010×2i201312-202108
53879HRETAINER, FRONT FENDER LINER
main53879-30040×4i201012-201312
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
main57013-76010i201312-202105
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
main57014-76010i201012-201312
8101HEADLAMP
→ Go to FIG 81-01
8505HEADLAMP CLEANER
→ Go to FIG 85-05
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
main89348-30030-A0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89348-30030-A5×2i201208-201312
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
main89348-30030-B0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
main89348-30030-B6×2i201208-201312
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4
main89348-30030-B8×2i201108-201208
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89348-30030-C0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89348-30030-C1×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
main89348-30030-D2×2i201108-201312
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89348-30030-E1×2i201108-201312
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89348-30030-F0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
main89348-30030-J5×2i201108-201208
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89348-30030-J6×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89348-33110×2i201312-201508
CLEARANCE & BACK SONAR-WITH
main89348-64020-A1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89348-64020-B2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89348-64020-B6×2i201012-201107
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
main89348-64020-C1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89348-64020-C2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
main89348-64020-D0×2i201012-201107
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89348-64020-E1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89348-64020-F0×2i201012-201107
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
main89348-64020-J1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89348-64020-J2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89348-78020×2i201508-202108
CLEARANCE & BACK SONAR-WITH
4774950090CLIP, PIN HOLD
main47749-50090
9011910465
main90119-10465
9015960393
main90159-60393
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018906193
main90189-06193
9046707201
main90467-07201
91674A1028
main91674-A1028

35 parts on this diagram · 6 diagrams in section
