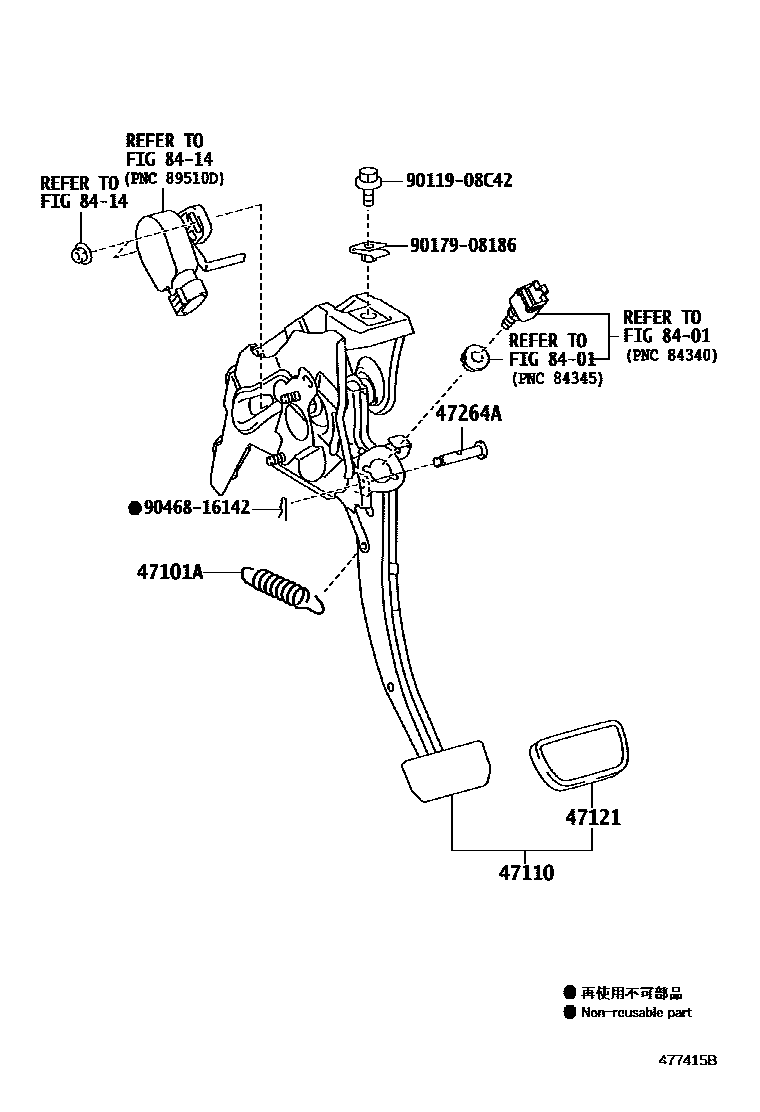

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZWA10..B..CHI201312-202105

47110SUPPORT ASSY, BRAKE PEDAL

main47110-76060iZWA10..LHD201312-202105

main47110-76070supersedes 47110-76050iZWA10..ARL201312-202108

F SPORT

main47110-76080iZWA10..B..CHI201312-202105

F SPORT

47121PAD, BRAKE PEDAL

main47121-50020iZWA10..E;ZWA10..ARL,GCC201312-202108

main47121-53010supersedes 47121-50020iZWA10..B..CHI201312-202105

F SPORT

47264APIN(FOR PUSH ROD)

main47148-47020iZWA10..E;ZWA10..ARL,GCC201312-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9017908186

main90179-08186

9046816142

main90468-16142

9 parts on this diagram · 2 diagrams in section
