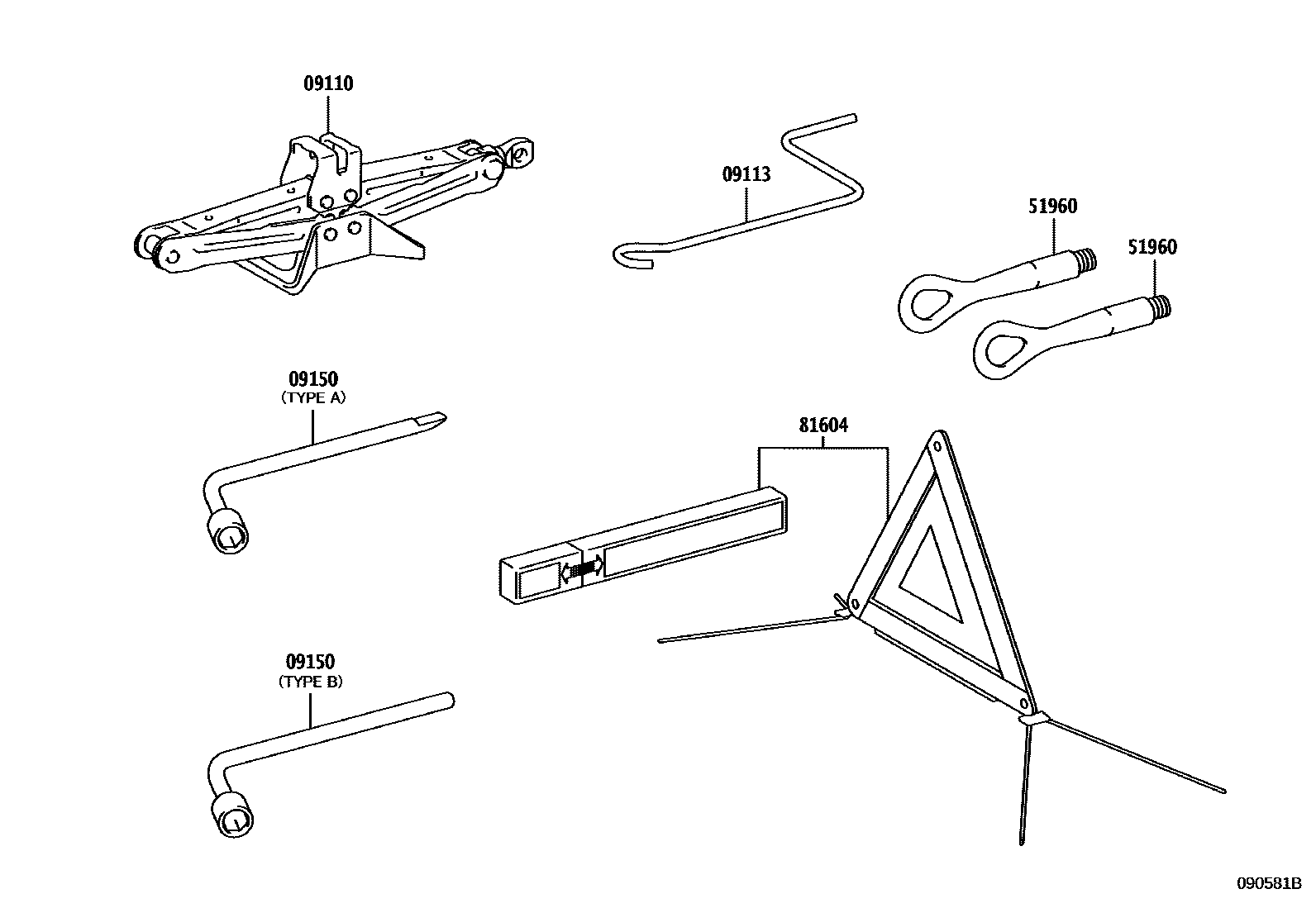

STANDARD TOOL

09110JACK ASSY

main09110-76010iZWA10..ARL201312-201512

sub09110-76011

main09110-76011iZWA10..ARL201601-202108

main09111-33030iZWA10201012-201512

sub09111-76010

main09111-76010iZWA10..LHD201601-202105

sub09111-76011

09113HANDLE, JACK

main09113-52030iZWA10201012-201111

main09113-52031iZWA10201112-202108

09150WRENCH, HUB NUT BOX

main09150-48010iZWA10201012-201208

TYPE B:REFER ILLUST.

main09150-76010iZWA10..E201312-201903

TYPE A:REFER ILLUST.

main09150-76020iZWA10201208-202108

TYPE B:REFER ILLUST.

51960HOOK ASSY, FRONT

main51961-50040iZWA10201012-201205

sub51961-50042

main51961-50042iZWA10201205-202108

81604REFLECTOR SET, TRIANGLE

main81604-78010iZWA10..CHI201804-202105

5 parts on this diagram · 1 diagram in section
