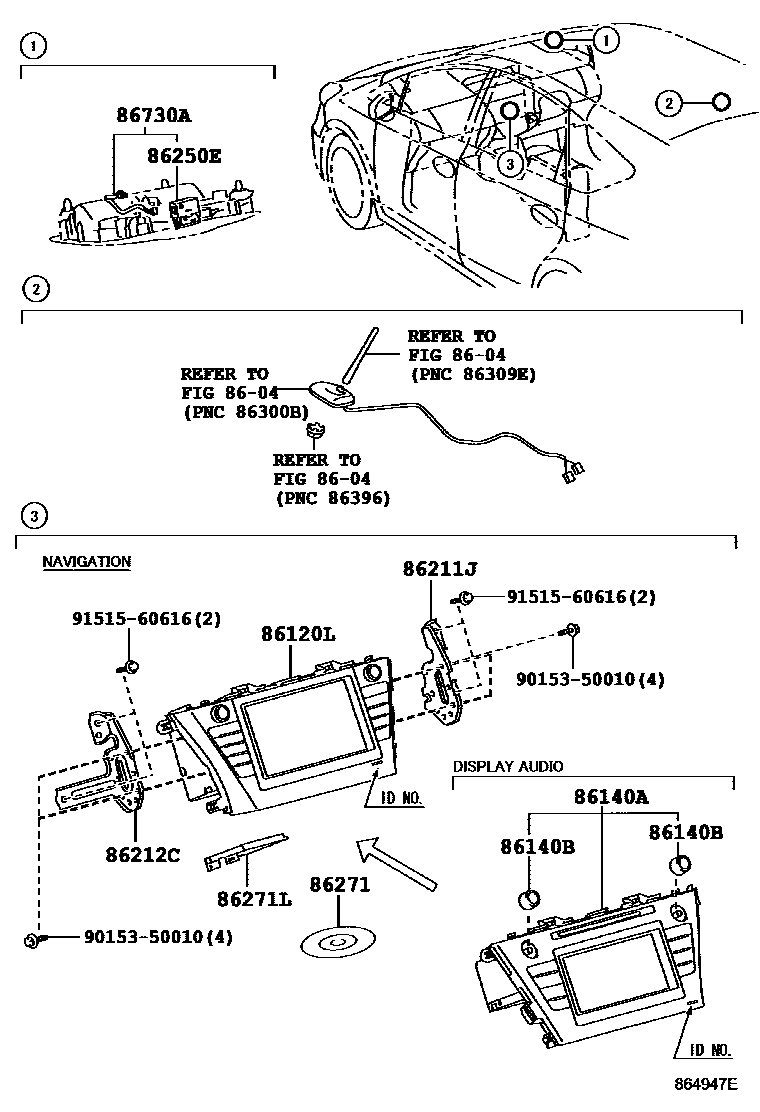

NAVIGATION & FRONT MONITOR DISPLAY
8604
86120LRECEIVER ASSY, NAVIGATION
FUJITSU TEN,ID100458
FUJITSU TEN,ID100049,AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
86140ARECEIVER ASSY, RADIO & DISPLAY
FUJITSU TEN,ID100484
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
86211JBRACKET, RADIO RECEIVER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86250EMICROPHONE ASSY, AMPLIFIER
86271DISC, DISC PLAYER
sub86271-0E177
AUDIO-AVN & JBL & 8SPEAKER & *BT
sub86271-0E172
AUDIO-AVN & JBL & 8SPEAKER & *BT
sub86271-0E173
AUDIO-AVN & JBL & 8SPEAKER & *BT
sub86271-0E174
AUDIO-AVN & JBL & 8SPEAKER & *BT
sub86271-0E175
AUDIO-AVN & JBL & 8SPEAKER & *BT
sub86271-0E176
AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
sub86807-06011
AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
sub86807-06012
AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
sub86807-06010
86271LHARD DISC
86730AMICROPHONE ASSY, TELEPHONE
9015350010
main90153-50010
9151560616
main91515-60616
12 parts on this diagram · 2 diagrams in section
