SPEAKER

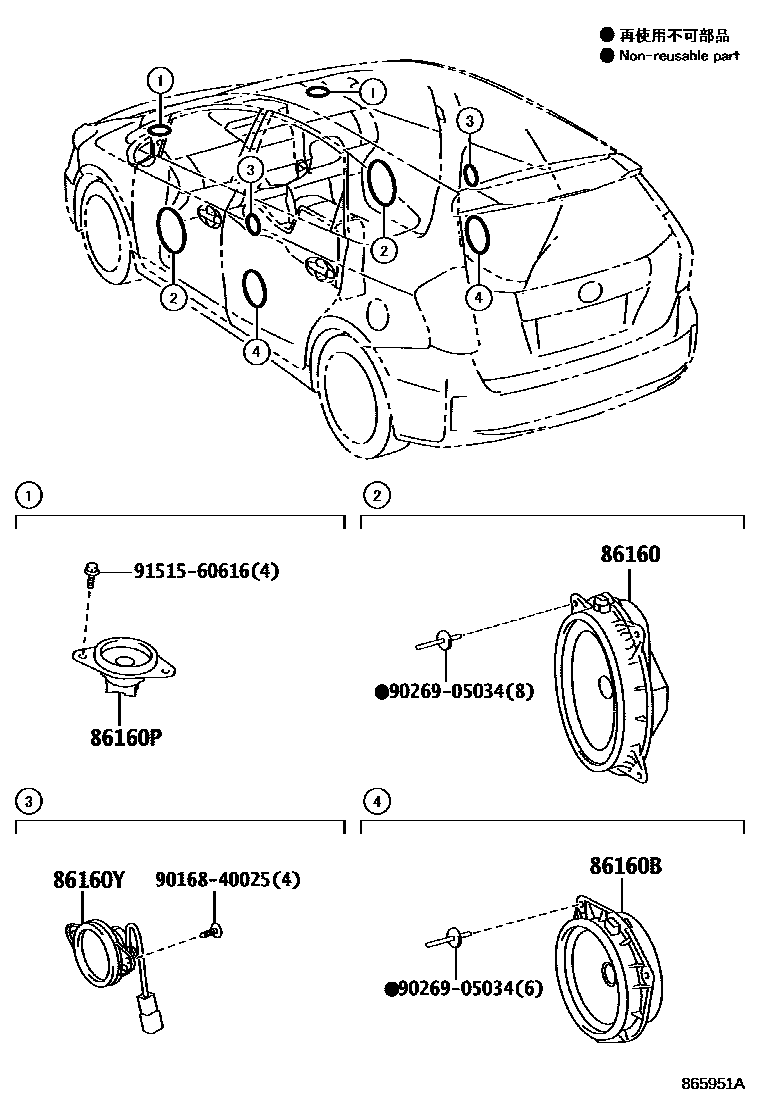

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-47190×2supersedes 86160-58240i202008-202108
main86160-0WV50×2supersedes 86160-58240i201504-201508
AUDIO-AVN & JBL & 8SPEAKER & *BT
86160BSPEAKER ASSY, REAR
main86160-47210×2supersedes 86160-52331i202008-202108
main86160-0WV60×2supersedes 86160-52330i201504-201508
AUDIO-AVN & JBL & 8SPEAKER & *BT
86160PSPEAKER ASSY, FRONT NO.2
main86160-47200×2supersedes 86160-47070i202008-202108
main86160-0WV70×2supersedes 86160-47070i201203-201504
AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
86160YSPEAKER ASSY, REAR NO.2
main86160-47220×2i202008-202108
main86160-0WU30×2i201203-201504
AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
9016840025
9026905034
9151560616

7 parts on this diagram · 1 diagram in section
