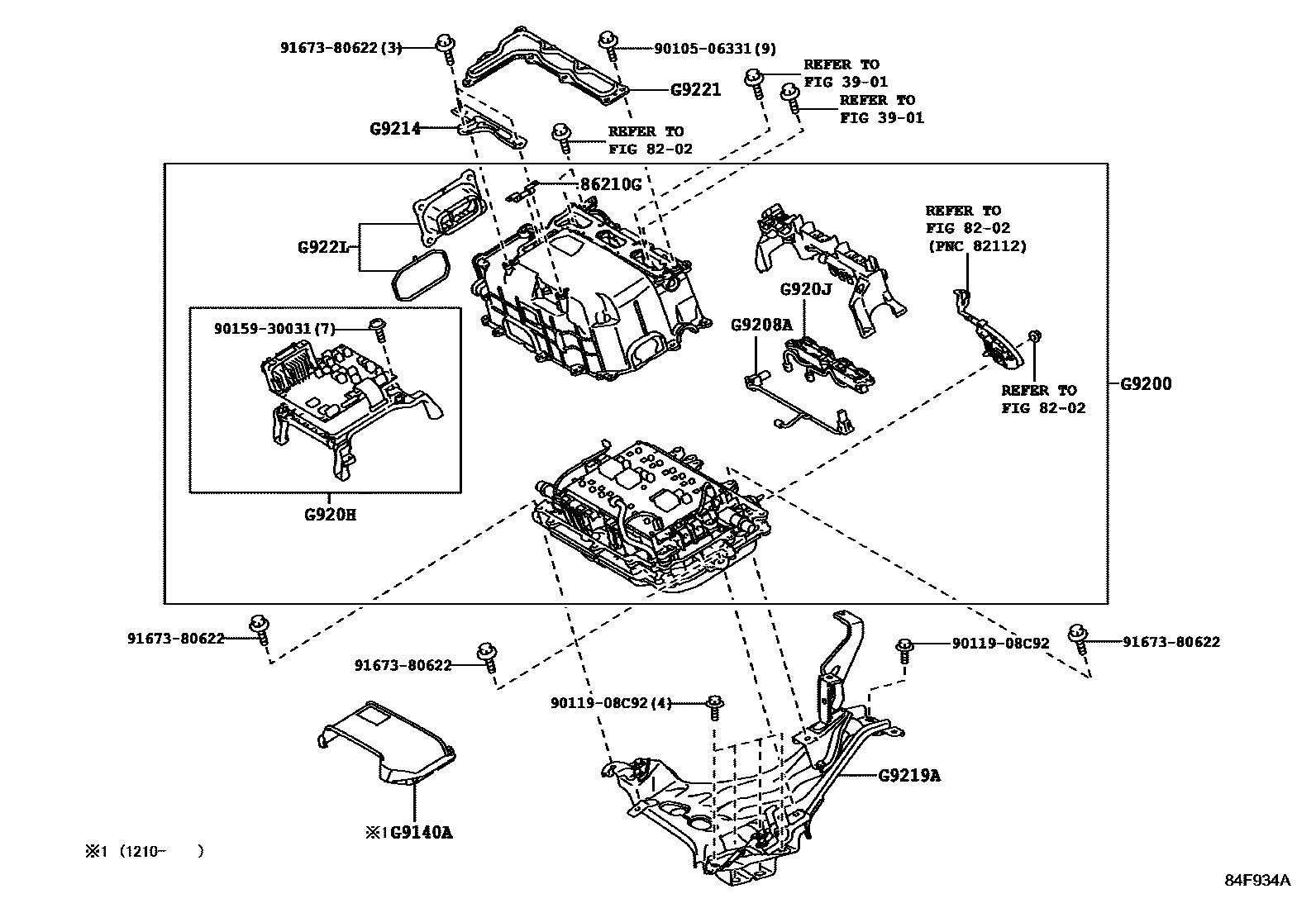

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iZVW40201203-201504

G9140ACOVER ASSY, INVERTER, LH

mainG914047010iZVW40201210-201504

G9200INVERTER ASSY, W/CONVERTER

mainG920029015iZVW40201504-202108

mainG920049035iZVW40201203-201208

mainG920049055iZVW40201208-201504

subG9200-49056

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZVW40201504-202108

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47040iZVW40201203-201504

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZVW40201203-201504

G9214BRACKET, INVERTER, NO.1

mainG921447050iZVW40201203-201308

mainG921447060iZVW40201309-201504

G9219ABRACKET, INVERTER TRAY

mainG911047011iZVW40201203-201308

mainG911047030iZVW40201309-201504

G9221COVER, INVERTER

mainG902247041iZVW40201203-201504

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZVW40201203-201504

9010506331

main90105-06331

9011908C92

main90119-08C92

9015930031

main90159-30031

9167380622

main91673-80622

16 parts on this diagram · 3 diagrams in section
